SecurityEventHandler Class Reference

Minimal security event handler for BLE examples. More...

#include <security_event_handler.hpp>

Inheritance diagram for SecurityEventHandler:

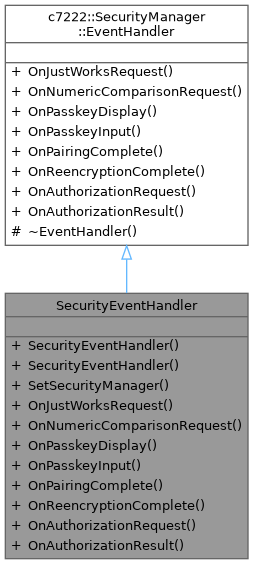

Collaboration diagram for SecurityEventHandler:

Public Member Functions
	SecurityEventHandler (c7222::SecurityManager *security_manager)
	Construct with an optional SecurityManager pointer.
	SecurityEventHandler ()=default
	Default constructor (manager can be set later).
void	SetSecurityManager (c7222::SecurityManager *security_manager)
	Attach a SecurityManager after construction.
void	OnJustWorksRequest (c7222::ConnectionHandle con_handle) const override
	Handle "Just Works" pairing request.
void	OnNumericComparisonRequest (c7222::ConnectionHandle con_handle, uint32_t number) const override
	Handle numeric comparison pairing request.
void	OnPasskeyDisplay (c7222::ConnectionHandle con_handle, uint32_t passkey) const override
	Handle passkey display event.
void	OnPasskeyInput (c7222::ConnectionHandle con_handle) const override
	Handle passkey input request.
void	OnPairingComplete (c7222::ConnectionHandle con_handle, c7222::SecurityManager::PairingStatus status, uint8_t status_code) const override
	Handle pairing completion event.
void	OnReencryptionComplete (c7222::ConnectionHandle con_handle, uint8_t status) const override
	Handle reencryption completion event.
void	OnAuthorizationRequest (c7222::ConnectionHandle con_handle) const override
	Handle authorization request for a connection.
void	OnAuthorizationResult (c7222::ConnectionHandle con_handle, c7222::SecurityManager::AuthorizationResult result) const override
	Handle authorization result event.

Additional Inherited Members
Protected Member Functions inherited from c7222::SecurityManager::EventHandler
	~EventHandler ()=default

Detailed Description

Minimal security event handler for BLE examples.

The implementation intentionally keeps policies simple and explicit to make debugging easier in a teaching environment.

The stored SecurityManager instance is used to:

• Confirm Just Works pairing requests.
• Confirm numeric comparison requests.
• Provide a fixed passkey for input requests.
• Grant authorization on request.

Constructor & Destructor Documentation

SecurityEventHandler() [1/2]

SecurityEventHandler::SecurityEventHandler ( c7222::SecurityManager *  security_manager )

inlineexplicit

Construct with an optional SecurityManager pointer.

Parameters

security_manager

Security manager used for confirmations and authorization.

SecurityEventHandler() [2/2]

SecurityEventHandler::SecurityEventHandler ( )

default

Default constructor (manager can be set later).

Member Function Documentation

OnAuthorizationRequest()

void SecurityEventHandler::OnAuthorizationRequest ( c7222::ConnectionHandle  con_handle ) const

overridevirtual

Handle authorization request for a connection.

Logs the request and grants authorization in the example implementation.

Reimplemented from c7222::SecurityManager::EventHandler.

Here is the call graph for this function:

OnAuthorizationResult()

void SecurityEventHandler::OnAuthorizationResult ( c7222::ConnectionHandle  con_handle, c7222::SecurityManager::AuthorizationResult  result  ) const

overridevirtual

Handle authorization result event.

Logs the authorization outcome.

Reimplemented from c7222::SecurityManager::EventHandler.

OnJustWorksRequest()

void SecurityEventHandler::OnJustWorksRequest ( c7222::ConnectionHandle  con_handle ) const

overridevirtual

Handle "Just Works" pairing request.

Logs the event and auto-confirms if a SecurityManager is available.

Reimplemented from c7222::SecurityManager::EventHandler.

Here is the call graph for this function:

OnNumericComparisonRequest()

void SecurityEventHandler::OnNumericComparisonRequest ( c7222::ConnectionHandle  con_handle, uint32_t  number  ) const

overridevirtual

Handle numeric comparison pairing request.

Logs the number and auto-confirms if a SecurityManager is available.

Reimplemented from c7222::SecurityManager::EventHandler.

Here is the call graph for this function:

OnPairingComplete()

void SecurityEventHandler::OnPairingComplete ( c7222::ConnectionHandle  con_handle, c7222::SecurityManager::PairingStatus  status, uint8_t  status_code  ) const

overridevirtual

Handle pairing completion event.

Logs the final pairing status and status code.

Reimplemented from c7222::SecurityManager::EventHandler.

OnPasskeyDisplay()

void SecurityEventHandler::OnPasskeyDisplay ( c7222::ConnectionHandle  con_handle, uint32_t  passkey  ) const

overridevirtual

Handle passkey display event.

Logs the passkey for user confirmation.

Reimplemented from c7222::SecurityManager::EventHandler.

OnPasskeyInput()

void SecurityEventHandler::OnPasskeyInput ( c7222::ConnectionHandle  con_handle ) const

overridevirtual

Handle passkey input request.

Logs the request and provides a fixed passkey (123456) in the example implementation.

Reimplemented from c7222::SecurityManager::EventHandler.

Here is the call graph for this function:

OnReencryptionComplete()

void SecurityEventHandler::OnReencryptionComplete ( c7222::ConnectionHandle  con_handle, uint8_t  status  ) const

overridevirtual

Handle reencryption completion event.

Logs status for debugging link security changes.

Reimplemented from c7222::SecurityManager::EventHandler.

SetSecurityManager()

void SecurityEventHandler::SetSecurityManager ( c7222::SecurityManager *  security_manager )

inline

Attach a SecurityManager after construction.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• libs/elec_c7222/examples/ble/common/security_event_handler.hpp
• libs/elec_c7222/examples/ble/common/security_event_handler.cpp
