Builder for assembling a complete advertising payload. More...

#include <advertisement_data.hpp>

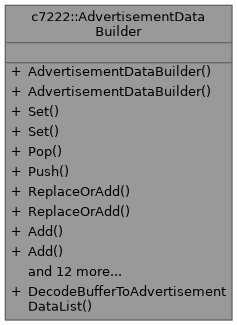

Collaboration diagram for c7222::AdvertisementDataBuilder:

Public Member Functions
	AdvertisementDataBuilder ()
	Create an empty builder.

	AdvertisementDataBuilder (const std::list< AdvertisementData > &ads)
	Create a builder from a list of AD structures.

bool	Set (const std::list< AdvertisementData > &ads)
	ReplaceOrAdd the payload with a list of AD structures.

bool	Set (const uint8_t *data, size_t size)
	ReplaceOrAdd the payload from a raw advertising buffer.

bool	Pop ()
	Remove the last AD structure from the payload.

bool	Push (const AdvertisementData &ad)
	Add an AD structure to the payload.

void	ReplaceOrAdd (const AdvertisementData &ad)
	ReplaceOrAdd the AD structure with the same type.

void	ReplaceOrAdd (AdvertisementData &&ad)
	ReplaceOrAdd the AD structure with the same type (move).

bool	Add (const std::list< AdvertisementData > &ads)
	Add a list of AD structures to the payload.

bool	Add (const AdvertisementData &ad)
	Add an AD structure to the payload.

const std::vector< uint8_t > &	data () const
	Return the raw advertising payload bytes.

const uint8_t *	bytes () const
	Return a raw pointer to the advertising payload bytes.

size_t	size () const
	Return the total payload size in bytes.

void	Clear ()
	Clear all stored AD structures.

AdvertisementDataBuilder &	operator+= (const AdvertisementData &ad)
	Add an AD structure and enforce uniqueness.

AdvertisementDataBuilder	operator+ (const AdvertisementData &ad)
	Return a builder with an additional AD structure.

AdvertisementDataBuilder &	operator+= (const AdvertisementDataBuilder &adb)
	Merge another builder into this one, enforcing uniqueness.

AdvertisementDataBuilder	operator+ (const AdvertisementDataBuilder &adb)
	Return a builder that is the merge of two builders.

bool	operator== (const AdvertisementDataBuilder &other) const
	Compare two builders by payload or list contents.

bool	Validate () const
	Validate the assembled payload.

bool	Build ()
	Build the raw payload from stored AD structures.

const std::list< AdvertisementData > &	advertisement_data_list () const
	Decode the payload into a list of AD structures.

Static Public Member Functions
static std::list< AdvertisementData >	DecodeBufferToAdvertisementDataList (const uint8_t *adv_data, size_t adv_data_size)
	Decode a raw advertising payload buffer into a list of AD structures.

Friends
std::ostream &	operator<< (std::ostream &os, const AdvertisementDataBuilder &adb)
	Stream the builder payload for logging/debugging.

Detailed Description

Builder for assembling a complete advertising payload.

Use this class when you want to compose multiple AD structures into a single legacy advertising payload. The builder enforces the 31-byte limit on insert.

Constructor & Destructor Documentation

◆ AdvertisementDataBuilder() [1/2]

c7222::AdvertisementDataBuilder::AdvertisementDataBuilder ( )

Create an empty builder.

◆ AdvertisementDataBuilder() [2/2]

c7222::AdvertisementDataBuilder::AdvertisementDataBuilder ( const std::list< AdvertisementData > & ads )

explicit

Create a builder from a list of AD structures.

The builder validates the resulting payload.

Parameters

ads	List of AD structures to add.

Member Function Documentation

◆ Add() [1/2]

bool c7222::AdvertisementDataBuilder::Add ( const AdvertisementData & ad )

Add an AD structure to the payload.

Fails if the addition would exceed 31 bytes.

Parameters

ad	AD structure to add.

Returns: true if added, false if the payload would overflow.

◆ Add() [2/2]

bool c7222::AdvertisementDataBuilder::Add ( const std::list< AdvertisementData > & ads )

Add a list of AD structures to the payload.

Parameters

ads	List of AD structures to add.

Returns: true if all structures were added, false if a structure would overflow.

◆ advertisement_data_list()

const std::list< AdvertisementData > & c7222::AdvertisementDataBuilder::advertisement_data_list ( ) const

inline

Decode the payload into a list of AD structures.

◆ Build()

bool c7222::AdvertisementDataBuilder::Build ( )

Build the raw payload from stored AD structures.

Sorts by type, assembles the payload, and validates the result.

Returns: true if the payload is valid, false otherwise.

Here is the caller graph for this function:

◆ bytes()

const uint8_t * c7222::AdvertisementDataBuilder::bytes ( ) const

Return a raw pointer to the advertising payload bytes.

◆ Clear()

void c7222::AdvertisementDataBuilder::Clear ( )

Clear all stored AD structures.

◆ data()

const std::vector< uint8_t > & c7222::AdvertisementDataBuilder::data ( ) const

Return the raw advertising payload bytes.

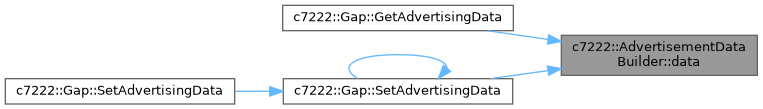

Here is the caller graph for this function:

◆ DecodeBufferToAdvertisementDataList()

static std::list< AdvertisementData > c7222::AdvertisementDataBuilder::DecodeBufferToAdvertisementDataList	(	const uint8_t *	adv_data,
		size_t	adv_data_size
	)

static

Decode a raw advertising payload buffer into a list of AD structures.

Parameters

adv_data	Pointer to raw advertising bytes.
adv_data_size	Total buffer size in bytes.

Returns: List of decoded AD structures.

◆ operator+() [1/2]

AdvertisementDataBuilder c7222::AdvertisementDataBuilder::operator+ ( const AdvertisementData & ad )

Return a builder with an additional AD structure.

Parameters

ad	AD structure to add.

Returns: Builder copy with the AD structure added.

◆ operator+() [2/2]

AdvertisementDataBuilder c7222::AdvertisementDataBuilder::operator+ ( const AdvertisementDataBuilder & adb )

Return a builder that is the merge of two builders.

Parameters

adb	Builder to merge in.

Returns: Merged builder copy.

◆ operator+=() [1/2]

AdvertisementDataBuilder & c7222::AdvertisementDataBuilder::operator+= ( const AdvertisementData & ad )

Add an AD structure and enforce uniqueness.

If an identical AD structure already exists, this asserts.

Parameters

ad	AD structure to add.

Returns: Reference to this builder.

◆ operator+=() [2/2]

AdvertisementDataBuilder & c7222::AdvertisementDataBuilder::operator+= ( const AdvertisementDataBuilder & adb )

Merge another builder into this one, enforcing uniqueness.

Parameters

adb	Builder to merge in.

Returns: Reference to this builder.

◆ operator==()

bool c7222::AdvertisementDataBuilder::operator== ( const AdvertisementDataBuilder & other ) const

Compare two builders by payload or list contents.

◆ Pop()

bool c7222::AdvertisementDataBuilder::Pop ( )

Remove the last AD structure from the payload.

Returns: true if an AD structure was removed, false if the payload is empty or invalid.

◆ Push()

bool c7222::AdvertisementDataBuilder::Push ( const AdvertisementData & ad )

Add an AD structure to the payload.

Parameters

ad	AD structure to add.

Returns: true if added, false if the payload would overflow.

◆ ReplaceOrAdd() [1/2]

void c7222::AdvertisementDataBuilder::ReplaceOrAdd ( AdvertisementData && ad )

ReplaceOrAdd the AD structure with the same type (move).

Parameters

ad	AD structure to replace in the list (moved).

◆ ReplaceOrAdd() [2/2]

void c7222::AdvertisementDataBuilder::ReplaceOrAdd ( const AdvertisementData & ad )

ReplaceOrAdd the AD structure with the same type.

Parameters

ad	AD structure to replace in the list.

◆ Set() [1/2]

bool c7222::AdvertisementDataBuilder::Set ( const std::list< AdvertisementData > & ads )

ReplaceOrAdd the payload with a list of AD structures.

Parameters

ads	List of AD structures to set.

Returns: true if all structures were added, false if a structure would overflow.

◆ Set() [2/2]

bool c7222::AdvertisementDataBuilder::Set	(	const uint8_t *	data,
		size_t	size
	)

ReplaceOrAdd the payload from a raw advertising buffer.

Parameters

data	Raw advertising bytes.
size	Total buffer size in bytes.

Returns: true if decoded and built successfully, false otherwise.

◆ size()

size_t c7222::AdvertisementDataBuilder::size ( ) const

Return the total payload size in bytes.

◆ Validate()

bool c7222::AdvertisementDataBuilder::Validate ( ) const

Validate the assembled payload.

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const AdvertisementDataBuilder &	adb
	)

friend

Stream the builder payload for logging/debugging.

The documentation for this class was generated from the following file:

libs/elec_c7222/ble/gap/include/advertisement_data.hpp
