Input-only GPIO wrapper intended for push-buttons. More...

#include <button.hpp>

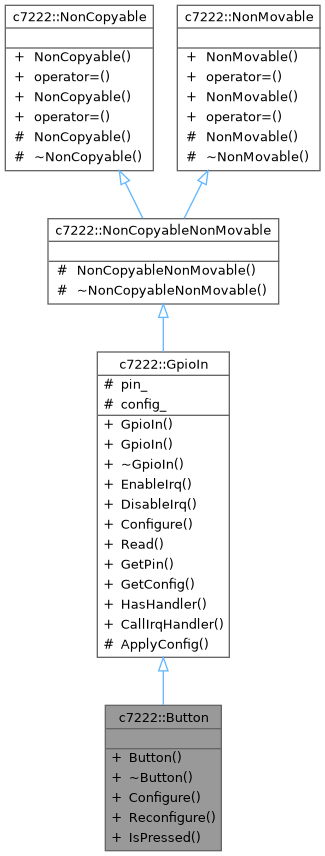

Inheritance diagram for c7222::Button:

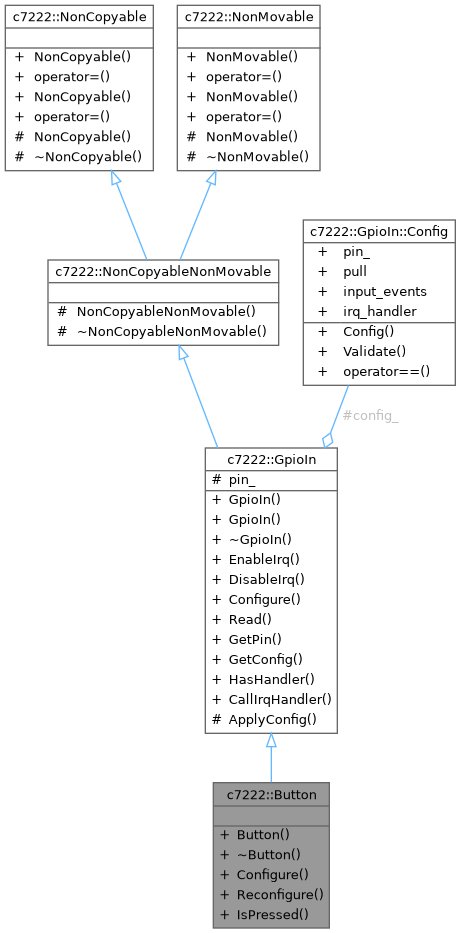

Collaboration diagram for c7222::Button:

Public Member Functions
	Button (uint32_t pin, GpioPullMode pull=GpioPullMode::PullUp)
	Construct a button pin in input mode.

virtual	~Button ()=default
	Destructor unregisters the button from the platform map.

void	Configure (const Config &config)=delete
	Disallow generic reconfiguration.

void	Reconfigure (GpioPullMode pull=GpioPullMode::PullUp)
	Reconfigure the button pull mode.

bool	IsPressed () const
	Return true if the button is currently pressed (active-low).

Public Member Functions inherited from c7222::GpioIn
	GpioIn (uint32_t pin)
	Create a GPIO input with default configuration.

	GpioIn (uint32_t pin, const Config &config)
	Create a GPIO input with the given configuration.

virtual	~GpioIn ()
	Destructor.

void	EnableIrq (GpioInputEvent events, std::function< void(uint32_t)> handler)
	Enable GPIO IRQs for the given event set and handler.

void	DisableIrq ()
	Disable any IRQs configured for this input.

void	Configure (const Config &config)
	Apply a new configuration.

bool	Read () const
	Read the current GPIO level.

uint32_t	GetPin () const
	Return the GPIO number.

Config	GetConfig () const
	Return the cached configuration.

bool	HasHandler () const
	Return true if an IRQ handler is currently registered.

void	CallIrqHandler (uint32_t events) const
	Invoke the registered IRQ handler (if any).

Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete

NonCopyable &	operator= (const NonCopyable &)=delete

	NonCopyable (NonCopyable &&)=default

NonCopyable &	operator= (NonCopyable &&)=default

Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default

NonMovable &	operator= (const NonMovable &)=default

	NonMovable (NonMovable &&)=delete

NonMovable &	operator= (NonMovable &&)=delete

Additional Inherited Members
Protected Member Functions inherited from c7222::GpioIn
void	ApplyConfig ()
	Apply internal configuration to the hardware.

Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default

	~NonCopyableNonMovable ()=default

Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default

	~NonCopyable ()=default

Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default

	~NonMovable ()=default

Protected Attributes inherited from c7222::GpioIn
uint32_t	pin_
	GPIO pin number managed by this instance.

Config	config_
	Cached configuration used to (re)apply platform settings.

Detailed Description

Input-only GPIO wrapper intended for push-buttons.

Design intent:

Input-only: derives from GpioIn and deletes Configure() to prevent reconfiguration into output mode.
Simple polling: IsPressed() provides a clear, easy-to-read API for beginners. IRQ support is still available through the inherited GpioIn API when more advanced usage is needed.

Wiring assumption (C7222 Pico W board):

Buttons are wired active-low with a pull-up, so a press produces a HIGH->LOW transition.
IsPressed() returns true when the logical state indicates a press and abstracts the active-low wiring from callers.

Reconfiguration note:

If the button pin was temporarily used for PWM, call Reconfigure() after releasing PWM ownership to restore input configuration.

Constructor & Destructor Documentation

◆ Button()

c7222::Button::Button	(	uint32_t	pin,
		GpioPullMode	pull = `GpioPullMode::PullUp`
	)

explicit

Construct a button pin in input mode.

Parameters

pin	GPIO number.
pull	Pull configuration (default: PullUp).

◆ ~Button()

virtual c7222::Button::~Button ( )

virtualdefault

Destructor unregisters the button from the platform map.

Member Function Documentation

◆ Configure()

void c7222::Button::Configure ( const Config & config )

delete

Disallow generic reconfiguration.

◆ IsPressed()

bool c7222::Button::IsPressed ( ) const

Return true if the button is currently pressed (active-low).

Here is the caller graph for this function:

◆ Reconfigure()

void c7222::Button::Reconfigure ( GpioPullMode pull = GpioPullMode::PullUp )

Reconfigure the button pull mode.

This is intended for cases where the pin was temporarily used for PWM and then returned to GPIO input control.
