c7222::FreeRtosBinarySemaphore Class Reference

Ownership-based wrapper for a FreeRTOS-style binary semaphore. More...

#include <freertos_semaphore.hpp>

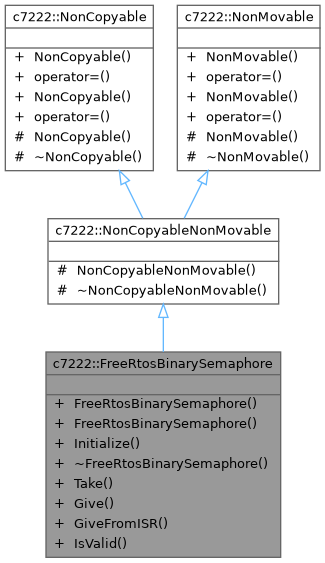

Inheritance diagram for c7222::FreeRtosBinarySemaphore:

Collaboration diagram for c7222::FreeRtosBinarySemaphore:

Public Member Functions
	FreeRtosBinarySemaphore ()=default
	Construct an uninitialized semaphore wrapper.
	FreeRtosBinarySemaphore (bool initially_given)
	Construct and initialize a binary semaphore.
bool	Initialize (bool initially_given=false)
	Initialize (or re-initialize) the semaphore.
	~FreeRtosBinarySemaphore ()
	Destroy semaphore resources if initialized.
bool	Take (std::uint32_t ticks_to_wait=0)
	Take the semaphore.
bool	Give ()
	Give the semaphore from task context.
bool	GiveFromISR ()
	Give the semaphore from ISR context.
bool	IsValid () const
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Ownership-based wrapper for a FreeRTOS-style binary semaphore.

Typical usage is event signaling between execution contexts (task-to-task or ISR-to-task). Unlike a mutex, binary semaphores do not provide ownership tracking or priority inheritance. Take/give is explicit.

Typical usage:

c7222::FreeRtosBinarySemaphore ready(false);

// Producer task/ISR:
(void)ready.Give();

// Consumer task:
if(ready.Take(50)) {
    // proceed after signal
}

Constructor & Destructor Documentation

FreeRtosBinarySemaphore() [1/2]

c7222::FreeRtosBinarySemaphore::FreeRtosBinarySemaphore ( )

default

Construct an uninitialized semaphore wrapper.

FreeRtosBinarySemaphore() [2/2]

c7222::FreeRtosBinarySemaphore::FreeRtosBinarySemaphore ( bool  initially_given )

explicit

Construct and initialize a binary semaphore.

Parameters

initially_given

If true, semaphore starts in the available state.

~FreeRtosBinarySemaphore()

c7222::FreeRtosBinarySemaphore::~FreeRtosBinarySemaphore

(

)

Destroy semaphore resources if initialized.

Member Function Documentation

Give()

bool c7222::FreeRtosBinarySemaphore::Give

(

)

Give the semaphore from task context.

Returns

true on success.

GiveFromISR()

bool c7222::FreeRtosBinarySemaphore::GiveFromISR

(

)

Give the semaphore from ISR context.

Returns

true on success.

Initialize()

bool c7222::FreeRtosBinarySemaphore::Initialize

(

bool

initially_given = false

)

Initialize (or re-initialize) the semaphore.

Parameters

initially_given

If true, semaphore starts in the available state.

Returns

true on success.

IsValid()

bool c7222::FreeRtosBinarySemaphore::IsValid

(

)

const

Returns

true if the wrapper owns a valid semaphore handle.

Take()

bool c7222::FreeRtosBinarySemaphore::Take

(

std::uint32_t

ticks_to_wait = 0

)

Take the semaphore.

Parameters

ticks_to_wait

Max ticks to wait (0 = non-blocking).

Returns

true if acquired.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/freertos_wrappers/include/freertos_semaphore.hpp
