c7222::FreeRtosCountingSemaphore Class Reference

Ownership-based wrapper for a FreeRTOS-style counting semaphore. More...

#include <freertos_semaphore.hpp>

Inheritance diagram for c7222::FreeRtosCountingSemaphore:

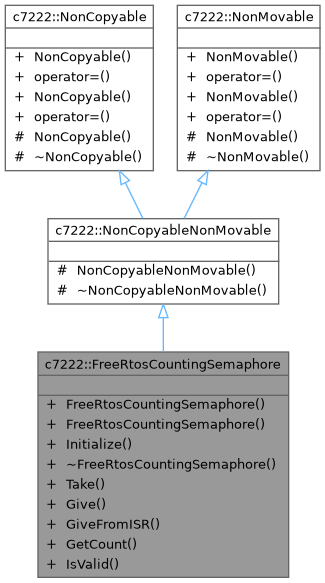

Collaboration diagram for c7222::FreeRtosCountingSemaphore:

Public Member Functions
	FreeRtosCountingSemaphore ()=default
	Construct an uninitialized counting semaphore wrapper.
	FreeRtosCountingSemaphore (std::uint32_t max_count, std::uint32_t initial_count)
	Construct and initialize a counting semaphore.
bool	Initialize (std::uint32_t max_count, std::uint32_t initial_count)
	Initialize (or re-initialize) a counting semaphore.
	~FreeRtosCountingSemaphore ()
	Destroy semaphore resources if initialized.
bool	Take (std::uint32_t ticks_to_wait=0)
	Take one token from the semaphore.
bool	Give ()
	Return one token to the semaphore from task context.
bool	GiveFromISR ()
	Return one token to the semaphore from ISR context.
std::uint32_t	GetCount () const
bool	IsValid () const
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Ownership-based wrapper for a FreeRTOS-style counting semaphore.

Counting semaphores model a bounded resource count and can be used for producer/consumer pacing, pooled-resource limits, and event accumulation. Take/give is explicit.

Typical usage:

c7222::FreeRtosCountingSemaphore slots(4, 4);

if(slots.Take(10)) {
    // use one resource slot
    (void)slots.Give();
}

Constructor & Destructor Documentation

FreeRtosCountingSemaphore() [1/2]

c7222::FreeRtosCountingSemaphore::FreeRtosCountingSemaphore ( )

default

Construct an uninitialized counting semaphore wrapper.

FreeRtosCountingSemaphore() [2/2]

c7222::FreeRtosCountingSemaphore::FreeRtosCountingSemaphore	(	std::uint32_t	max_count,
		std::uint32_t	initial_count
	)

Construct and initialize a counting semaphore.

Parameters

max_count	Maximum count value.
initial_count	Initial count value.

~FreeRtosCountingSemaphore()

c7222::FreeRtosCountingSemaphore::~FreeRtosCountingSemaphore

(

)

Destroy semaphore resources if initialized.

Member Function Documentation

GetCount()

std::uint32_t c7222::FreeRtosCountingSemaphore::GetCount

(

)

const

Returns

Current semaphore count.

Give()

bool c7222::FreeRtosCountingSemaphore::Give

(

)

Return one token to the semaphore from task context.

Returns

true on success.

GiveFromISR()

bool c7222::FreeRtosCountingSemaphore::GiveFromISR

(

)

Return one token to the semaphore from ISR context.

Returns

true on success.

Initialize()

bool c7222::FreeRtosCountingSemaphore::Initialize	(	std::uint32_t	max_count,
		std::uint32_t	initial_count
	)

Initialize (or re-initialize) a counting semaphore.

Parameters

max_count	Maximum count value.
initial_count	Initial count value.

Returns

true on success.

IsValid()

bool c7222::FreeRtosCountingSemaphore::IsValid

(

)

const

Returns

true if the wrapper owns a valid semaphore handle.

Take()

bool c7222::FreeRtosCountingSemaphore::Take

(

std::uint32_t

ticks_to_wait = 0

)

Take one token from the semaphore.

Parameters

ticks_to_wait

Max ticks to wait (0 = non-blocking).

Returns

true if a token was acquired.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/freertos_wrappers/include/freertos_semaphore.hpp
