c7222::FreeRtosEventGroup Class Reference

Ownership-based wrapper for an event bit group. More...

#include <freertos_event_group.hpp>

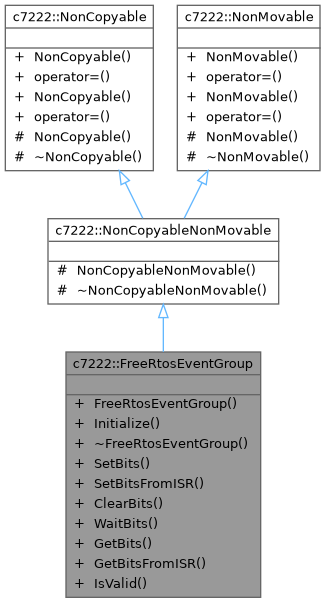

Inheritance diagram for c7222::FreeRtosEventGroup:

Collaboration diagram for c7222::FreeRtosEventGroup:

Public Member Functions
	FreeRtosEventGroup ()
	Construct and initialize an event group.
bool	Initialize ()
	Initialize (or re-initialize) the event group.
	~FreeRtosEventGroup ()
	Destroy event group resources if initialized.
std::uint32_t	SetBits (std::uint32_t bits)
	Set bits in the event group.
bool	SetBitsFromISR (std::uint32_t bits)
	Set bits from ISR context.
std::uint32_t	ClearBits (std::uint32_t bits)
	Clear bits in the event group.
std::uint32_t	WaitBits (std::uint32_t bits_to_wait_for, bool clear_on_exit, bool wait_for_all_bits, std::uint32_t ticks_to_wait)
	Wait until required event bits are satisfied.
std::uint32_t	GetBits () const
std::uint32_t	GetBitsFromISR () const
bool	IsValid () const
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Ownership-based wrapper for an event bit group.

Event groups are useful for waiting on one or more flags across tasks. Wait and bit operations are explicit; RAII here refers to handle cleanup.

Typical usage:

c7222::FreeRtosEventGroup events;
constexpr std::uint32_t kReadyBit = 1u << 0;

// Producer:
(void)events.SetBits(kReadyBit);

// Consumer:
const std::uint32_t bits = events.WaitBits(kReadyBit, true, true, 100);
if((bits & kReadyBit) != 0U) {
    // ready condition observed
}

Constructor & Destructor Documentation

FreeRtosEventGroup()

c7222::FreeRtosEventGroup::FreeRtosEventGroup

(

)

Construct and initialize an event group.

~FreeRtosEventGroup()

c7222::FreeRtosEventGroup::~FreeRtosEventGroup

(

)

Destroy event group resources if initialized.

Member Function Documentation

ClearBits()

std::uint32_t c7222::FreeRtosEventGroup::ClearBits

(

std::uint32_t

bits

)

Clear bits in the event group.

Parameters

bits	Bit mask to clear.

Returns

Event bits value before clearing.

GetBits()

std::uint32_t c7222::FreeRtosEventGroup::GetBits

(

)

const

Returns

Current event bits from task context.

GetBitsFromISR()

std::uint32_t c7222::FreeRtosEventGroup::GetBitsFromISR

(

)

const

Returns

Current event bits from ISR context.

Initialize()

bool c7222::FreeRtosEventGroup::Initialize

(

)

Initialize (or re-initialize) the event group.

IsValid()

bool c7222::FreeRtosEventGroup::IsValid

(

)

const

Returns

true if the wrapper owns a valid event group handle.

SetBits()

std::uint32_t c7222::FreeRtosEventGroup::SetBits

(

std::uint32_t

bits

)

Set bits in the event group.

Parameters

bits	Bit mask to set.

Returns

Event bits value after setting.

SetBitsFromISR()

bool c7222::FreeRtosEventGroup::SetBitsFromISR

(

std::uint32_t

bits

)

Set bits from ISR context.

Parameters

bits	Bit mask to set.

Returns

true on success.

WaitBits()

std::uint32_t c7222::FreeRtosEventGroup::WaitBits	(	std::uint32_t	bits_to_wait_for,
		bool	clear_on_exit,
		bool	wait_for_all_bits,
		std::uint32_t	ticks_to_wait
	)

Wait until required event bits are satisfied.

Parameters

bits_to_wait_for	Target bits.
clear_on_exit	If true, clear requested bits before return.
wait_for_all_bits	If true, wait for all bits; otherwise any bit.
ticks_to_wait	Max ticks to wait.

Returns

Event bits value on wakeup.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/freertos_wrappers/include/freertos_event_group.hpp
