c7222::FreeRtosMessageBuffer Class Reference

Ownership-based wrapper for discrete message buffering. More...

#include <freertos_stream_buffer.hpp>

Inheritance diagram for c7222::FreeRtosMessageBuffer:

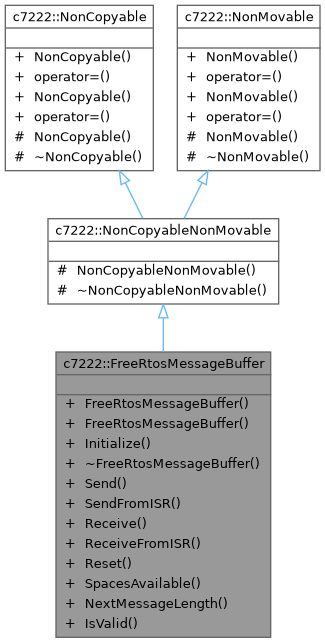

Collaboration diagram for c7222::FreeRtosMessageBuffer:

Public Member Functions
	FreeRtosMessageBuffer ()=default
	Construct an uninitialized message buffer wrapper.
	FreeRtosMessageBuffer (std::size_t buffer_size_bytes)
	Construct and initialize a message buffer.
bool	Initialize (std::size_t buffer_size_bytes)
	Initialize (or re-initialize) a message buffer.
	~FreeRtosMessageBuffer ()
	Destroy message buffer resources if initialized.
std::size_t	Send (const void *message, std::size_t message_length, std::uint32_t ticks_to_wait=0)
	Send one message from task context.
std::size_t	SendFromISR (const void *message, std::size_t message_length)
	Send one message from ISR context.
std::size_t	Receive (void *out_message, std::size_t out_length, std::uint32_t ticks_to_wait=0)
	Receive one message from task context.
std::size_t	ReceiveFromISR (void *out_message, std::size_t out_length)
	Receive one message from ISR context.
bool	Reset ()
	Reset message buffer state.
std::size_t	SpacesAvailable () const
std::size_t	NextMessageLength () const
bool	IsValid () const
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Ownership-based wrapper for discrete message buffering.

Message buffers preserve message boundaries and are suitable for variable-size packet/message transfer between contexts. Send/receive operations are explicit; RAII here refers to handle cleanup.

Typical usage:

c7222::FreeRtosMessageBuffer messages(256);
const std::uint32_t value = 7;
(void)messages.Send(&value, sizeof(value), 10);

std::uint32_t out = 0;
const std::size_t n = messages.Receive(&out, sizeof(out), 10);
(void)n;

Constructor & Destructor Documentation

FreeRtosMessageBuffer() [1/2]

c7222::FreeRtosMessageBuffer::FreeRtosMessageBuffer ( )

default

Construct an uninitialized message buffer wrapper.

FreeRtosMessageBuffer() [2/2]

c7222::FreeRtosMessageBuffer::FreeRtosMessageBuffer ( std::size_t  buffer_size_bytes )

explicit

Construct and initialize a message buffer.

~FreeRtosMessageBuffer()

c7222::FreeRtosMessageBuffer::~FreeRtosMessageBuffer

(

)

Destroy message buffer resources if initialized.

Member Function Documentation

Initialize()

bool c7222::FreeRtosMessageBuffer::Initialize

(

std::size_t

buffer_size_bytes

)

Initialize (or re-initialize) a message buffer.

IsValid()

bool c7222::FreeRtosMessageBuffer::IsValid

(

)

const

Returns

true if the wrapper owns a valid message buffer handle.

NextMessageLength()

std::size_t c7222::FreeRtosMessageBuffer::NextMessageLength

(

)

const

Returns

Length of next queued message in bytes.

Receive()

std::size_t c7222::FreeRtosMessageBuffer::Receive	(	void *	out_message,
		std::size_t	out_length,
		std::uint32_t	ticks_to_wait = 0
	)

Receive one message from task context.

Returns

bytes received.

ReceiveFromISR()

std::size_t c7222::FreeRtosMessageBuffer::ReceiveFromISR	(	void *	out_message,
		std::size_t	out_length
	)

Receive one message from ISR context.

Returns

bytes received.

Reset()

bool c7222::FreeRtosMessageBuffer::Reset

(

)

Reset message buffer state.

Send()

std::size_t c7222::FreeRtosMessageBuffer::Send	(	const void *	message,
		std::size_t	message_length,
		std::uint32_t	ticks_to_wait = 0
	)

Send one message from task context.

Returns

bytes accepted.

SendFromISR()

std::size_t c7222::FreeRtosMessageBuffer::SendFromISR	(	const void *	message,
		std::size_t	message_length
	)

Send one message from ISR context.

Returns

bytes accepted.

SpacesAvailable()

std::size_t c7222::FreeRtosMessageBuffer::SpacesAvailable

(

)

const

Returns

Writable bytes available for future messages.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/freertos_wrappers/include/freertos_stream_buffer.hpp
