c7222::FreeRtosQueue Class Reference

Ownership-based wrapper for a fixed-size item queue. More...

#include <freertos_queue.hpp>

Inheritance diagram for c7222::FreeRtosQueue:

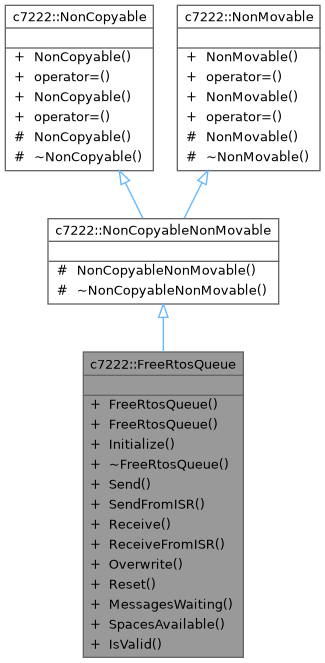

Collaboration diagram for c7222::FreeRtosQueue:

Public Member Functions
	FreeRtosQueue ()=default
	Construct an uninitialized queue wrapper.
	FreeRtosQueue (std::size_t length, std::size_t item_size)
	Construct and initialize a queue.
bool	Initialize (std::size_t length, std::size_t item_size)
	Initialize (or re-initialize) the queue.
	~FreeRtosQueue ()
	Destroy queue resources if initialized.
bool	Send (const void *item, std::uint32_t ticks_to_wait=0)
	Enqueue one item from task context.
bool	SendFromISR (const void *item)
	Enqueue one item from ISR context.
bool	Receive (void *out_item, std::uint32_t ticks_to_wait=0)
	Dequeue one item from task context.
bool	ReceiveFromISR (void *out_item)
	Dequeue one item from ISR context.
bool	Overwrite (const void *item)
	Overwrite queue storage with a new item.
bool	Reset ()
	Reset the queue contents.
std::size_t	MessagesWaiting () const
std::size_t	SpacesAvailable () const
bool	IsValid () const
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Ownership-based wrapper for a fixed-size item queue.

This wrapper models the classic FreeRTOS queue behavior with task-context and ISR-context send/receive helpers. Send/receive operations are explicit; RAII here refers to queue-handle cleanup.

Typical usage:

c7222::FreeRtosQueue queue(8, sizeof(std::uint32_t));

std::uint32_t tx = 42;
(void)queue.Send(&tx, 10);

std::uint32_t rx = 0;
if(queue.Receive(&rx, 10)) {
    // use rx
}

Constructor & Destructor Documentation

FreeRtosQueue() [1/2]

c7222::FreeRtosQueue::FreeRtosQueue ( )

default

Construct an uninitialized queue wrapper.

FreeRtosQueue() [2/2]

c7222::FreeRtosQueue::FreeRtosQueue	(	std::size_t	length,
		std::size_t	item_size
	)

Construct and initialize a queue.

Parameters

length	Number of queue elements.
item_size	Size of each element in bytes.

~FreeRtosQueue()

c7222::FreeRtosQueue::~FreeRtosQueue

(

)

Destroy queue resources if initialized.

Member Function Documentation

Initialize()

bool c7222::FreeRtosQueue::Initialize	(	std::size_t	length,
		std::size_t	item_size
	)

Initialize (or re-initialize) the queue.

Parameters

length	Number of queue elements.
item_size	Size of each element in bytes.

Returns

true on success.

IsValid()

bool c7222::FreeRtosQueue::IsValid

(

)

const

Returns

true if the wrapper owns a valid queue handle.

MessagesWaiting()

std::size_t c7222::FreeRtosQueue::MessagesWaiting

(

)

const

Returns

Number of queued items.

Overwrite()

bool c7222::FreeRtosQueue::Overwrite

(

const void *

item

)

Overwrite queue storage with a new item.

Intended for queue length of 1 (mailbox pattern).

Receive()

bool c7222::FreeRtosQueue::Receive	(	void *	out_item,
		std::uint32_t	ticks_to_wait = 0
	)

Dequeue one item from task context.

Parameters

out_item	Pointer to destination storage.
ticks_to_wait	Max ticks to wait if empty.

Returns

true if an item was received.

ReceiveFromISR()

bool c7222::FreeRtosQueue::ReceiveFromISR

(

void *

out_item

)

Dequeue one item from ISR context.

Reset()

bool c7222::FreeRtosQueue::Reset

(

)

Reset the queue contents.

Send()

bool c7222::FreeRtosQueue::Send	(	const void *	item,
		std::uint32_t	ticks_to_wait = 0
	)

Enqueue one item from task context.

Parameters

item	Pointer to source item data.
ticks_to_wait	Max ticks to wait if full.

Returns

true on success.

SendFromISR()

bool c7222::FreeRtosQueue::SendFromISR

(

const void *

item

)

Enqueue one item from ISR context.

SpacesAvailable()

std::size_t c7222::FreeRtosQueue::SpacesAvailable

(

)

const

Returns

Number of free item slots.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/freertos_wrappers/include/freertos_queue.hpp
