c7222::FreeRtosStreamBuffer Class Reference

Ownership-based wrapper for byte-stream buffering. More...

#include <freertos_stream_buffer.hpp>

Inheritance diagram for c7222::FreeRtosStreamBuffer:

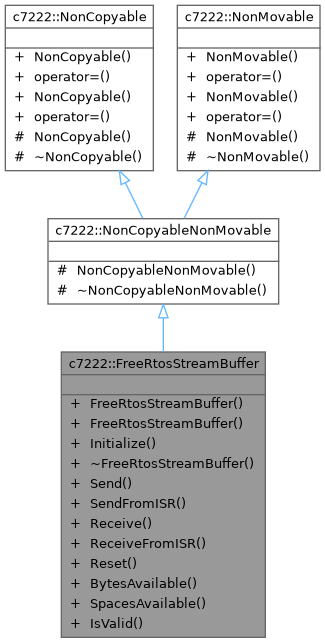

Collaboration diagram for c7222::FreeRtosStreamBuffer:

Public Member Functions
	FreeRtosStreamBuffer ()=default
	Construct an uninitialized stream buffer wrapper.
	FreeRtosStreamBuffer (std::size_t buffer_size_bytes, std::size_t trigger_level_bytes)
	Construct and initialize a stream buffer.
bool	Initialize (std::size_t buffer_size_bytes, std::size_t trigger_level_bytes)
	Initialize (or re-initialize) the stream buffer.
	~FreeRtosStreamBuffer ()
	Destroy stream buffer resources if initialized.
std::size_t	Send (const void *data, std::size_t data_length, std::uint32_t ticks_to_wait=0)
	Send bytes from task context.
std::size_t	SendFromISR (const void *data, std::size_t data_length)
	Send bytes from ISR context.
std::size_t	Receive (void *out_data, std::size_t out_length, std::uint32_t ticks_to_wait=0)
	Receive bytes from task context.
std::size_t	ReceiveFromISR (void *out_data, std::size_t out_length)
	Receive bytes from ISR context.
bool	Reset ()
	Reset stream buffer state.
std::size_t	BytesAvailable () const
std::size_t	SpacesAvailable () const
bool	IsValid () const
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Ownership-based wrapper for byte-stream buffering.

Stream buffers provide contiguous byte FIFO semantics and are useful for variable chunk transport where record/message boundaries are not required. Send/receive operations are explicit; RAII here refers to handle cleanup.

Typical usage:

c7222::FreeRtosStreamBuffer stream(256, 1);
const char payload[] = "abc";
(void)stream.Send(payload, sizeof(payload), 10);

char out[8] = {};
const std::size_t n = stream.Receive(out, sizeof(out), 10);
(void)n;

Constructor & Destructor Documentation

FreeRtosStreamBuffer() [1/2]

c7222::FreeRtosStreamBuffer::FreeRtosStreamBuffer ( )

default

Construct an uninitialized stream buffer wrapper.

FreeRtosStreamBuffer() [2/2]

c7222::FreeRtosStreamBuffer::FreeRtosStreamBuffer	(	std::size_t	buffer_size_bytes,
		std::size_t	trigger_level_bytes
	)

Construct and initialize a stream buffer.

Parameters

buffer_size_bytes	Total buffer storage size.
trigger_level_bytes	Wake threshold for readers.

~FreeRtosStreamBuffer()

c7222::FreeRtosStreamBuffer::~FreeRtosStreamBuffer

(

)

Destroy stream buffer resources if initialized.

Member Function Documentation

BytesAvailable()

std::size_t c7222::FreeRtosStreamBuffer::BytesAvailable

(

)

const

Returns

Number of readable bytes.

Initialize()

bool c7222::FreeRtosStreamBuffer::Initialize	(	std::size_t	buffer_size_bytes,
		std::size_t	trigger_level_bytes
	)

Initialize (or re-initialize) the stream buffer.

Returns

true on success.

IsValid()

bool c7222::FreeRtosStreamBuffer::IsValid

(

)

const

Returns

true if the wrapper owns a valid stream buffer handle.

Receive()

std::size_t c7222::FreeRtosStreamBuffer::Receive	(	void *	out_data,
		std::size_t	out_length,
		std::uint32_t	ticks_to_wait = 0
	)

Receive bytes from task context.

Returns

bytes received.

ReceiveFromISR()

std::size_t c7222::FreeRtosStreamBuffer::ReceiveFromISR	(	void *	out_data,
		std::size_t	out_length
	)

Receive bytes from ISR context.

Returns

bytes received.

Reset()

bool c7222::FreeRtosStreamBuffer::Reset

(

)

Reset stream buffer state.

Send()

std::size_t c7222::FreeRtosStreamBuffer::Send	(	const void *	data,
		std::size_t	data_length,
		std::uint32_t	ticks_to_wait = 0
	)

Send bytes from task context.

Returns

bytes accepted.

SendFromISR()

std::size_t c7222::FreeRtosStreamBuffer::SendFromISR	(	const void *	data,
		std::size_t	data_length
	)

Send bytes from ISR context.

Returns

bytes accepted.

SpacesAvailable()

std::size_t c7222::FreeRtosStreamBuffer::SpacesAvailable

(

)

const

Returns

Number of writable bytes.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/freertos_wrappers/include/freertos_stream_buffer.hpp
