main_ble_custom_service_rw.cpp File Reference

BLE example showing a minimal custom service with READ + WRITE characteristics. More...

#include <cassert>
#include <cstdint>
#include <cstdio>
#include <vector>
#include "../common/gap_event_handler.hpp"
#include "../common/characteristic_event_handler.hpp"
#include "advertisement_data.hpp"
#include "attribute_server.hpp"
#include "ble.hpp"
#include "characteristic.hpp"
#include "freertos_task.hpp"
#include "gap.hpp"
#include "platform.hpp"
#include "app_profile.h"

Include dependency graph for main_ble_custom_service_rw.cpp:

Functions
int	main ()
	Program entry point for the custom service RW example.

Detailed Description

BLE example showing a minimal custom service with READ + WRITE characteristics.

This example demonstrates how to implement a custom service using:

• a .gatt profile (compiled into app_profile.h)
• AttributeServer to locate services/characteristics by UUID
• Characteristic::EventHandler to react to reads and writes

---

GATT layout

Service UUID: 0xFFE0

• PublicValue (UUID 0xFFE1): READ (dynamic)
• WriteValue (UUID 0xFFE2): WRITE / WRITE_WITHOUT_RESPONSE (dynamic)

---

How to test (nRF Connect / LightBlue)

1) Connect to "c7222-rw-demo" 2) Read "PublicValue" -> returns the current value 3) Write any bytes to "WriteValue" 4) Read "PublicValue" again -> it becomes whatever you wrote

Function Documentation

main()

int main

(

void

)

Program entry point for the custom service RW example.

Creates the BLE task and starts the FreeRTOS scheduler.

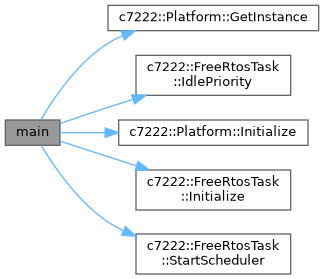

Here is the call graph for this function:
