advertisement_data.hpp File Reference

BLE GAP advertisement data builder. More...

#include <cassert>
#include <cstddef>
#include <cstdint>
#include <iosfwd>
#include <list>
#include <type_traits>
#include <vector>

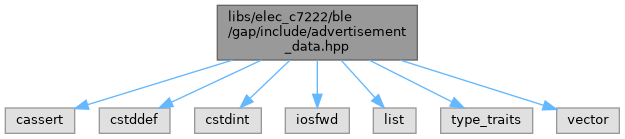

Include dependency graph for advertisement_data.hpp:

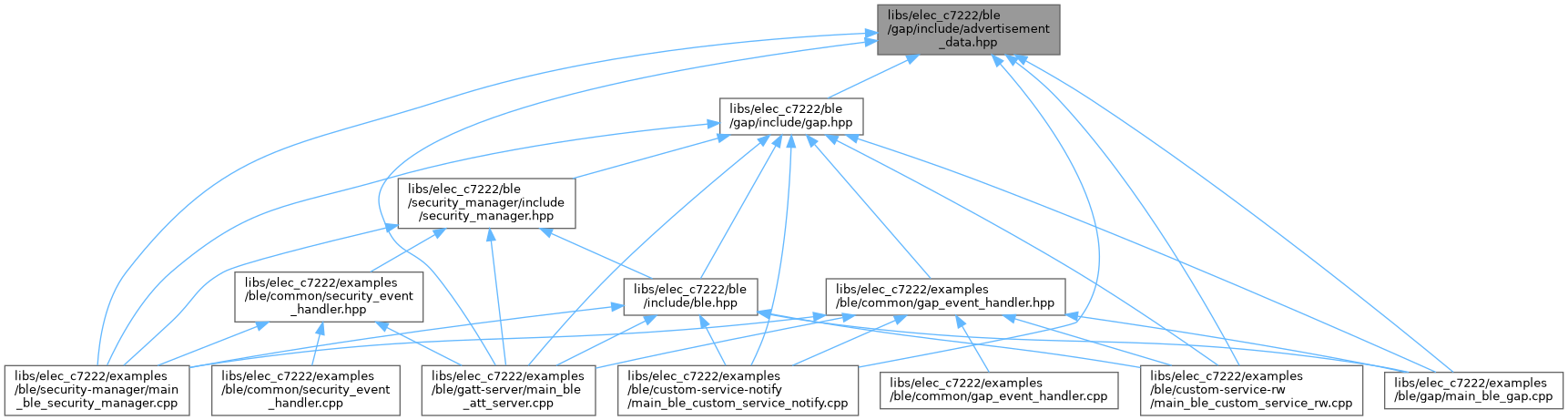

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	c7222::AdvertisementData
	Generic advertisement data structure builder. More...
class	c7222::AdvertisementDataBuilder
	Builder for assembling a complete advertising payload. More...

Namespaces
namespace	c7222
	C7222 course abstractions namespace.

Enumerations
enum class	c7222::AdvertisementDataType : uint8_t {   c7222::kFlags = 0x01 , c7222::kIncompleteList16BitUuid = 0x02 , c7222::kCompleteList16BitUuid = 0x03 , c7222::kShortenedLocalName = 0x08 ,   c7222::kCompleteLocalName = 0x09 , c7222::kTxPowerLevel = 0x0A , c7222::kSlaveConnectionIntervalRange = 0x12 , c7222::kServiceData16BitUuid = 0x16 ,   c7222::kManufacturerSpecific = 0xFF }
	BLE GAP advertisement data types. More...

Functions
std::vector< uint8_t >	c7222::operator+ (const AdvertisementData &lhs, const AdvertisementData &rhs)
	Concatenate two AD structures into a raw byte vector.
constexpr uint8_t	operator| (c7222::AdvertisementData::Flags lhs, c7222::AdvertisementData::Flags rhs)
constexpr uint8_t	operator| (uint8_t lhs, c7222::AdvertisementData::Flags rhs)
constexpr uint8_t	operator|= (uint8_t lhs, c7222::AdvertisementData::Flags rhs)
constexpr uint8_t	operator| (c7222::AdvertisementData::Flags lhs, uint8_t rhs)
constexpr uint8_t	operator& (c7222::AdvertisementData::Flags lhs, c7222::AdvertisementData::Flags rhs)
constexpr uint8_t	operator& (uint8_t lhs, c7222::AdvertisementData::Flags rhs)
constexpr uint8_t	operator&= (uint8_t lhs, c7222::AdvertisementData::Flags rhs)
constexpr uint8_t	operator& (c7222::AdvertisementData::Flags lhs, uint8_t rhs)
constexpr uint8_t	operator^ (uint8_t lhs, c7222::AdvertisementData::Flags rhs)
constexpr uint8_t	operator^= (uint8_t lhs, c7222::AdvertisementData::Flags rhs)
constexpr uint8_t	operator^ (c7222::AdvertisementData::Flags lhs, uint8_t rhs)

Variables
constexpr size_t	c7222::kAdvertisementDataLegacyMaxSize = 31
	Maximum length for legacy advertising data (length + type + value).
constexpr size_t	c7222::kAdvertisementDataStructHeaderOverhead = 2
	Overhead bytes for an AD structure (length + type).

Detailed Description

BLE GAP advertisement data builder.

Function Documentation

operator&() [1/3]

constexpr uint8_t operator& ( c7222::AdvertisementData::Flags  lhs, c7222::AdvertisementData::Flags  rhs  )

constexpr

operator&() [2/3]

constexpr uint8_t operator& ( c7222::AdvertisementData::Flags  lhs, uint8_t  rhs  )

constexpr

operator&() [3/3]

constexpr uint8_t operator& ( uint8_t  lhs, c7222::AdvertisementData::Flags  rhs  )

constexpr

operator&=()

constexpr uint8_t operator&= ( uint8_t  lhs, c7222::AdvertisementData::Flags  rhs  )

constexpr

operator^() [1/2]

constexpr uint8_t operator^ ( c7222::AdvertisementData::Flags  lhs, uint8_t  rhs  )

constexpr

operator^() [2/2]

constexpr uint8_t operator^ ( uint8_t  lhs, c7222::AdvertisementData::Flags  rhs  )

constexpr

operator^=()

constexpr uint8_t operator^= ( uint8_t  lhs, c7222::AdvertisementData::Flags  rhs  )

constexpr

operator|() [1/3]

constexpr uint8_t operator| ( c7222::AdvertisementData::Flags  lhs, c7222::AdvertisementData::Flags  rhs  )

constexpr

operator|() [2/3]

constexpr uint8_t operator| ( c7222::AdvertisementData::Flags  lhs, uint8_t  rhs  )

constexpr

operator|() [3/3]

constexpr uint8_t operator| ( uint8_t  lhs, c7222::AdvertisementData::Flags  rhs  )

constexpr

operator|=()

constexpr uint8_t operator|= ( uint8_t  lhs, c7222::AdvertisementData::Flags  rhs  )

constexpr
