c7222_pico_w_board.h File Reference

Pico W board-level GPIO layout and helpers (C API). More...

#include <stdbool.h>
#include <stdint.h>

Include dependency graph for c7222_pico_w_board.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	c7222_led_type {   C7222_PICO_W_LED3_GREEN = 16 , C7222_PICO_W_LED3_RED = 17 , C7222_PICO_W_LED2_GREEN = 18 , C7222_PICO_W_LED2_RED = 19 ,   C7222_PICO_W_LED1_GREEN = 20 , C7222_PICO_W_LED1_RED = 21 }
	Logical LED identifiers mapped to GPIO pins. More...
enum	c7222_button_type { C7222_PICO_W_BUTTON_B1 = 2 , C7222_PICO_W_BUTTON_B2 = 3 , C7222_PICO_W_BUTTON_B3 = 4 , C7222_PICO_W_BUTTON_B4 = 5 }
	Logical button identifiers mapped to GPIO pins. More...
enum	c7222_gpio_event_type { C7222_GPIO_EVENT_LEVEL_LOW = 0x1u , C7222_GPIO_EVENT_LEVEL_HIGH = 0x2u , C7222_GPIO_EVENT_FALL = 0x4u , C7222_GPIO_EVENT_RISE = 0x8u }
	GPIO IRQ event bits compatible with Pico SDK GPIO IRQ flags. More...

Functions
void	c7222_pico_w_board_init_gpio (void)
	Initialize all LED and button GPIOs for the board.
void	c7222_pico_w_board_init_led (enum c7222_led_type led)
	Initialize a single LED GPIO.
void	c7222_pico_w_board_button_init (enum c7222_button_type button, void(*handler)(uint32_t, uint32_t), uint32_t events, bool enabled)
	Initialize a button GPIO and optionally attach an IRQ handler.
bool	c7222_pico_w_board_button_read (enum c7222_button_type button)
	Read the current button GPIO level.
bool	c7222_pico_w_board_led_read (enum c7222_led_type led)
	Read the current LED state.
void	c7222_pico_w_board_led_on (enum c7222_led_type led)
	Turn an LED ON (active-low).
void	c7222_pico_w_board_led_off (enum c7222_led_type led)
	Turn an LED OFF (active-low).
void	c7222_pico_w_board_led_toggle (enum c7222_led_type led)
	Toggle an LED output.
bool	c7222_pico_w_onboard_led_init (void)
	Initialize the Pico W on-board LED.
void	c7222_pico_w_onboard_led_set (bool on)
	Set the on-board LED state.
void	c7222_pico_w_onboard_led_on (void)
	Turn the on-board LED ON.
void	c7222_pico_w_onboard_led_off (void)
	Turn the on-board LED OFF.
void	c7222_pico_w_onboard_led_toggle (void)
	Toggle the on-board LED.
bool	c7222_pico_w_onboard_led_read (void)
	Read the on-board LED state.

Detailed Description

Pico W board-level GPIO layout and helpers (C API).

This header defines the GPIO layout for LEDs and buttons on the C7222 Pico W board and provides C-style helper functions for initializing and accessing those pins, plus a thin C wrapper for the Pico W on-board LED. The implementation is in libs/elec_c7222/devices/platform/rpi_pico/c7222_pico_w_board.c.

Note: This header is intended for C code. For C++ projects, prefer the c7222_pico_w_board.hpp API and its associated classes (PicoWBoard, Led, and Button).

Usage assumptions (from the implementation)

• Call c7222_pico_w_board_init_gpio() once before using any of the LED or button helpers. All other functions assert if the board has not been initialized.
• Buttons are configured as inputs with pull-ups enabled.
• LEDs are configured as outputs. Note: the current implementation drives LEDs as active-low (see c7222_pico_w_board_led_on/off/read).

Enumeration Type Documentation

c7222_button_type

enum c7222_button_type

Logical button identifiers mapped to GPIO pins.

Enumerator
C7222_PICO_W_BUTTON_B1
C7222_PICO_W_BUTTON_B2
C7222_PICO_W_BUTTON_B3
C7222_PICO_W_BUTTON_B4

c7222_gpio_event_type

enum c7222_gpio_event_type

GPIO IRQ event bits compatible with Pico SDK GPIO IRQ flags.

These values match the Pico SDK bit assignments so they can be passed directly to gpio_set_irq_enabled* after mapping.

Enumerator
C7222_GPIO_EVENT_LEVEL_LOW
C7222_GPIO_EVENT_LEVEL_HIGH
C7222_GPIO_EVENT_FALL
C7222_GPIO_EVENT_RISE

c7222_led_type

enum c7222_led_type

Logical LED identifiers mapped to GPIO pins.

Enumerator
C7222_PICO_W_LED3_GREEN
C7222_PICO_W_LED3_RED
C7222_PICO_W_LED2_GREEN
C7222_PICO_W_LED2_RED
C7222_PICO_W_LED1_GREEN
C7222_PICO_W_LED1_RED

Function Documentation

c7222_pico_w_board_button_init()

void c7222_pico_w_board_button_init	(	enum c7222_button_type	button,
		void(*)(uint32_t, uint32_t)	handler,
		uint32_t	events,
		bool	enabled
	)

Initialize a button GPIO and optionally attach an IRQ handler.

Parameters

button	Button identifier.
handler	IRQ callback (may be NULL).
events	Bitmask of c7222_gpio_event_type.
enabled	Enable or disable the IRQ for this button.

Implementation assumptions:

• Configures the button as input with pull-up.
• Uses gpio_set_irq_enabled_with_callback if a handler is provided.
• Does not attach a global callback if handler is NULL (IRQ disabled or enabled without callback).

Here is the caller graph for this function:

c7222_pico_w_board_button_read()

bool c7222_pico_w_board_button_read

(

enum c7222_button_type

button

)

Read the current button GPIO level.

Returns

true if the pin reads high, false otherwise.

Note

Requires c7222_pico_w_board_init_gpio() to have been called.

Here is the caller graph for this function:

c7222_pico_w_board_init_gpio()

void c7222_pico_w_board_init_gpio

(

void

)

Initialize all LED and button GPIOs for the board.

Implementation assumptions:

• Configures all LED pins as outputs and drives them to the default state.
• Configures all button pins as inputs with pull-ups.
• Sets an internal "initialized" flag used by other functions.

Here is the caller graph for this function:

c7222_pico_w_board_init_led()

void c7222_pico_w_board_init_led

(

enum c7222_led_type

led

)

Initialize a single LED GPIO.

Parameters

led	LED identifier to initialize.

Note

Requires c7222_pico_w_board_init_gpio() to have been called.

c7222_pico_w_board_led_off()

void c7222_pico_w_board_led_off

(

enum c7222_led_type

led

)

Turn an LED OFF (active-low).

Here is the caller graph for this function:

c7222_pico_w_board_led_on()

void c7222_pico_w_board_led_on

(

enum c7222_led_type

led

)

Turn an LED ON (active-low).

Here is the caller graph for this function:

c7222_pico_w_board_led_read()

bool c7222_pico_w_board_led_read

(

enum c7222_led_type

led

)

Read the current LED state.

Returns

true if LED is ON (active-low), false otherwise.

Note

Implementation reads the GPIO and inverts it.

c7222_pico_w_board_led_toggle()

void c7222_pico_w_board_led_toggle

(

enum c7222_led_type

led

)

Toggle an LED output.

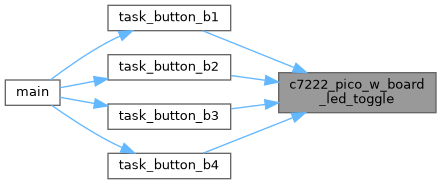

Here is the caller graph for this function:

c7222_pico_w_onboard_led_init()

bool c7222_pico_w_onboard_led_init

(

void

)

Initialize the Pico W on-board LED.

Uses either PICO_DEFAULT_LED_PIN or CYW43_WL_GPIO_LED_PIN depending on build configuration. Sets an internal initialization flag.

Returns

true on success, false if no on-board LED is available.

c7222_pico_w_onboard_led_off()

void c7222_pico_w_onboard_led_off

(

void

)

Turn the on-board LED OFF.

c7222_pico_w_onboard_led_on()

void c7222_pico_w_onboard_led_on

(

void

)

Turn the on-board LED ON.

c7222_pico_w_onboard_led_read()

bool c7222_pico_w_onboard_led_read

(

void

)

Read the on-board LED state.

Returns

true if the GPIO reads high. For CYW43 LED, readback is not supported, so this returns false.

c7222_pico_w_onboard_led_set()

void c7222_pico_w_onboard_led_set

(

bool

on

)

Set the on-board LED state.

Parameters

on	true for ON, false for OFF.

Note

Requires c7222_pico_w_onboard_led_init().

c7222_pico_w_onboard_led_toggle()

void c7222_pico_w_onboard_led_toggle

(

void

)

Toggle the on-board LED.
