c7222_pico_w_board.hpp File Reference

C++ board-level helper for the C7222 Pico W board. More...

#include <array>
#include <memory>
#include "button.hpp"
#include "led.hpp"

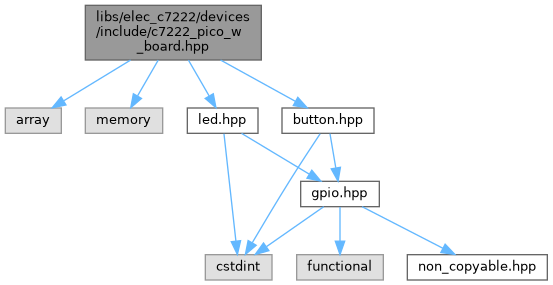

Include dependency graph for c7222_pico_w_board.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	c7222::PicoWBoard
	Board-level convenience wrapper for the C7222 Pico W board. More...

Namespaces
namespace	c7222
	C7222 course abstractions namespace.

Detailed Description

C++ board-level helper for the C7222 Pico W board.

This class provides a small, beginner-friendly API for accessing the board's LEDs and buttons through the higher-level Led and Button types. It hides GPIO pin numbers behind enums and ensures a consistent, simple access pattern across platforms.

Design intent:

• Board-centric API: Use logical IDs (LedId, ButtonId) instead of raw GPIO numbers.
• Simple lifecycle: Construction performs initialization; then retrieve references to LEDs/buttons using GetLed()/GetButton().
• No accidental copies: Inherits from NonCopyableNonMovable to avoid copying the board abstraction.

Mapping assumptions (C7222 Pico W board):

• LEDs are active-low and mapped to GPIOs 16–21.
• Buttons are mapped to GPIOs 2–5 (active-low with pull-ups by convention).
