c7222::PicoWBoard Class Reference

Board-level convenience wrapper for the C7222 Pico W board. More...

#include <c7222_pico_w_board.hpp>

Inheritance diagram for c7222::PicoWBoard:

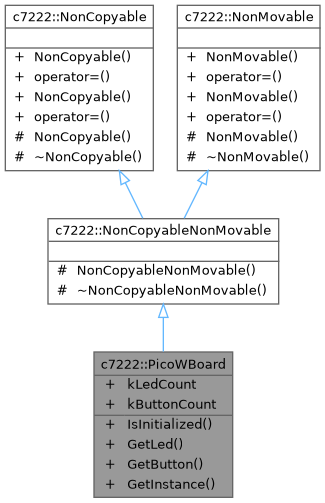

Collaboration diagram for c7222::PicoWBoard:

Public Types
enum class	LedId : uint8_t {   LED1_RED = 21 , LED1_GREEN = 20 , LED2_RED = 19 , LED2_GREEN = 18 ,   LED3_RED = 17 , LED3_GREEN = 16 }
	Logical LED identifiers mapped to GPIO pins. More...
enum class	ButtonId : uint8_t { BUTTON_B1 = 2 , BUTTON_B2 = 3 , BUTTON_B3 = 4 , BUTTON_B4 = 5 }
	Logical button identifiers mapped to GPIO pins. More...

Public Member Functions
bool	IsInitialized () const
	Return true if construction-time initialization has completed.
Led &	GetLed (LedId id)
	Retrieve a board LED by logical ID.
Button &	GetButton (ButtonId id)
	Retrieve a board button by logical ID.
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Static Public Member Functions
static PicoWBoard *	GetInstance ()
	Access the singleton instance (if used).

Static Public Attributes
static constexpr size_t	kLedCount = 6
	Number of board LEDs exposed by this API.
static constexpr size_t	kButtonCount = 4
	Number of board buttons exposed by this API.

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Board-level convenience wrapper for the C7222 Pico W board.

Construct the board to initialize IO objects, then access them by logical ID. This avoids scattering GPIO pin numbers through application code and keeps beginner code readable.

Member Enumeration Documentation

ButtonId

enum class c7222::PicoWBoard::ButtonId : uint8_t

strong

Logical button identifiers mapped to GPIO pins.

Enumerator
BUTTON_B1
BUTTON_B2
BUTTON_B3
BUTTON_B4

LedId

enum class c7222::PicoWBoard::LedId : uint8_t

strong

Logical LED identifiers mapped to GPIO pins.

Enumerator
LED1_RED
LED1_GREEN
LED2_RED
LED2_GREEN
LED3_RED
LED3_GREEN

Member Function Documentation

GetButton()

Button & c7222::PicoWBoard::GetButton

(

ButtonId

id

)

Retrieve a board button by logical ID.

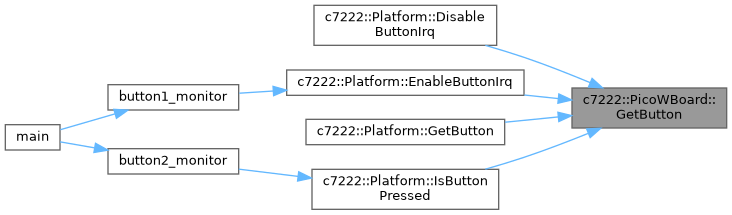

Here is the caller graph for this function:

GetInstance()

static PicoWBoard * c7222::PicoWBoard::GetInstance ( )

static

Access the singleton instance (if used).

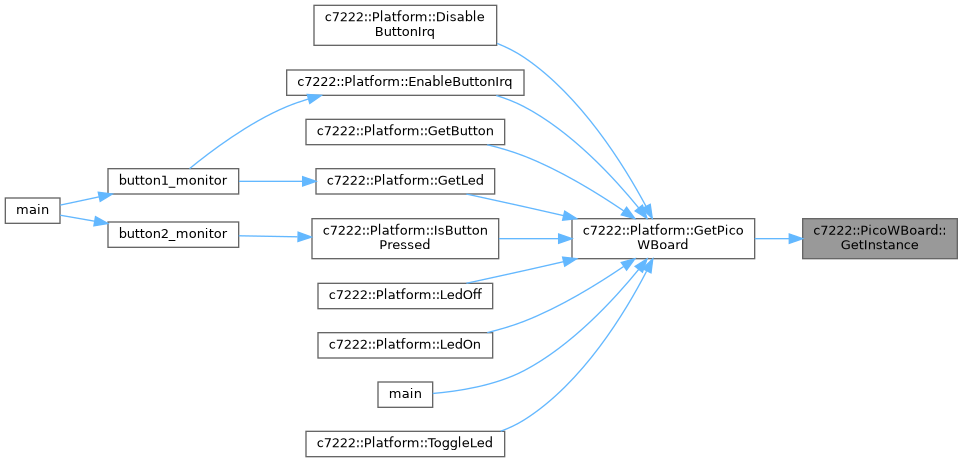

Here is the caller graph for this function:

GetLed()

Led & c7222::PicoWBoard::GetLed

(

LedId

id

)

Retrieve a board LED by logical ID.

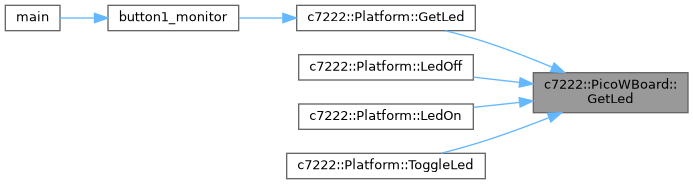

Here is the caller graph for this function:

IsInitialized()

bool c7222::PicoWBoard::IsInitialized ( ) const

inline

Return true if construction-time initialization has completed.

Member Data Documentation

kButtonCount

constexpr size_t c7222::PicoWBoard::kButtonCount = 4

staticconstexpr

Number of board buttons exposed by this API.

kLedCount

constexpr size_t c7222::PicoWBoard::kLedCount = 6

staticconstexpr

Number of board LEDs exposed by this API.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/devices/include/c7222_pico_w_board.hpp
