c7222::FreeRtosRecursiveMutex Class Reference

Ownership-based wrapper for a recursive mutex with destructor cleanup. More...

#include <freertos_mutex.hpp>

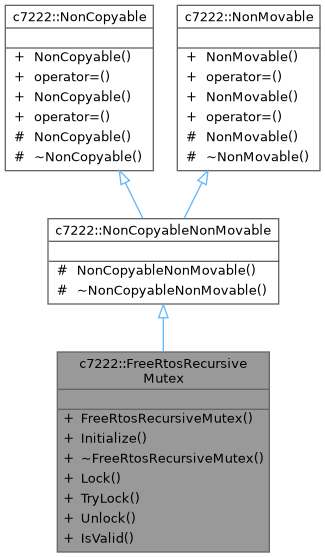

Inheritance diagram for c7222::FreeRtosRecursiveMutex:

Collaboration diagram for c7222::FreeRtosRecursiveMutex:

Public Member Functions
	FreeRtosRecursiveMutex ()
	Construct and initialize a recursive mutex.
bool	Initialize ()
	Initialize (or re-initialize) the recursive mutex.
	~FreeRtosRecursiveMutex ()
	Destroy recursive mutex resources if initialized.
bool	Lock (std::uint32_t ticks_to_wait=0)
	Acquire the recursive mutex.
bool	TryLock ()
	Non-blocking lock attempt.
bool	Unlock ()
	Release one recursion level.
bool	IsValid () const
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Ownership-based wrapper for a recursive mutex with destructor cleanup.

A recursive mutex may be locked multiple times by the same owner and must be unlocked the same number of times.

Typical usage:

c7222::FreeRtosRecursiveMutex mutex;

if(mutex.Lock(10)) {
    (void)mutex.Lock(10);   // same owner re-enters
    (void)mutex.Unlock();   // release one level
    (void)mutex.Unlock();   // release final level
}

Constructor & Destructor Documentation

FreeRtosRecursiveMutex()

c7222::FreeRtosRecursiveMutex::FreeRtosRecursiveMutex

(

)

Construct and initialize a recursive mutex.

~FreeRtosRecursiveMutex()

c7222::FreeRtosRecursiveMutex::~FreeRtosRecursiveMutex

(

)

Destroy recursive mutex resources if initialized.

Member Function Documentation

Initialize()

bool c7222::FreeRtosRecursiveMutex::Initialize

(

)

Initialize (or re-initialize) the recursive mutex.

IsValid()

bool c7222::FreeRtosRecursiveMutex::IsValid

(

)

const

Returns

true if the wrapper owns a valid recursive mutex handle.

Lock()

bool c7222::FreeRtosRecursiveMutex::Lock

(

std::uint32_t

ticks_to_wait = 0

)

Acquire the recursive mutex.

Parameters

ticks_to_wait

Max ticks to wait (0 = non-blocking).

Returns

true if acquired.

TryLock()

bool c7222::FreeRtosRecursiveMutex::TryLock

(

)

Non-blocking lock attempt.

Unlock()

bool c7222::FreeRtosRecursiveMutex::Unlock

(

)

Release one recursion level.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/freertos_wrappers/include/freertos_mutex.hpp
