c7222::FreeRtosTask Class Reference

Ownership-based wrapper for a task/thread execution object. More...

#include <freertos_task.hpp>

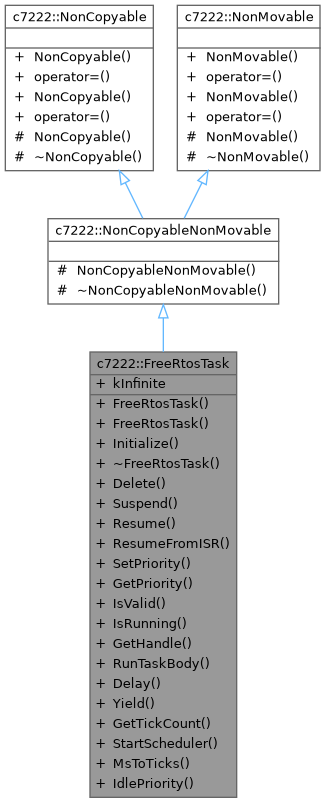

Inheritance diagram for c7222::FreeRtosTask:

Collaboration diagram for c7222::FreeRtosTask:

Public Types
using	TaskFunction = std::function< void(void *)>
	Task callable signature.

Public Member Functions
	FreeRtosTask ()=default
	Construct an uninitialized task wrapper.
	FreeRtosTask (const char *name, std::uint32_t stack_depth_words, std::uint32_t priority, TaskFunction task_function, void *task_arg=nullptr)
	Construct and initialize a task.
bool	Initialize (const char *name, std::uint32_t stack_depth_words, std::uint32_t priority, TaskFunction task_function, void *task_arg=nullptr)
	Initialize (or re-initialize) a task.
	~FreeRtosTask ()
	Delete owned task resource if initialized.
bool	Delete (std::uint32_t ticks_to_wait=0)
	Delete the task.
bool	Suspend ()
	Suspend the task.
bool	Resume ()
	Resume the task from task context.
bool	ResumeFromISR ()
	Resume the task from ISR context.
bool	SetPriority (std::uint32_t priority)
	Set task priority.
std::uint32_t	GetPriority () const
	Get current task priority.
bool	IsValid () const
bool	IsRunning () const
void *	GetHandle () const
void	RunTaskBody ()
	Internal bridge used by platform task-entry trampolines.
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Static Public Member Functions
static void	Delay (std::uint32_t ticks)
	Delay current task for a number of ticks.
static void	Yield ()
	Yield current task.
static std::uint32_t	GetTickCount ()
static void	StartScheduler ()
	Start the scheduler.
static std::uint32_t	MsToTicks (std::uint32_t milliseconds)
	Convert milliseconds to scheduler ticks.
static std::uint32_t	IdlePriority ()

Static Public Attributes
static constexpr std::uint32_t	kInfinite = std::numeric_limits<std::uint32_t>::max()
	Sentinel tick value representing an infinite wait.

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Ownership-based wrapper for a task/thread execution object.

The wrapper owns a task handle and stores a C++ callable task body. Platform implementations bridge the native task entry point to RunTaskBody(). RAII here refers to task-handle cleanup on destruction.

Typical usage:

void Worker(void* arg) {
    (void)arg;
    for(;;) {
        c7222::FreeRtosTask::Delay(c7222::FreeRtosTask::MsToTicks(100));
    }
}

c7222::FreeRtosTask task("worker", 1024, c7222::FreeRtosTask::IdlePriority() + 1, Worker, nullptr);

Member Typedef Documentation

TaskFunction

using c7222::FreeRtosTask::TaskFunction = std::function<void(void*)>

Task callable signature.

Constructor & Destructor Documentation

FreeRtosTask() [1/2]

c7222::FreeRtosTask::FreeRtosTask ( )

default

Construct an uninitialized task wrapper.

FreeRtosTask() [2/2]

c7222::FreeRtosTask::FreeRtosTask	(	const char *	name,
		std::uint32_t	stack_depth_words,
		std::uint32_t	priority,
		TaskFunction	task_function,
		void *	task_arg = nullptr
	)

Construct and initialize a task.

Parameters

name	Task name.
stack_depth_words	Stack depth in words.
priority	Initial task priority.
task_function	Callable run as the task body.
task_arg	Argument passed to task_function.

~FreeRtosTask()

c7222::FreeRtosTask::~FreeRtosTask

(

)

Delete owned task resource if initialized.

Member Function Documentation

Delay()

static void c7222::FreeRtosTask::Delay ( std::uint32_t  ticks )

static

Delay current task for a number of ticks.

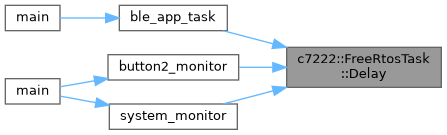

Here is the caller graph for this function:

Delete()

bool c7222::FreeRtosTask::Delete

(

std::uint32_t

ticks_to_wait = 0

)

Delete the task.

Parameters

ticks_to_wait

Optional platform-specific wait.

Returns

true if a task was deleted.

GetHandle()

void * c7222::FreeRtosTask::GetHandle

(

)

const

Returns

Opaque platform task handle.

GetPriority()

std::uint32_t c7222::FreeRtosTask::GetPriority

(

)

const

Get current task priority.

GetTickCount()

static std::uint32_t c7222::FreeRtosTask::GetTickCount ( )

static

Returns

Current scheduler tick count.

Here is the caller graph for this function:

IdlePriority()

static std::uint32_t c7222::FreeRtosTask::IdlePriority ( )

static

Returns

Idle task priority.

Here is the caller graph for this function:

Initialize()

bool c7222::FreeRtosTask::Initialize	(	const char *	name,
		std::uint32_t	stack_depth_words,
		std::uint32_t	priority,
		TaskFunction	task_function,
		void *	task_arg = nullptr
	)

Initialize (or re-initialize) a task.

Returns

true on successful creation/start.

Here is the caller graph for this function:

IsRunning()

bool c7222::FreeRtosTask::IsRunning

(

)

const

Returns

true if the task is currently considered running/alive.

IsValid()

bool c7222::FreeRtosTask::IsValid

(

)

const

Returns

true if wrapper owns a valid task handle.

MsToTicks()

static std::uint32_t c7222::FreeRtosTask::MsToTicks ( std::uint32_t  milliseconds )

static

Convert milliseconds to scheduler ticks.

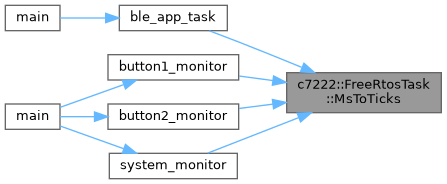

Here is the caller graph for this function:

Resume()

bool c7222::FreeRtosTask::Resume

(

)

Resume the task from task context.

ResumeFromISR()

bool c7222::FreeRtosTask::ResumeFromISR

(

)

Resume the task from ISR context.

RunTaskBody()

void c7222::FreeRtosTask::RunTaskBody

(

)

Internal bridge used by platform task-entry trampolines.

Public by design to avoid friend declarations for C-linkage bridge code.

SetPriority()

bool c7222::FreeRtosTask::SetPriority

(

std::uint32_t

priority

)

Set task priority.

StartScheduler()

static void c7222::FreeRtosTask::StartScheduler ( )

static

Start the scheduler.

Here is the caller graph for this function:

Suspend()

bool c7222::FreeRtosTask::Suspend

(

)

Suspend the task.

Yield()

static void c7222::FreeRtosTask::Yield ( )

static

Yield current task.

Member Data Documentation

kInfinite

constexpr std::uint32_t c7222::FreeRtosTask::kInfinite = std::numeric_limits<std::uint32_t>::max()

staticconstexpr

Sentinel tick value representing an infinite wait.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/freertos_wrappers/include/freertos_task.hpp
