c7222::FreeRtosTimer Class Reference

Ownership-based C++ wrapper for FreeRTOS software timers. More...

#include <freertos_timer.hpp>

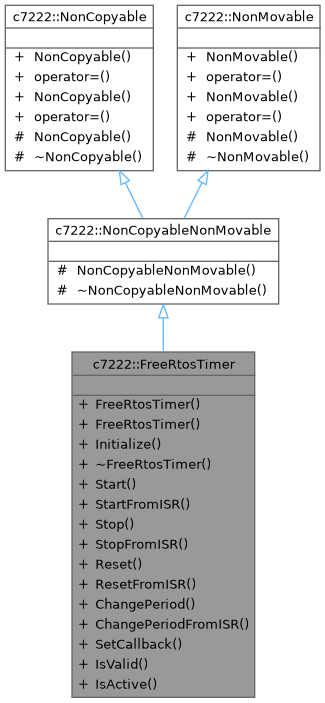

Inheritance diagram for c7222::FreeRtosTimer:

Collaboration diagram for c7222::FreeRtosTimer:

Public Types
enum class	Type : uint8_t { kOneShot , kPeriodic }

Public Member Functions
	FreeRtosTimer ()=default
	Create an uninitialized timer wrapper.
	FreeRtosTimer (const char *name, std::uint32_t period_ticks, Type type, std::function< void(void *)> callback=nullptr)
	Create a FreeRTOS software timer.
bool	Initialize (const char *name, std::uint32_t period_ticks, Type type, std::function< void(void *)> callback)
	Initialize (or re-initialize) the timer wrapper.
	~FreeRtosTimer ()
	Delete the timer if it was created.
bool	Start (std::uint32_t ticks_to_wait=0, void *callback_arg=nullptr)
	Start the timer.
bool	StartFromISR (void *callback_arg=nullptr)
	Start the timer from ISR context (no immediate yield).
bool	Stop (std::uint32_t ticks_to_wait=0)
	Stop the timer.
bool	StopFromISR ()
	Stop the timer from ISR context (no immediate yield).
bool	Reset (std::uint32_t ticks_to_wait=0)
	Reset the timer to start counting from zero.
bool	ResetFromISR ()
	Reset the timer from ISR context (no immediate yield).
bool	ChangePeriod (std::uint32_t period_ticks, std::uint32_t ticks_to_wait=0)
	Change the timer period.
bool	ChangePeriodFromISR (std::uint32_t period_ticks)
	Change the timer period from ISR context (no immediate yield).
void	SetCallback (std::function< void(void *)> callback)
	Register or replace the timer callback.
bool	IsValid () const
	Check if the timer handle is valid.
bool	IsActive () const
	Check whether the timer is active.
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Friends
void	FreeRtosTimerCallback (void *timer)
	Internal use only. This function is invoked as a callback when the FreeRTOS timer expires.

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Ownership-based C++ wrapper for FreeRTOS software timers.

This class provides a small, ownership-based interface around a FreeRTOS software timer handle. It uses a single internal callback trampoline (FreeRtosTimerCallback) to bridge the C callback signature to a stored std::function<void(void*)> in the C++ object.

Design principles:

• RAII ownership: the class owns a timer handle and deletes it in the destructor, avoiding leaks and dangling handles.
• Explicit initialization: construction is lightweight; actual RTOS resources are allocated in Initialize() (or the non-default constructor).
• Move/Copy safety: inherits NonCopyableNonMovable to prevent copying timer handles or callbacks across objects.
• Thin wrapper: keeps FreeRTOS semantics visible (ticks, start/stop/reset), rather than hiding them behind higher-level abstractions.

FreeRTOS timer summary and usage in this class:

• FreeRTOS software timers run in the Timer Service Task context, not in interrupt context. Callbacks must be non-blocking and thread-safe with respect to the rest of the system.
• Timers are created with a period in ticks and a type (one-shot or periodic). The scheduler triggers the callback when the timer expires.
• This class stores a std::function<void(void*)> that is invoked by the C callback trampoline with a user-supplied argument. SetCallback() updates that function at runtime.
• Start/Stop/Reset/ChangePeriod map directly to the underlying FreeRTOS APIs and accept optional ticks_to_wait parameters to control command queue blocking time.

Typical usage:

c7222::FreeRtosTimer timer("blink",
                           c7222::FreeRtosTask::MsToTicks(500),
                           c7222::FreeRtosTimer::Type::kPeriodic,
                           [](void* arg) {
                               (void)arg;
                               // periodic work
                           });
(void)timer.Start();

Member Enumeration Documentation

Type

enum class c7222::FreeRtosTimer::Type : uint8_t

strong

Enumerator
kOneShot	One-shot timer: fires once then stops.
kPeriodic	Periodic timer: fires repeatedly at the configured period.

Constructor & Destructor Documentation

FreeRtosTimer() [1/2]

c7222::FreeRtosTimer::FreeRtosTimer ( )

default

Create an uninitialized timer wrapper.

The handle is null until Initialize() is called. This allows construction without allocating RTOS resources.

FreeRtosTimer() [2/2]

c7222::FreeRtosTimer::FreeRtosTimer	(	const char *	name,
		std::uint32_t	period_ticks,
		Type	type,
		std::function< void(void *)>	callback = nullptr
	)

Create a FreeRTOS software timer.

Parameters

name	Human-readable timer name.
period_ticks	Timer period in ticks.
type	One-shot or periodic.
callback	Callback invoked on expiry (optional).

~FreeRtosTimer()

c7222::FreeRtosTimer::~FreeRtosTimer

(

)

Delete the timer if it was created.

This is safe to call even if the timer was never initialized.

Member Function Documentation

ChangePeriod()

bool c7222::FreeRtosTimer::ChangePeriod	(	std::uint32_t	period_ticks,
		std::uint32_t	ticks_to_wait = 0
	)

Change the timer period.

The new period takes effect after the command is processed by the timer service task.

Parameters

period_ticks	New period in ticks.
ticks_to_wait	Maximum ticks to block if the timer command queue is full (0 = no wait).

Returns

true if the command was accepted, false otherwise.

ChangePeriodFromISR()

bool c7222::FreeRtosTimer::ChangePeriodFromISR

(

std::uint32_t

period_ticks

)

Change the timer period from ISR context (no immediate yield).

Any unblocked task will run on the next tick/schedule point.

Returns

true if the command was accepted, false otherwise.

Initialize()

bool c7222::FreeRtosTimer::Initialize	(	const char *	name,
		std::uint32_t	period_ticks,
		Type	type,
		std::function< void(void *)>	callback
	)

Initialize (or re-initialize) the timer wrapper.

Allocates the underlying FreeRTOS timer and binds the callback trampoline. If the wrapper was previously initialized, the prior handle is deleted before creating a new one.

Parameters

name	Human-readable timer name.
period_ticks	Timer period in ticks.
type	One-shot or periodic.
callback	Callback invoked on expiry (optional).

Returns

true if the timer was created successfully, false otherwise.

Here is the caller graph for this function:

IsActive()

bool c7222::FreeRtosTimer::IsActive

(

)

const

Check whether the timer is active.

Returns

true if the timer is currently running, false otherwise.

IsValid()

bool c7222::FreeRtosTimer::IsValid

(

)

const

Check if the timer handle is valid.

Returns

true if Initialize() succeeded and the handle is non-null.

Here is the caller graph for this function:

Reset()

bool c7222::FreeRtosTimer::Reset

(

std::uint32_t

ticks_to_wait = 0

)

Reset the timer to start counting from zero.

For periodic timers, this restarts the period. For one-shot timers, this arms the timer again.

Parameters

ticks_to_wait

Maximum ticks to block if the timer command queue is full (0 = no wait).

Returns

true if the command was accepted, false otherwise.

ResetFromISR()

bool c7222::FreeRtosTimer::ResetFromISR

(

)

Reset the timer from ISR context (no immediate yield).

Any unblocked task will run on the next tick/schedule point.

Returns

true if the command was accepted, false otherwise.

SetCallback()

void c7222::FreeRtosTimer::SetCallback

(

std::function< void(void *)>

callback

)

Register or replace the timer callback.

The callback runs in the FreeRTOS timer service task context. It must be short, non-blocking, and thread-safe with respect to shared resources. Passing nullptr clears the callback.

Start()

bool c7222::FreeRtosTimer::Start	(	std::uint32_t	ticks_to_wait = 0,
		void *	callback_arg = nullptr
	)

Start the timer.

Enqueues a start command to the FreeRTOS timer service task.

Parameters

ticks_to_wait	Maximum ticks to block if the timer command queue is full (0 = no wait).
callback_arg	Argument passed to the timer callback on expiry.

Returns

true if the command was accepted, false otherwise.

Here is the caller graph for this function:

StartFromISR()

bool c7222::FreeRtosTimer::StartFromISR

(

void *

callback_arg = nullptr

)

Start the timer from ISR context (no immediate yield).

This variant does not expose higher_priority_task_woken; any unblocked task will run on the next tick/schedule point.

Parameters

callback_arg

Argument passed to the timer callback on expiry.

Returns

true if the command was accepted, false otherwise.

Here is the caller graph for this function:

Stop()

bool c7222::FreeRtosTimer::Stop

(

std::uint32_t

ticks_to_wait = 0

)

Stop the timer.

Enqueues a stop command to the FreeRTOS timer service task.

Parameters

ticks_to_wait

Maximum ticks to block if the timer command queue is full (0 = no wait).

Returns

true if the command was accepted, false otherwise.

StopFromISR()

bool c7222::FreeRtosTimer::StopFromISR

(

)

Stop the timer from ISR context (no immediate yield).

Any unblocked task will run on the next tick/schedule point.

Returns

true if the command was accepted, false otherwise.

Friends And Related Symbol Documentation

FreeRtosTimerCallback

void FreeRtosTimerCallback ( void *  timer )

friend

Internal use only. This function is invoked as a callback when the FreeRTOS timer expires.

This function should not be used directly by the user. It is intended to be called by the FreeRTOS timer infrastructure to handle timer expiration events. Ensure that any logic that needs to be executed on timer expiry is encapsulated within the FreeRtosTimer class and its associated callback mechanism.

Parameters

timer

A pointer to the timer instance that has expired.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/freertos_wrappers/include/freertos_timer.hpp
