c7222::GpioOut Class Reference

GPIO output-only wrapper with output configuration and drive strength. More...

#include <gpio.hpp>

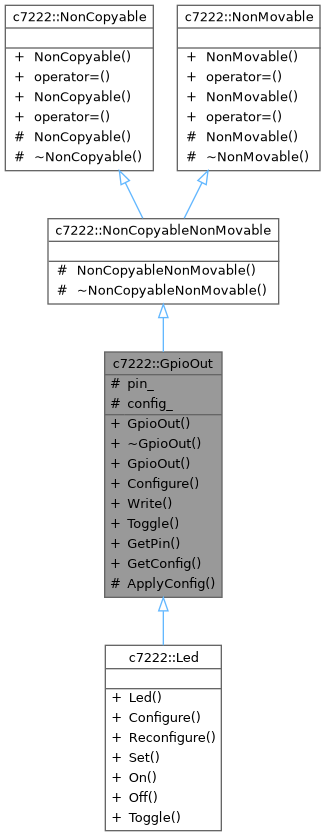

Inheritance diagram for c7222::GpioOut:

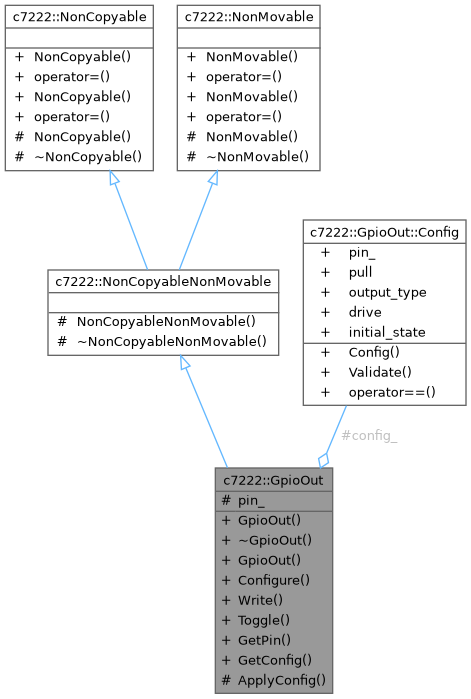

Collaboration diagram for c7222::GpioOut:

Classes
struct	Config
	Configuration structure for output GPIO setup. More...

Public Member Functions
	GpioOut (uint32_t pin)
	Create a GPIO output with default configuration.
virtual	~GpioOut ()
	Destructor.
	GpioOut (uint32_t pin, const Config &config)
	Create a GPIO output with the given configuration.
void	Configure (const Config &config)
	Apply a new configuration.
void	Write (bool value)
	Write an output value.
void	Toggle ()
	Toggle the pin output.
uint32_t	GetPin () const
	Return the GPIO number.
Config	GetConfig () const
	Return the cached configuration.
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Protected Member Functions
void	ApplyConfig ()
	Apply internal configuration to the hardware.
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Protected Attributes
uint32_t	pin_
	GPIO pin number managed by this instance.
Config	config_
	Cached configuration used to (re)apply platform settings.

Detailed Description

GPIO output-only wrapper with output configuration and drive strength.

This class owns an output pin configuration and exposes Write()/Toggle(). Output configuration includes output type (push-pull vs. open-drain), pull mode, drive strength, and the initial output state.

Constructor & Destructor Documentation

GpioOut() [1/2]

c7222::GpioOut::GpioOut ( uint32_t  pin )

inlineexplicit

Create a GPIO output with default configuration.

~GpioOut()

virtual c7222::GpioOut::~GpioOut ( )

virtual

Destructor.

Platform backends may use this to unregister the pin from internal maps.

GpioOut() [2/2]

c7222::GpioOut::GpioOut ( uint32_t  pin, const Config &  config  )

explicit

Create a GPIO output with the given configuration.

Parameters

pin	GPIO number.
config	Initial configuration.

Member Function Documentation

ApplyConfig()

void c7222::GpioOut::ApplyConfig ( )

protected

Apply internal configuration to the hardware.

Implemented by the platform backend.

Configure()

void c7222::GpioOut::Configure

(

const Config &

config

)

Apply a new configuration.

Parameters

config

New configuration.

GetConfig()

Config c7222::GpioOut::GetConfig ( ) const

inline

Return the cached configuration.

GetPin()

uint32_t c7222::GpioOut::GetPin ( ) const

inline

Return the GPIO number.

Toggle()

void c7222::GpioOut::Toggle

(

)

Toggle the pin output.

Write()

void c7222::GpioOut::Write

(

bool

value

)

Write an output value.

Parameters

value

Logic level to drive.

Member Data Documentation

config_

Config c7222::GpioOut::config_

protected

Cached configuration used to (re)apply platform settings.

pin_

uint32_t c7222::GpioOut::pin_

protected

GPIO pin number managed by this instance.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/devices/include/gpio.hpp
