c7222::OnBoardLED Class Reference

Simple on-board LED controller. More...

#include <onboard_led.hpp>

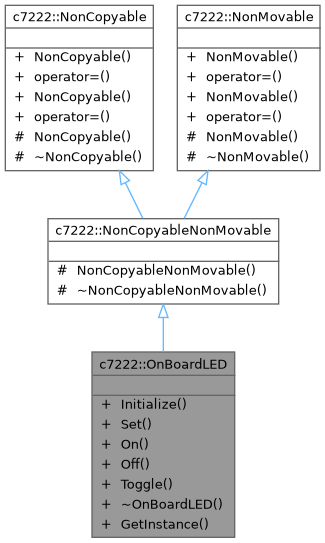

Inheritance diagram for c7222::OnBoardLED:

Collaboration diagram for c7222::OnBoardLED:

Public Member Functions
bool	Initialize ()
	Initialize the on-board LED hardware.
void	Set (bool on)
	Set the LED state.
void	On ()
	Turn the LED on.
void	Off ()
	Turn the LED off.
void	Toggle ()
	Toggle the LED state.
	~OnBoardLED ()=default
	Destructor.
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Static Public Member Functions
static OnBoardLED *	GetInstance ()
	Get the singleton instance.

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Simple on-board LED controller.

Design intent:

• Singleton access: only one on-board LED exists, so a singleton is used.
• Explicit initialization: call Initialize() once before using On(), Off(), or Toggle(). The Platform does not auto-initialize this device.

Example:

auto* led = c7222::OnBoardLED::GetInstance();
led->Initialize();
led->On();

Constructor & Destructor Documentation

~OnBoardLED()

c7222::OnBoardLED::~OnBoardLED ( )

default

Destructor.

Public to allow std::unique_ptr default deleter.

Member Function Documentation

GetInstance()

static OnBoardLED * c7222::OnBoardLED::GetInstance ( )

static

Get the singleton instance.

Here is the caller graph for this function:

Initialize()

bool c7222::OnBoardLED::Initialize

(

)

Initialize the on-board LED hardware.

On Pico W, this may initialize the CYW43 subsystem if required. Returns true on success.

Here is the caller graph for this function:

Off()

void c7222::OnBoardLED::Off

(

)

Turn the LED off.

Here is the caller graph for this function:

On()

void c7222::OnBoardLED::On

(

)

Turn the LED on.

Set()

void c7222::OnBoardLED::Set

(

bool

on

)

Set the LED state.

Parameters

on	true to turn on, false to turn off.

Toggle()

void c7222::OnBoardLED::Toggle

(

)

Toggle the LED state.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/devices/include/onboard_led.hpp
