c7222::OnChipTemperatureSensor Class Reference

Reads the RP2040 on-chip temperature sensor via the ADC. More...

#include <onchip_temperature_sensor.hpp>

Inheritance diagram for c7222::OnChipTemperatureSensor:

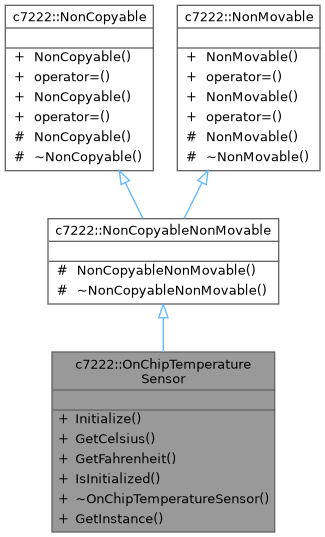

Collaboration diagram for c7222::OnChipTemperatureSensor:

Public Member Functions
bool	Initialize ()
	Initialize the ADC and temperature sensor.
float	GetCelsius () const
	Read temperature in degrees Celsius.
float	GetFahrenheit () const
	Read temperature in degrees Fahrenheit.
bool	IsInitialized () const
	Check if the sensor has been initialized.
	~OnChipTemperatureSensor ()=default
	Destructor.
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Static Public Member Functions
static OnChipTemperatureSensor *	GetInstance ()
	Get the singleton instance.

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Detailed Description

Reads the RP2040 on-chip temperature sensor via the ADC.

Design intent:

• Singleton access: only one on-chip sensor exists, so a singleton is used.
• Explicit initialization: call Initialize() once before reading. The Platform does not auto-initialize this device.

Example:

auto* sensor = c7222::OnChipTemperatureSensor::GetInstance();
sensor->Initialize();
float temp_c = sensor->GetCelsius();

Constructor & Destructor Documentation

~OnChipTemperatureSensor()

c7222::OnChipTemperatureSensor::~OnChipTemperatureSensor ( )

default

Destructor.

Public to allow std::unique_ptr default deleter.

Member Function Documentation

GetCelsius()

float c7222::OnChipTemperatureSensor::GetCelsius

(

)

const

Read temperature in degrees Celsius.

Returns

Temperature in Celsius, or NaN if not initialized.

Here is the caller graph for this function:

GetFahrenheit()

float c7222::OnChipTemperatureSensor::GetFahrenheit

(

)

const

Read temperature in degrees Fahrenheit.

Returns

Temperature in Fahrenheit, or NaN if not initialized.

GetInstance()

static OnChipTemperatureSensor * c7222::OnChipTemperatureSensor::GetInstance ( )

static

Get the singleton instance.

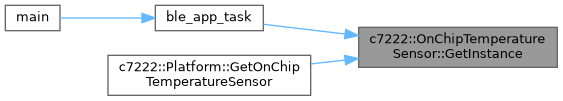

Here is the caller graph for this function:

Initialize()

bool c7222::OnChipTemperatureSensor::Initialize

(

)

Initialize the ADC and temperature sensor.

Returns

true when initialization succeeds.

Here is the caller graph for this function:

IsInitialized()

bool c7222::OnChipTemperatureSensor::IsInitialized ( ) const

inline

Check if the sensor has been initialized.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/devices/include/onchip_temperature_sensor.hpp
