UUID storage for 16-bit and 128-bit UUIDs. More...

#include <uuid.hpp>

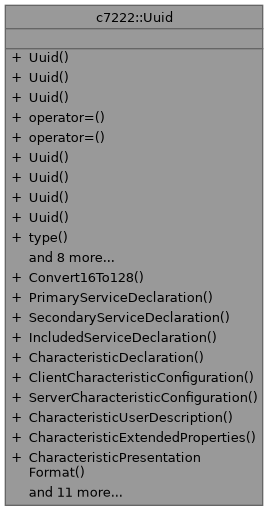

Collaboration diagram for c7222::Uuid:

Public Types
enum class	Type : uint8_t { Invalid = 0 , k16Bit = 1 , k128Bit = 2 }
	UUID representation type. More...

enum class	AttributeType : uint16_t { kPrimaryServiceDeclaration = 0x2800 , kSecondaryServiceDeclaration = 0x2801 , kIncludedServiceDeclaration = 0x2802 , kCharacteristicDeclaration = 0x2803 , kServerCharacteristicConfiguration = 0x2903 , kClientCharacteristicConfiguration = 0x2902 , kCharacteristicUserDescription = 0x2901 , kCharacteristicExtendedProperties = 0x2900 , kCharacteristicPresentationFormat = 0x2904 , kCharacteristicAggregateFormat = 0x2905 }
	Standard GATT Attribute Type UUIDs (16-bit). More...

Public Member Functions
	Uuid ()=default
	Constructs an invalid/empty UUID.

	Uuid (const Uuid &)=default
	Copy-constructs a UUID.

	Uuid (Uuid &&) noexcept=default
	Move-constructs a UUID.

Uuid &	operator= (const Uuid &)=default
	Copy assignment operator.

Uuid &	operator= (Uuid &&) noexcept=default
	Move assignment operator.

	Uuid (uint16_t uuid16)
	Constructs a 16-bit UUID from a numeric value.

	Uuid (const uint8_t *uuid, size_t size)
	Constructs a UUID from a raw byte buffer.

	Uuid (const std::array< uint8_t, 16 > &uuid)
	Constructs a 128-bit UUID from an array.

	Uuid (const std::array< uint8_t, 2 > &uuid)
	Constructs a 16-bit UUID from an array.

Type	type () const
	Returns the UUID type.

bool	Is16Bit () const
	Returns true if this UUID is 16-bit.

bool	Is128Bit () const
	Returns true if this UUID is 128-bit.

bool	IsValid () const
	Returns true if the UUID has been initialized to 16- or 128-bit.

uint16_t	Get16Bit () const
	Returns the 16-bit UUID value.

const std::array< uint8_t, 16 > &	Get128Bit () const
	Returns the 128-bit UUID bytes.

const uint8_t *	data () const
	Returns the raw UUID storage pointer.

bool	operator== (const Uuid &other) const
	Equality comparison based on UUID type and value.

bool	operator!= (const Uuid &other) const
	Inequality comparison based on UUID type and value.

Static Public Member Functions
static Uuid	Convert16To128 (const Uuid &uuid16)
	Converts a 16-bit UUID to a 128-bit Bluetooth base UUID.

static Uuid	PrimaryServiceDeclaration ()
	Create a Primary Service Declaration UUID (0x2800).

static Uuid	SecondaryServiceDeclaration ()
	Create a Secondary Service Declaration UUID (0x2801).

static Uuid	IncludedServiceDeclaration ()
	Create an Included Service Declaration UUID (0x2802).

static Uuid	CharacteristicDeclaration ()
	Create a Characteristic Declaration UUID (0x2803).

static Uuid	ClientCharacteristicConfiguration ()
	Create a Client Characteristic Configuration UUID (0x2902).

static Uuid	ServerCharacteristicConfiguration ()
	Create a Server Characteristic Configuration UUID (0x2903).

static Uuid	CharacteristicUserDescription ()
	Create a Characteristic User Description UUID (0x2901).

static Uuid	CharacteristicExtendedProperties ()
	Create a Characteristic Extended Properties UUID (0x2900).

static Uuid	CharacteristicPresentationFormat ()
	Create a Characteristic Presentation Format UUID (0x2904).

static Uuid	CharacteristicAggregateFormat ()
	Create a Characteristic Aggregate Format UUID (0x2905).

static bool	IsPrimaryServiceDeclaration (const Uuid &uuid)
	Check if UUID is Primary Service Declaration (0x2800).

static bool	IsSecondaryServiceDeclaration (const Uuid &uuid)
	Check if UUID is Secondary Service Declaration (0x2801).

static bool	IsIncludedServiceDeclaration (const Uuid &uuid)
	Check if UUID is Included Service Declaration (0x2802).

static bool	IsCharacteristicDeclaration (const Uuid &uuid)
	Check if UUID is Characteristic Declaration (0x2803).

static bool	IsServiceDeclaration (const Uuid &uuid)
	Check if UUID is any Service Declaration (Primary or Secondary).

static bool	IsClientCharacteristicConfiguration (const Uuid &uuid)
	Check if UUID is Client Characteristic Configuration (0x2902).

static bool	IsServerCharacteristicConfiguration (const Uuid &uuid)
	Check if UUID is Server Characteristic Configuration (0x2903).

static bool	IsCharacteristicUserDescription (const Uuid &uuid)
	Check if UUID is Characteristic User Description (0x2901).

static bool	IsCharacteristicExtendedProperties (const Uuid &uuid)
	Check if UUID is Characteristic Extended Properties (0x2900).

static bool	IsDescriptor (const Uuid &uuid)
	Check if UUID matches a known descriptor type.

Friends
std::ostream &	operator<< (std::ostream &os, const Uuid &uuid)
	Prints the UUID to a stream.

Detailed Description

UUID storage for 16-bit and 128-bit UUIDs.

The first two bytes of uuid_ are used for 16-bit UUIDs and the full 16-byte array is used for 128-bit UUIDs. On RP2040, 16-bit UUIDs are stored in little-endian order to match the BTstack ATT DB layout. For 128-bit UUIDs, the byte order matches the standard UUID string format shown by the stream operator.

The class also defines common 16-bit GATT attribute type UUIDs and helper predicates to recognize declaration/descriptor UUIDs.

Note: The UUID class provides type-safe and endian-aware access to 16-bit and 128-bit UUID values, ensuring compatibility with Bluetooth Low Energy (BLE) specifications and BTstack's attribute database layout.; You can find BTstack defined UUIDs in "bluetooth_gatt.h" file in ".pico-sdk/sdk/2.2.0/lib/btstack/src/bluetooth_gatt.h"

Example (16-bit construction and access):

c7222::Uuid uuid16(0x180D);

uint16_t short_id = uuid16.Get16Bit();

c7222::Uuid

UUID storage for 16-bit and 128-bit UUIDs.

Definition uuid.hpp:53

Example (128-bit construction and access):

std::array<uint8_t, 16> bytes = {0x12, 0x34, 0x56, 0x78, 0x9A, 0xBC,
                                 0xDE, 0xF0, 0x11, 0x22, 0x33, 0x44,
                                 0x55, 0x66, 0x77, 0x88};
c7222::Uuid uuid128(bytes);
const auto& raw = uuid128.Get128Bit();

Member Enumeration Documentation

◆ AttributeType

enum class c7222::Uuid::AttributeType : uint16_t

strong

Standard GATT Attribute Type UUIDs (16-bit).

These values identify service/characteristic declarations and common descriptors as defined by Bluetooth Assigned Numbers.

Enumerator
kPrimaryServiceDeclaration	Primary Service Declaration attribute (0x2800).
kSecondaryServiceDeclaration	Secondary Service Declaration attribute (0x2801).
kIncludedServiceDeclaration	Included Service Declaration attribute (0x2802).
kCharacteristicDeclaration	Characteristic Declaration attribute (0x2803).
kServerCharacteristicConfiguration	Server Characteristic Configuration Descriptor (0x2903).
kClientCharacteristicConfiguration	Client Characteristic Configuration Descriptor (0x2902).
kCharacteristicUserDescription	Characteristic User Description Descriptor (0x2901).
kCharacteristicExtendedProperties	Characteristic Extended Properties Descriptor (0x2900).
kCharacteristicPresentationFormat	Characteristic Presentation Format Descriptor (0x2904).
kCharacteristicAggregateFormat	Characteristic Aggregate Format Descriptor (0x2905).

◆ Type

enum class c7222::Uuid::Type : uint8_t

strong

UUID representation type.

Enumerator
Invalid	Uninitialized or invalid UUID.
k16Bit	16-bit UUID stored in the first two bytes.
k128Bit	128-bit UUID stored in the full array.

Constructor & Destructor Documentation

◆ Uuid() [1/7]

c7222::Uuid::Uuid ( )

default

Constructs an invalid/empty UUID.

◆ Uuid() [2/7]

c7222::Uuid::Uuid ( const Uuid & )

default

Copy-constructs a UUID.

◆ Uuid() [3/7]

c7222::Uuid::Uuid ( Uuid && )

defaultnoexcept

Move-constructs a UUID.

◆ Uuid() [4/7]

c7222::Uuid::Uuid ( uint16_t uuid16 )

inlineexplicit

Constructs a 16-bit UUID from a numeric value.

Parameters

uuid16 16-bit UUID value (stored in little-endian order).

◆ Uuid() [5/7]

c7222::Uuid::Uuid	(	const uint8_t *	uuid,
		size_t	size
	)

Constructs a UUID from a raw byte buffer.

Parameters

uuid	Pointer to 2 or 16 bytes of UUID data.
size	Size of the buffer in bytes (must be 2 or 16).

For 16-bit UUIDs, the buffer is interpreted as little-endian. For 128-bit UUIDs, the buffer is interpreted in standard byte order.

◆ Uuid() [6/7]

c7222::Uuid::Uuid ( const std::array< uint8_t, 16 > & uuid )

inlineexplicit

Constructs a 128-bit UUID from an array.

Parameters

uuid	128-bit UUID bytes in standard order.

◆ Uuid() [7/7]

c7222::Uuid::Uuid ( const std::array< uint8_t, 2 > & uuid )

inlineexplicit

Constructs a 16-bit UUID from an array.

Parameters

uuid	16-bit UUID bytes in little-endian order.

Member Function Documentation

◆ CharacteristicAggregateFormat()

static Uuid c7222::Uuid::CharacteristicAggregateFormat ( )

static

Create a Characteristic Aggregate Format UUID (0x2905).

◆ CharacteristicDeclaration()

static Uuid c7222::Uuid::CharacteristicDeclaration ( )

static

Create a Characteristic Declaration UUID (0x2803).

◆ CharacteristicExtendedProperties()

static Uuid c7222::Uuid::CharacteristicExtendedProperties ( )

static

Create a Characteristic Extended Properties UUID (0x2900).

◆ CharacteristicPresentationFormat()

static Uuid c7222::Uuid::CharacteristicPresentationFormat ( )

static

Create a Characteristic Presentation Format UUID (0x2904).

◆ CharacteristicUserDescription()

static Uuid c7222::Uuid::CharacteristicUserDescription ( )

static

Create a Characteristic User Description UUID (0x2901).

◆ ClientCharacteristicConfiguration()

static Uuid c7222::Uuid::ClientCharacteristicConfiguration ( )

static

Create a Client Characteristic Configuration UUID (0x2902).

◆ Convert16To128()

static Uuid c7222::Uuid::Convert16To128 ( const Uuid & uuid16 )

static

Converts a 16-bit UUID to a 128-bit Bluetooth base UUID.

Parameters

uuid16 16-bit UUID to expand.

Returns: 128-bit UUID using the Bluetooth base UUID format.

◆ data()

const uint8_t * c7222::Uuid::data ( ) const

inline

Returns the raw UUID storage pointer.

Returns: Pointer to the internal UUID byte array.

The byte order matches the storage rules documented above.

◆ Get128Bit()

const std::array< uint8_t, 16 > & c7222::Uuid::Get128Bit ( ) const

inline

Returns the 128-bit UUID bytes.

Returns: 128-bit UUID byte array.

◆ Get16Bit()

uint16_t c7222::Uuid::Get16Bit ( ) const

inline

Returns the 16-bit UUID value.

Returns: 16-bit UUID value.

◆ IncludedServiceDeclaration()

static Uuid c7222::Uuid::IncludedServiceDeclaration ( )

static

Create an Included Service Declaration UUID (0x2802).

◆ Is128Bit()

bool c7222::Uuid::Is128Bit ( ) const

Returns true if this UUID is 128-bit.

Here is the caller graph for this function:

◆ Is16Bit()

bool c7222::Uuid::Is16Bit ( ) const

inline

Returns true if this UUID is 16-bit.

◆ IsCharacteristicDeclaration()

static bool c7222::Uuid::IsCharacteristicDeclaration ( const Uuid & uuid )

static

Check if UUID is Characteristic Declaration (0x2803).

◆ IsCharacteristicExtendedProperties()

static bool c7222::Uuid::IsCharacteristicExtendedProperties ( const Uuid & uuid )

static

Check if UUID is Characteristic Extended Properties (0x2900).

◆ IsCharacteristicUserDescription()

static bool c7222::Uuid::IsCharacteristicUserDescription ( const Uuid & uuid )

static

Check if UUID is Characteristic User Description (0x2901).

◆ IsClientCharacteristicConfiguration()

static bool c7222::Uuid::IsClientCharacteristicConfiguration ( const Uuid & uuid )

static

Check if UUID is Client Characteristic Configuration (0x2902).

◆ IsDescriptor()

static bool c7222::Uuid::IsDescriptor ( const Uuid & uuid )

static

Check if UUID matches a known descriptor type.

◆ IsIncludedServiceDeclaration()

static bool c7222::Uuid::IsIncludedServiceDeclaration ( const Uuid & uuid )

static

Check if UUID is Included Service Declaration (0x2802).

◆ IsPrimaryServiceDeclaration()

static bool c7222::Uuid::IsPrimaryServiceDeclaration ( const Uuid & uuid )

static

Check if UUID is Primary Service Declaration (0x2800).

◆ IsSecondaryServiceDeclaration()

static bool c7222::Uuid::IsSecondaryServiceDeclaration ( const Uuid & uuid )

static

Check if UUID is Secondary Service Declaration (0x2801).

◆ IsServerCharacteristicConfiguration()

static bool c7222::Uuid::IsServerCharacteristicConfiguration ( const Uuid & uuid )

static

Check if UUID is Server Characteristic Configuration (0x2903).

◆ IsServiceDeclaration()

static bool c7222::Uuid::IsServiceDeclaration ( const Uuid & uuid )

static

Check if UUID is any Service Declaration (Primary or Secondary).

◆ IsValid()

bool c7222::Uuid::IsValid ( ) const

inline

Returns true if the UUID has been initialized to 16- or 128-bit.

Here is the caller graph for this function:

◆ operator!=()

bool c7222::Uuid::operator!= ( const Uuid & other ) const

inline

Inequality comparison based on UUID type and value.

Parameters

other UUID to compare against.

Returns: true when type or value differ.

◆ operator=() [1/2]

Uuid & c7222::Uuid::operator= ( const Uuid & )

default

Copy assignment operator.

◆ operator=() [2/2]

Uuid & c7222::Uuid::operator= ( Uuid && )

defaultnoexcept

Move assignment operator.

◆ operator==()

bool c7222::Uuid::operator== ( const Uuid & other ) const

Equality comparison based on UUID type and value.

Parameters

other UUID to compare against.

Returns: true when type and value match.

◆ PrimaryServiceDeclaration()

static Uuid c7222::Uuid::PrimaryServiceDeclaration ( )

static

Create a Primary Service Declaration UUID (0x2800).

◆ SecondaryServiceDeclaration()

static Uuid c7222::Uuid::SecondaryServiceDeclaration ( )

static

Create a Secondary Service Declaration UUID (0x2801).

◆ ServerCharacteristicConfiguration()

static Uuid c7222::Uuid::ServerCharacteristicConfiguration ( )

static

Create a Server Characteristic Configuration UUID (0x2903).

◆ type()

Type c7222::Uuid::type ( ) const

inline

Returns the UUID type.

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const Uuid &	uuid
	)

friend

Prints the UUID to a stream.

For 16-bit UUIDs the output is 0xNNNN. For 128-bit UUIDs the output is the standard 8-4-4-4-12 hex format.

This is the definition corresponding to the friend declaration above.

The documentation for this class was generated from the following file:

libs/elec_c7222/ble/gatt/include/uuid.hpp

Public Types

Public Member Functions

Static Public Member Functions

Friends

Detailed Description

Member Enumeration Documentation

◆ AttributeType

◆ Type

Constructor & Destructor Documentation

◆ Uuid() [1/7]

◆ Uuid() [2/7]

◆ Uuid() [3/7]

◆ Uuid() [4/7]

◆ Uuid() [5/7]

◆ Uuid() [6/7]

◆ Uuid() [7/7]

Member Function Documentation

◆ CharacteristicAggregateFormat()

◆ CharacteristicDeclaration()

◆ CharacteristicExtendedProperties()

◆ CharacteristicPresentationFormat()

◆ CharacteristicUserDescription()

◆ ClientCharacteristicConfiguration()

◆ Convert16To128()

◆ data()

◆ Get128Bit()

◆ Get16Bit()

◆ IncludedServiceDeclaration()

◆ Is128Bit()

◆ Is16Bit()

◆ IsCharacteristicDeclaration()

◆ IsCharacteristicExtendedProperties()

◆ IsCharacteristicUserDescription()

◆ IsClientCharacteristicConfiguration()

◆ IsDescriptor()

◆ IsIncludedServiceDeclaration()

◆ IsPrimaryServiceDeclaration()

◆ IsSecondaryServiceDeclaration()

◆ IsServerCharacteristicConfiguration()

◆ IsServiceDeclaration()

◆ IsValid()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ PrimaryServiceDeclaration()

◆ SecondaryServiceDeclaration()

◆ ServerCharacteristicConfiguration()

◆ type()

Friends And Related Symbol Documentation

◆ operator<<
