ATT attribute wrapper with BTstack-compatible fields. More...

#include <attribute.hpp>

Inheritance diagram for c7222::Attribute:

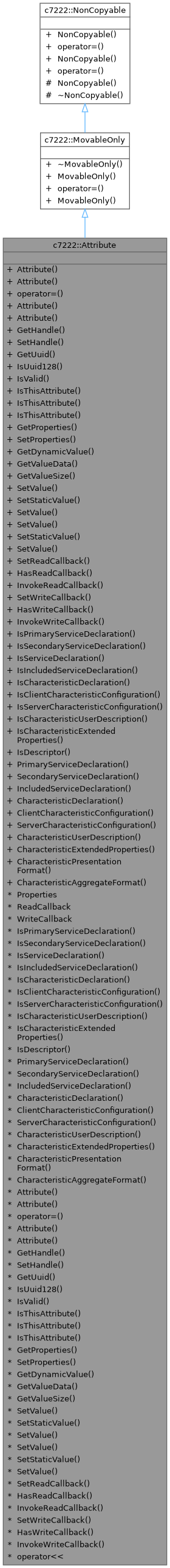

Collaboration diagram for c7222::Attribute:

Public Types
Types
enum class	Properties : std::uint16_t { kNone = 0x0000 , kWritePermissionBit0 = 0x0001 , kRead = 0x0002 , kWriteWithoutResponse = 0x0004 , kWrite = 0x0008 , kWritePermissionBit1 = 0x0010 , kReadPermissionSc = 0x0020 , kAuthenticatedSignedWrite = 0x0040 , kWritePermissionSc = 0x0080 , kDynamic = 0x0100 , kUuid128 = 0x0200 , kReadPermissionBit0 = 0x0400 , kReadPermissionBit1 = 0x0800 , kEncryptionKeySizeMask = 0xF000 }
	Attribute flags with direct BTstack ATT_PROPERTY_* mapping. More...

using	ReadCallback = std::function< uint16_t(uint16_t offset, uint8_t *buffer, uint16_t buffer_size)>
	Callback type for reading attribute value. Parameters: offset, destination buffer, buffer size Returns: number of bytes read, or ATT error code if > 0xfe00.

using	WriteCallback = std::function< BleError(uint16_t offset, const uint8_t *data, uint16_t size)>
	Callback type for writing attribute value. Parameters: offset, source data, data size Returns: BleError code (BleError::kSuccess = success)

Public Member Functions
Construction and Assignment
	Attribute ()=default
	Default-construct an invalid attribute.

	Attribute (Attribute &&) noexcept=default
	Move constructor (transfers storage and callbacks).

Attribute &	operator= (Attribute &&) noexcept=default
	Move assignment operator (transfers storage and callbacks).

	Attribute (const Uuid &uuid, uint16_t properties, uint16_t handle=0)
	Construct an attribute with a UUID and properties.

	Attribute (const Uuid &uuid, uint16_t properties, const uint8_t *data, size_t size, uint16_t handle=0)
	Construct an attribute with a UUID, properties, and value data.

Identity and Matching

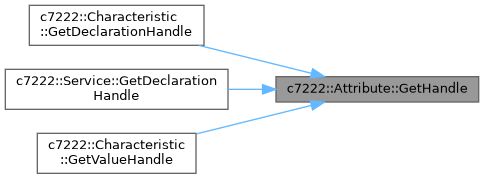

uint16_t	GetHandle () const
	Get the ATT handle.

void	SetHandle (uint16_t handle)
	Set the ATT handle.

const Uuid &	GetUuid () const
	Get the attribute UUID.

bool	IsUuid128 () const
	Check if the attribute UUID is 128-bit.

bool	IsValid () const
	Check if this attribute has a valid handle and UUID.

bool	IsThisAttribute (const Uuid &uuid) const
	Check if this attribute matches a UUID.

bool	IsThisAttribute (uint16_t handle) const
	Check if this attribute matches a handle.

bool	IsThisAttribute (const Uuid &uuid, uint16_t handle) const
	Check if this attribute matches both UUID and handle.

Properties

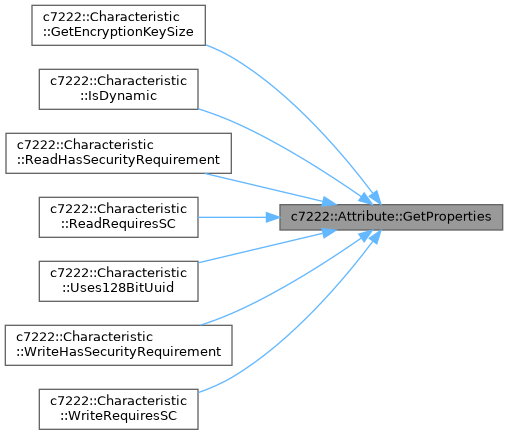

uint16_t	GetProperties () const
	Get the properties bitmask of the attribute.

void	SetProperties (uint16_t properties)
	Set the properties bitmask of the attribute.

Value Accessors and Mutators
const std::vector< uint8_t > &	GetDynamicValue () const
	Get value as vector (for compatibility). Note: Returns empty for static attributes because they are DB-backed.

const uint8_t *	GetValueData () const
	Get pointer to attribute value data.

size_t	GetValueSize () const
	Get size of attribute value.

bool	SetValue (const uint8_t *data, size_t size)
	Set attribute value. Only allowed for dynamic attributes; static attributes are immutable because their bytes reside in the ATT DB image.

bool	SetStaticValue (const uint8_t *data, size_t size)
	Set attribute value for static attributes. Copies the data into owned storage and updates the static value pointer.

bool	SetValue (std::vector< uint8_t > &&data)
	Set attribute value from rvalue vector (move semantics). Only allowed for dynamic attributes.

bool	SetValue (const std::vector< uint8_t > &data)
	Set attribute value from lvalue vector (copy semantics). Only allowed for dynamic attributes.

bool	SetStaticValue (const std::vector< uint8_t > &data)
	Set attribute value for static attributes from vector (copy semantics).

template<typename T >
bool	SetValue (const T &value)
	Set attribute value from a typed value (generic template). Converts any trivial type to bytes and stores as the attribute value. Only allowed for dynamic attributes.

Callbacks
void	SetReadCallback (ReadCallback callback)
	Set the read callback for this attribute. Called when a remote client reads this attribute.

bool	HasReadCallback () const
	Check if a read callback is registered.

uint16_t	InvokeReadCallback (uint16_t offset, uint8_t *buffer, uint16_t buffer_size) const
	Invoke the read callback.

void	SetWriteCallback (WriteCallback callback)
	Set the write callback for this attribute. Called when a remote client writes this attribute.

bool	HasWriteCallback () const
	Check if a write callback is registered.

BleError	InvokeWriteCallback (uint16_t offset, const uint8_t *data, uint16_t size)
	Invoke the write callback.

Public Member Functions inherited from c7222::MovableOnly
virtual	~MovableOnly ()=default

	MovableOnly (MovableOnly &&)=default

MovableOnly &	operator= (MovableOnly &&)=default

	MovableOnly ()=default

Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete

NonCopyable &	operator= (const NonCopyable &)=delete

	NonCopyable (NonCopyable &&)=default

NonCopyable &	operator= (NonCopyable &&)=default

Static Public Member Functions
Attribute Type Checks (Attribute wrappers)
For UUID-only checks, use the corresponding Uuid::Is* helpers.
static bool	IsPrimaryServiceDeclaration (const Attribute &attr)
	Check if an attribute is a Primary Service Declaration.

static bool	IsSecondaryServiceDeclaration (const Attribute &attr)
	Check if an attribute is a Secondary Service Declaration.

static bool	IsServiceDeclaration (const Attribute &attr)
	Check if an attribute is any Service Declaration (Primary or Secondary).

static bool	IsIncludedServiceDeclaration (const Attribute &attr)
	Check if an attribute is an Included Service Declaration.

static bool	IsCharacteristicDeclaration (const Attribute &attr)
	Check if an attribute is a Characteristic Declaration.

static bool	IsClientCharacteristicConfiguration (const Attribute &attr)
	Check if an attribute is a Client Characteristic Configuration Descriptor.

static bool	IsServerCharacteristicConfiguration (const Attribute &attr)
	Check if an attribute is a Server Characteristic Configuration Descriptor.

static bool	IsCharacteristicUserDescription (const Attribute &attr)
	Check if an attribute is a Characteristic User Description.

static bool	IsCharacteristicExtendedProperties (const Attribute &attr)
	Check if an attribute is a Characteristic Extended Properties descriptor.

static bool	IsDescriptor (const Attribute &attr)
	Check if an attribute is a descriptor (not declaration or value).

Attribute Type Factories
static Attribute	PrimaryServiceDeclaration (const Uuid &service_uuid, uint16_t handle=0)
	Create a Primary Service Declaration with a service UUID payload.

static Attribute	SecondaryServiceDeclaration (const Uuid &service_uuid, uint16_t handle=0)
	Create a Secondary Service Declaration with a service UUID payload.

static Attribute	IncludedServiceDeclaration (uint16_t start_handle, uint16_t end_handle, const Uuid &service_uuid, uint16_t handle=0)
	Create an Included Service Declaration payload.

static Attribute	CharacteristicDeclaration (uint8_t properties, uint16_t value_handle, const Uuid &characteristic_uuid, uint16_t handle=0)
	Create a Characteristic Declaration payload.

static Attribute	ClientCharacteristicConfiguration (uint16_t value, uint16_t handle=0)
	Create a Client Characteristic Configuration with a 16-bit value.

static Attribute	ServerCharacteristicConfiguration (uint16_t value, uint16_t handle=0)
	Create a Server Characteristic Configuration with a 16-bit value.

static Attribute	CharacteristicUserDescription (const std::string &description, uint16_t handle=0)
	Create a Characteristic User Description with a UTF-8 string.

static Attribute	CharacteristicExtendedProperties (uint16_t value, uint16_t handle=0)
	Create a Characteristic Extended Properties with a 16-bit value.

static Attribute	CharacteristicPresentationFormat (uint8_t format, int8_t exponent, uint16_t unit, uint8_t name_space, uint16_t description, uint16_t handle=0)
	Create a Characteristic Presentation Format payload (0x2904).

static Attribute	CharacteristicAggregateFormat (const std::vector< uint16_t > &handles, uint16_t handle=0)
	Create a Characteristic Aggregate Format from a list of handles.

Friends
Streaming
std::ostream &	operator<< (std::ostream &os, const Attribute &attr)
	Stream insertion operator for Attribute. Outputs the attribute handle, UUID, and parsed properties flags.

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default

	~NonCopyable ()=default

Detailed Description

ATT attribute wrapper with BTstack-compatible fields.

This class mirrors a single ATT database entry as used by the RP2040 Pico W BLE stack (BTstack). The fields align with BTstack's binary ATT DB layout parsed by the AttributeServer, so the properties_ bitmask and handle_ values can be populated directly from the stack.

Value storage model:

Static attributes (no kDynamic flag): keep a pointer/size pair into the ATT DB blob without copying. This matches BTstack, which treats these values as immutable, fixed-at-compile-time data. Avoiding a copy saves RAM and preserves the DB as the single source of truth.
- Storage: static_value_ptr_ + static_value_size_ point into the ATT DB image parsed by AttributeServer.
- Mutability: immutable at runtime; SetValue() rejects writes.
- Access: GetValueData() returns the DB pointer; GetValueSize() returns the DB length.
- Lifetime: the DB buffer must remain valid for the life of the Attribute; use SetStaticValue() to own a copy.
- Optional override: SetStaticValue() repoints static_value_ptr_, allowing a controlled, owned static value without toggling kDynamic.
Dynamic attributes (kDynamic set): keep a mutable std::vector that can be updated at runtime. Dynamic attributes rely on callbacks and writable storage; copying into a vector provides ownership and resize capability that a DB-backed pointer cannot offer.
- Storage: dynamic_value_ owns the bytes and can grow/shrink.
- Mutability: SetValue() and write callbacks may update contents.
- Access: GetValueData() returns the vector data pointer; size is dynamic_value_.size().
- Writes: InvokeWriteCallback() stores data even if no write callback is installed; callbacks are optional for dynamic attributes.

Consequence:

SetValue() is only valid for dynamic attributes.
Remote writes are accepted only through InvokeWriteCallback(). If no write callback is installed for a dynamic attribute, the value is still stored and the write succeeds.

Ownership and moves:

The class is move-only (inherits MovableOnly) to avoid accidental copies of pointer-backed/static storage and callback state.

Construction:

Provide a Uuid plus a properties bitmask; an optional handle can be supplied (otherwise it defaults to 0 until assigned).
Provide a Uuid, properties, and initial value buffer for static data.

Setting flags:

Flags are stored as a uint16_t bitmask. Use the Properties enum constants and the provided bitwise operators to combine them.
The kUuid128 flag is synchronized automatically based on the Uuid when constructing or calling SetProperties().
Permission bits are not enforced by this class; the stack should gate read/write requests before invoking callbacks.

Callback architecture:

Read callbacks return uint16_t: byte count on success, or ATT error code (cast from BleError) on failure. This allows reads to dynamically determine how much data to return.
Write callbacks return BleError: type-safe error codes ensure correct error handling without manual conversions. Returns BleError::kSuccess on successful write operations.
Platform-specific implementations in platform/rpi_pico/ handle BTstack integration; core logic remains platform-independent.

Attribute type helpers:

Use Uuid::AttributeType for the standard 16-bit type UUIDs.
Use Uuid::Is* helpers when you only have a UUID. This class provides wrappers that accept an Attribute object.

Example:

// Create readable/writable attribute
uint16_t props = Attribute::Properties::kRead | Attribute::Properties::kWrite;
Attribute attr(Uuid(0x2A37), props);

// Set write callback with BleError return type
attr.SetWriteCallback([](uint16_t offset, const uint8_t* data, uint16_t size) {
    // Process write...
    return BleError::kSuccess;  // Type-safe error handling
});

// Set read callback with uint16_t return (byte count or error)
attr.SetReadCallback([](uint16_t offset, uint8_t* buffer, uint16_t buffer_size) {
    // Fill buffer...
    return bytes_read;  // Return number of bytes read
});

Dynamic attributes:

If kDynamic is set, the attribute uses owned storage and optional callbacks rather than a fixed in-DB value.
When a write callback is installed, InvokeWriteCallback() calls the callback first. If it succeeds, dynamic_value_ is updated (when data is provided).

Thread safety:

Not thread-safe. External synchronization required for concurrent access.

Member Typedef Documentation

◆ ReadCallback

using c7222::Attribute::ReadCallback = std::function<uint16_t(uint16_t offset, uint8_t* buffer, uint16_t buffer_size)>

Callback type for reading attribute value. Parameters: offset, destination buffer, buffer size Returns: number of bytes read, or ATT error code if > 0xfe00.

◆ WriteCallback

using c7222::Attribute::WriteCallback = std::function<BleError(uint16_t offset, const uint8_t* data, uint16_t size)>

Callback type for writing attribute value. Parameters: offset, source data, data size Returns: BleError code (BleError::kSuccess = success)

Member Enumeration Documentation

◆ Properties

enum class c7222::Attribute::Properties : std::uint16_t

strong

Attribute flags with direct BTstack ATT_PROPERTY_* mapping.

These bits are stored in the ATT DB entry flags field. The layout matches the BTstack att_db.c format used by the Pico W stack.

Enumerator
kNone	No properties set.
kWritePermissionBit0	Write permission bit 0 (LSB of a 2-bit write security level). Combined with `kWritePermissionBit1` by the stack.
kRead	Attribute can be read via ATT Read Request.
kWriteWithoutResponse	Attribute can be written via Write Command (no response).
kWrite	Attribute can be written via Write Request (with response).
kWritePermissionBit1	Write permission bit 1 (MSB of a 2-bit write security level). Combined with `kWritePermissionBit0` by the stack.
kReadPermissionSc	Read requires Secure Connections (SC) per BTstack flags.
kAuthenticatedSignedWrite	Attribute supports Authenticated Signed Write.
kWritePermissionSc	Write requires Secure Connections (SC) per BTstack flags.
kDynamic	Value is dynamic (handled by callbacks, not fixed DB storage). The local `dynamic_value_` may be used as a cache, but when no write callback is installed, `InvokeWriteCallback()` rejects writes for dynamic attrs.
kUuid128	Entry uses a 128-bit UUID in the ATT DB. `Attribute` keeps this bit in sync with the `Uuid` type.
kReadPermissionBit0	Read permission bit 0 (LSB of a 2-bit read security level). Combined with `kReadPermissionBit1` by the stack.
kReadPermissionBit1	Read permission bit 1 (MSB of a 2-bit read security level). Combined with `kReadPermissionBit0` by the stack.
kEncryptionKeySizeMask	Mask for encryption key size requirement (bits 12-15). The stack encodes the required key size in the upper nibble.

Constructor & Destructor Documentation

◆ Attribute() [1/4]

c7222::Attribute::Attribute ( )

default

Default-construct an invalid attribute.

Use the UUID/properties constructors or the factory helpers to create usable attributes.

◆ Attribute() [2/4]

c7222::Attribute::Attribute ( Attribute && )

defaultnoexcept

Move constructor (transfers storage and callbacks).

◆ Attribute() [3/4]

c7222::Attribute::Attribute	(	const Uuid &	uuid,
		uint16_t	properties,
		uint16_t	handle = `0`
	)

Construct an attribute with a UUID and properties.

◆ Attribute() [4/4]

c7222::Attribute::Attribute	(	const Uuid &	uuid,
		uint16_t	properties,
		const uint8_t *	data,
		size_t	size,
		uint16_t	handle = `0`
	)

Construct an attribute with a UUID, properties, and value data.

Static attributes store a pointer/size into the ATT DB buffer; dynamic attributes copy the data into owned storage so it can be mutated.

Member Function Documentation

◆ CharacteristicAggregateFormat()

static Attribute c7222::Attribute::CharacteristicAggregateFormat	(	const std::vector< uint16_t > &	handles,
		uint16_t	handle = `0`
	)

static

Create a Characteristic Aggregate Format from a list of handles.

Note: This factory synthesizes the payload in memory and therefore returns an Attribute with dynamic-backed owned storage.

◆ CharacteristicDeclaration()

static Attribute c7222::Attribute::CharacteristicDeclaration	(	uint8_t	properties,
		uint16_t	value_handle,
		const Uuid &	characteristic_uuid,
		uint16_t	handle = `0`
	)

static

Create a Characteristic Declaration payload.

Parameters

properties	Characteristic properties byte (GATT characteristic properties)
value_handle	Handle of the characteristic value attribute
characteristic_uuid	Characteristic UUID (16-bit or 128-bit)
handle	Optional attribute handle (0 = auto-assign)

Note: This factory synthesizes the payload in memory and therefore returns an Attribute with dynamic-backed owned storage.

◆ CharacteristicExtendedProperties()

static Attribute c7222::Attribute::CharacteristicExtendedProperties	(	uint16_t	value,
		uint16_t	handle = `0`
	)

static

Create a Characteristic Extended Properties with a 16-bit value.

Note: This factory synthesizes the payload in memory and therefore returns an Attribute with dynamic-backed owned storage.

◆ CharacteristicPresentationFormat()

static Attribute c7222::Attribute::CharacteristicPresentationFormat	(	uint8_t	format,
		int8_t	exponent,
		uint16_t	unit,
		uint8_t	name_space,
		uint16_t	description,
		uint16_t	handle = `0`
	)

static

Create a Characteristic Presentation Format payload (0x2904).

Note: This factory synthesizes the payload in memory and therefore returns an Attribute with dynamic-backed owned storage.

◆ CharacteristicUserDescription()

static Attribute c7222::Attribute::CharacteristicUserDescription	(	const std::string &	description,
		uint16_t	handle = `0`
	)

static

Create a Characteristic User Description with a UTF-8 string.

Note: This factory synthesizes the payload in memory and therefore returns an Attribute with dynamic-backed owned storage.

◆ ClientCharacteristicConfiguration()

static Attribute c7222::Attribute::ClientCharacteristicConfiguration	(	uint16_t	value,
		uint16_t	handle = `0`
	)

static

Create a Client Characteristic Configuration with a 16-bit value.

◆ GetDynamicValue()

const std::vector< uint8_t > & c7222::Attribute::GetDynamicValue ( ) const

inline

Get value as vector (for compatibility). Note: Returns empty for static attributes because they are DB-backed.

◆ GetHandle()

uint16_t c7222::Attribute::GetHandle ( ) const

inline

Get the ATT handle.

Returns: Attribute handle (0 if unassigned)

Here is the caller graph for this function:

◆ GetProperties()

uint16_t c7222::Attribute::GetProperties ( ) const

inline

Get the properties bitmask of the attribute.

Returns: Properties bitmask

Here is the caller graph for this function:

◆ GetUuid()

const Uuid & c7222::Attribute::GetUuid ( ) const

inline

Get the attribute UUID.

Returns: Reference to the UUID identifying this attribute type

◆ GetValueData()

const uint8_t * c7222::Attribute::GetValueData ( ) const

inline

Get pointer to attribute value data.

Returns: Pointer to value data, or nullptr if no value

Note: Static attributes return the ATT DB pointer; dynamic attributes return the owned vector data pointer.

◆ GetValueSize()

size_t c7222::Attribute::GetValueSize ( ) const

inline

Get size of attribute value.

Returns: Size of value in bytes

Note: Mirrors the storage choice: DB size for static, vector size for dynamic.

◆ HasReadCallback()

bool c7222::Attribute::HasReadCallback ( ) const

inline

Check if a read callback is registered.

Returns: true if read callback is set

◆ HasWriteCallback()

bool c7222::Attribute::HasWriteCallback ( ) const

inline

Check if a write callback is registered.

Returns: true if write callback is set

◆ IncludedServiceDeclaration()

static Attribute c7222::Attribute::IncludedServiceDeclaration	(	uint16_t	start_handle,
		uint16_t	end_handle,
		const Uuid &	service_uuid,
		uint16_t	handle = `0`
	)

static

Create an Included Service Declaration payload.

Parameters

start_handle	First attribute handle of the included service
end_handle	Last attribute handle of the included service
service_uuid	Included service UUID (16-bit or 128-bit)
handle	Optional attribute handle (0 = auto-assign)

Note: This factory synthesizes the payload in memory and therefore returns an Attribute with dynamic-backed owned storage.

◆ InvokeReadCallback()

uint16_t c7222::Attribute::InvokeReadCallback	(	uint16_t	offset,
		uint8_t *	buffer,
		uint16_t	buffer_size
	)		const

Invoke the read callback.

Parameters

offset	Offset into the attribute value
buffer	Destination buffer for data
buffer_size	Size of destination buffer

Returns: Number of bytes read, or error code

Note: Implemented in src/attribute.cpp; falls back to stored value if no callback.

◆ InvokeWriteCallback()

BleError c7222::Attribute::InvokeWriteCallback	(	uint16_t	offset,
		const uint8_t *	data,
		uint16_t	size
	)

Invoke the write callback.

Parameters

offset	Offset into the attribute value
data	Source data to write
size	Number of bytes to write

Returns: BleError code (BleError::kSuccess = success)

Note: Platform-independent implementation in src/attribute.cpp; For dynamic attributes, the callback (if installed) runs first. On success, the data is stored. If no callback is set, the write stores the data and succeeds. If the callback returns an error, the value is restored.

◆ IsCharacteristicDeclaration()

static bool c7222::Attribute::IsCharacteristicDeclaration ( const Attribute & attr )

static

Check if an attribute is a Characteristic Declaration.

Parameters

attr	Attribute to check

Returns: true if the attribute UUID matches the Characteristic Declaration type

◆ IsCharacteristicExtendedProperties()

static bool c7222::Attribute::IsCharacteristicExtendedProperties ( const Attribute & attr )

static

Check if an attribute is a Characteristic Extended Properties descriptor.

Parameters

attr	Attribute to check

Returns: true if the attribute UUID matches Extended Properties type

◆ IsCharacteristicUserDescription()

static bool c7222::Attribute::IsCharacteristicUserDescription ( const Attribute & attr )

static

Check if an attribute is a Characteristic User Description.

Parameters

attr	Attribute to check

Returns: true if the attribute UUID matches User Description type

◆ IsClientCharacteristicConfiguration()

static bool c7222::Attribute::IsClientCharacteristicConfiguration ( const Attribute & attr )

static

Check if an attribute is a Client Characteristic Configuration Descriptor.

Parameters

attr	Attribute to check

Returns: true if the attribute UUID matches CCCD type

◆ IsDescriptor()

static bool c7222::Attribute::IsDescriptor ( const Attribute & attr )

static

Check if an attribute is a descriptor (not declaration or value).

Parameters

attr	Attribute to check

Returns: true if the attribute is a known descriptor type

◆ IsIncludedServiceDeclaration()

static bool c7222::Attribute::IsIncludedServiceDeclaration ( const Attribute & attr )

static

Check if an attribute is an Included Service Declaration.

Parameters

attr	Attribute to check

Returns: true if the attribute UUID matches the Included Service Declaration type

◆ IsPrimaryServiceDeclaration()

static bool c7222::Attribute::IsPrimaryServiceDeclaration ( const Attribute & attr )

static

Check if an attribute is a Primary Service Declaration.

Parameters

attr	Attribute to check

Returns: true if the attribute UUID matches the Primary Service Declaration type

◆ IsSecondaryServiceDeclaration()

static bool c7222::Attribute::IsSecondaryServiceDeclaration ( const Attribute & attr )

static

Check if an attribute is a Secondary Service Declaration.

Parameters

attr	Attribute to check

Returns: true if the attribute UUID matches the Secondary Service Declaration type

◆ IsServerCharacteristicConfiguration()

static bool c7222::Attribute::IsServerCharacteristicConfiguration ( const Attribute & attr )

static

Check if an attribute is a Server Characteristic Configuration Descriptor.

Parameters

attr	Attribute to check

Returns: true if the attribute UUID matches SCCD type

◆ IsServiceDeclaration()

static bool c7222::Attribute::IsServiceDeclaration ( const Attribute & attr )

static

Check if an attribute is any Service Declaration (Primary or Secondary).

Parameters

attr	Attribute to check

Returns: true if the attribute UUID matches either service declaration type

◆ IsThisAttribute() [1/3]

bool c7222::Attribute::IsThisAttribute ( const Uuid & uuid ) const

inline

Check if this attribute matches a UUID.

Parameters

uuid	UUID to compare

Returns: true if UUIDs match

◆ IsThisAttribute() [2/3]

bool c7222::Attribute::IsThisAttribute	(	const Uuid &	uuid,
		uint16_t	handle
	)		const

inline

Check if this attribute matches both UUID and handle.

Parameters

uuid	UUID to compare
handle	Attribute handle to compare

Returns: true if both UUID and handle match

◆ IsThisAttribute() [3/3]

bool c7222::Attribute::IsThisAttribute ( uint16_t handle ) const

inline

Check if this attribute matches a handle.

Parameters

handle Attribute handle to compare

Returns: true if handles match and handle != 0

◆ IsUuid128()

bool c7222::Attribute::IsUuid128 ( ) const

inline

Check if the attribute UUID is 128-bit.

Returns: true for 128-bit UUIDs, false for 16-bit

Here is the call graph for this function:

◆ IsValid()

bool c7222::Attribute::IsValid ( ) const

inline

Check if this attribute has a valid handle and UUID.

Here is the call graph for this function:

◆ operator=()

Attribute & c7222::Attribute::operator= ( Attribute && )

defaultnoexcept

Move assignment operator (transfers storage and callbacks).

◆ PrimaryServiceDeclaration()

static Attribute c7222::Attribute::PrimaryServiceDeclaration	(	const Uuid &	service_uuid,
		uint16_t	handle = `0`
	)

static

Create a Primary Service Declaration with a service UUID payload.

Note: This factory synthesizes the payload in memory and therefore returns an Attribute with dynamic-backed owned storage.

◆ SecondaryServiceDeclaration()

static Attribute c7222::Attribute::SecondaryServiceDeclaration	(	const Uuid &	service_uuid,
		uint16_t	handle = `0`
	)

static

Create a Secondary Service Declaration with a service UUID payload.

Note: This factory synthesizes the payload in memory and therefore returns an Attribute with dynamic-backed owned storage.

◆ ServerCharacteristicConfiguration()

static Attribute c7222::Attribute::ServerCharacteristicConfiguration	(	uint16_t	value,
		uint16_t	handle = `0`
	)

static

Create a Server Characteristic Configuration with a 16-bit value.

◆ SetHandle()

void c7222::Attribute::SetHandle ( uint16_t handle )

inline

Set the ATT handle.

Parameters

handle New handle assigned by the stack or builder

◆ SetProperties()

void c7222::Attribute::SetProperties ( uint16_t properties )

inline

Set the properties bitmask of the attribute.

Parameters

properties New properties bitmask

◆ SetReadCallback()

void c7222::Attribute::SetReadCallback ( ReadCallback callback )

inline

Set the read callback for this attribute. Called when a remote client reads this attribute.

Parameters

callback Function to handle reads

◆ SetStaticValue() [1/2]

bool c7222::Attribute::SetStaticValue ( const std::vector< uint8_t > & data )

Set attribute value for static attributes from vector (copy semantics).

Parameters

data	Const reference to vector (copied into static storage)

Returns: true if value was set, false if rejected (dynamic attribute)

◆ SetStaticValue() [2/2]

bool c7222::Attribute::SetStaticValue	(	const uint8_t *	data,
		size_t	size
	)

Set attribute value for static attributes. Copies the data into owned storage and updates the static value pointer.

Parameters

data	Pointer to value data
size	Size of value in bytes

Returns: true if value was set, false if rejected (dynamic attribute)

◆ SetValue() [1/4]

bool c7222::Attribute::SetValue ( const std::vector< uint8_t > & data )

Set attribute value from lvalue vector (copy semantics). Only allowed for dynamic attributes.

Parameters

data	Const reference to vector (copied into internal storage)

Returns: true if value was set, false if rejected (static attribute)

◆ SetValue() [2/4]

template<typename T >

bool c7222::Attribute::SetValue ( const T & value )

inline

Set attribute value from a typed value (generic template). Converts any trivial type to bytes and stores as the attribute value. Only allowed for dynamic attributes.

Template Parameters

T	Must be a trivial type (primitive types, arrays, small structs)

Parameters

value The value to store

Returns: true if value was set, false if rejected (static attribute)

Note: Uses binary representation; for endian-sensitive types, ensure consistency

Example: SetValue(0x1234) stores as bytes {0x34, 0x12} (little-endian).

Here is the call graph for this function:

◆ SetValue() [3/4]

bool c7222::Attribute::SetValue	(	const uint8_t *	data,
		size_t	size
	)

Set attribute value. Only allowed for dynamic attributes; static attributes are immutable because their bytes reside in the ATT DB image.

Parameters

data	Pointer to value data
size	Size of value in bytes

Returns: true if value was set, false if rejected (static attribute)

Here is the caller graph for this function:

◆ SetValue() [4/4]

bool c7222::Attribute::SetValue ( std::vector< uint8_t > && data )

Set attribute value from rvalue vector (move semantics). Only allowed for dynamic attributes.

Parameters

data	Rvalue reference to vector (ownership transferred via move)

Returns: true if value was set, false if rejected (static attribute)

◆ SetWriteCallback()

void c7222::Attribute::SetWriteCallback ( WriteCallback callback )

inline

Set the write callback for this attribute. Called when a remote client writes this attribute.

Parameters

callback Function to handle writes

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const Attribute &	attr
	)

friend

Stream insertion operator for Attribute. Outputs the attribute handle, UUID, and parsed properties flags.

The documentation for this class was generated from the following file:

libs/elec_c7222/ble/gatt/include/attribute.hpp

Public Types

Public Member Functions

Static Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ReadCallback

◆ WriteCallback

Member Enumeration Documentation

◆ Properties

Constructor & Destructor Documentation

◆ Attribute() [1/4]

◆ Attribute() [2/4]

◆ Attribute() [3/4]

◆ Attribute() [4/4]

Member Function Documentation

◆ CharacteristicAggregateFormat()

◆ CharacteristicDeclaration()

◆ CharacteristicExtendedProperties()

◆ CharacteristicPresentationFormat()

◆ CharacteristicUserDescription()

◆ ClientCharacteristicConfiguration()

◆ GetDynamicValue()

◆ GetHandle()

◆ GetProperties()

◆ GetUuid()

◆ GetValueData()

◆ GetValueSize()

◆ HasReadCallback()

◆ HasWriteCallback()

◆ IncludedServiceDeclaration()

◆ InvokeReadCallback()

◆ InvokeWriteCallback()

◆ IsCharacteristicDeclaration()

◆ IsCharacteristicExtendedProperties()

◆ IsCharacteristicUserDescription()

◆ IsClientCharacteristicConfiguration()

◆ IsDescriptor()

◆ IsIncludedServiceDeclaration()

◆ IsPrimaryServiceDeclaration()

◆ IsSecondaryServiceDeclaration()

◆ IsServerCharacteristicConfiguration()

◆ IsServiceDeclaration()

◆ IsThisAttribute() [1/3]

◆ IsThisAttribute() [2/3]

◆ IsThisAttribute() [3/3]

◆ IsUuid128()

◆ IsValid()

◆ operator=()

◆ PrimaryServiceDeclaration()

◆ SecondaryServiceDeclaration()

◆ ServerCharacteristicConfiguration()

◆ SetHandle()

◆ SetProperties()

◆ SetReadCallback()

◆ SetStaticValue() [1/2]

◆ SetStaticValue() [2/2]

◆ SetValue() [1/4]

◆ SetValue() [2/4]

◆ SetValue() [3/4]

◆ SetValue() [4/4]

◆ SetWriteCallback()

Friends And Related Symbol Documentation

◆ operator<<
