Encapsulates the ATT attribute server for the Pico W BLE stack. More...

#include <attribute_server.hpp>

Inheritance diagram for c7222::AttributeServer:

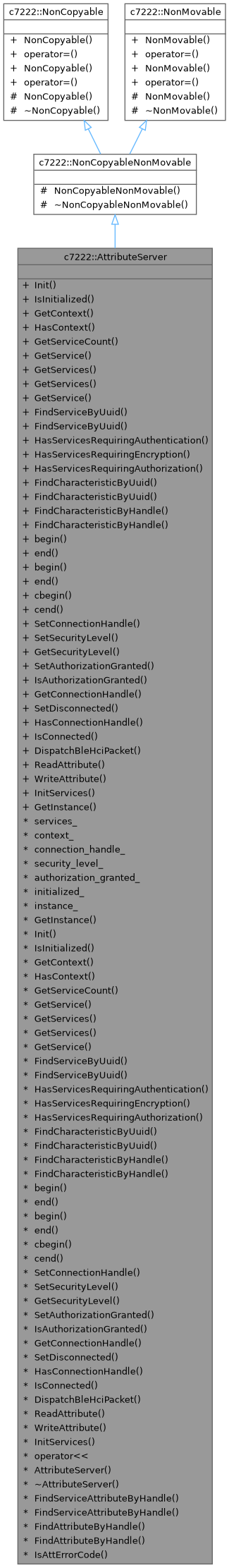

Collaboration diagram for c7222::AttributeServer:

Classes
struct	ReadResult

Public Member Functions
Initialization and State
BleError	Init (const void *context)
	Initialize the ATT server from a platform context.

bool	IsInitialized () const
	Check whether the server was initialized.

const void *	GetContext () const
	Get the stored platform context pointer.

bool	HasContext () const
	Check whether a platform context has been stored.

Service and Characteristic Lookup
size_t	GetServiceCount () const
	Get the number of parsed services.

Service &	GetService (size_t index)
	Get a service by index.

const std::list< Service > &	GetServices () const
	Get the list of services.

std::list< Service > &	GetServices ()
	Get the list of services.

const Service &	GetService (size_t index) const
	Get a service by index (const version).

Service *	FindServiceByUuid (const Uuid &uuid)
	Find a service by UUID.

const Service *	FindServiceByUuid (const Uuid &uuid) const
	Find a service by UUID (const version).

bool	HasServicesRequiringAuthentication () const
	Check whether any service contains characteristics requiring authentication.

bool	HasServicesRequiringEncryption () const
	Check whether any service contains characteristics requiring encryption.

bool	HasServicesRequiringAuthorization () const
	Check whether any service contains characteristics requiring authorization.

std::list< Characteristic * >	FindCharacteristicByUuid (const Uuid &uuid)
	Find characteristics by UUID.

std::list< const Characteristic * >	FindCharacteristicByUuid (const Uuid &uuid) const
	Find characteristics by UUID (const version).

Characteristic *	FindCharacteristicByHandle (uint16_t handle)
	Find a characteristic by attribute handle.

const Characteristic *	FindCharacteristicByHandle (uint16_t handle) const
	Find a characteristic by attribute handle (const version).

Iteration
auto	begin ()
	Get iterator to first service.

auto	end ()
	Get iterator to end of services.

auto	begin () const
	Get const iterator to first service.

auto	end () const
	Get const iterator to end of services.

auto	cbegin () const
	Get const iterator to first service.

auto	cend () const
	Get const iterator to end of services.

Connection and Event Routing
void	SetConnectionHandle (uint16_t connection_handle)
	Set the active connection handle for all characteristics.

void	SetSecurityLevel (uint16_t connection_handle, uint8_t security_level)
	Update cached security level for the active connection.

uint8_t	GetSecurityLevel (uint16_t connection_handle) const
	Get cached security level for the active connection.

void	SetAuthorizationGranted (uint16_t connection_handle, bool granted)
	Update cached authorization result for the active connection.

bool	IsAuthorizationGranted (uint16_t connection_handle) const
	Get cached authorization result for the active connection.

uint16_t	GetConnectionHandle () const
	Get the current connection handle.

void	SetDisconnected ()

bool	HasConnectionHandle () const
	Check whether a connection handle is set.

bool	IsConnected () const
	Queries whether a client is connected to the server.

BleError	DispatchBleHciPacket (uint8_t packet_type, const uint8_t *packet_data, uint16_t packet_data_size)
	Dispatch HCI ATT events to all characteristics.

ATT Callbacks (Internal Use)
ReadResult	ReadAttribute (uint16_t attribute_handle, uint16_t offset, uint8_t *buffer, uint16_t buffer_size)
	Handle an ATT read request (internal use).

BleError	WriteAttribute (uint16_t attribute_handle, uint16_t offset, const uint8_t *data, uint16_t size)
	Handle an ATT write request (internal use).

Service Parsing Helpers
void	InitServices (std::list< Attribute > &attributes)
	Initialize services from a parsed attribute list.

Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete

NonCopyable &	operator= (const NonCopyable &)=delete

	NonCopyable (NonCopyable &&)=default

NonCopyable &	operator= (NonCopyable &&)=default

Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default

NonMovable &	operator= (const NonMovable &)=default

	NonMovable (NonMovable &&)=delete

NonMovable &	operator= (NonMovable &&)=delete

Static Public Member Functions
Construction and Lifetime
static AttributeServer *	GetInstance ()
	Get the singleton instance.

Friends
Stream Output
std::ostream &	operator<< (std::ostream &os, const AttributeServer &server)
	Stream insertion operator for attribute server information.

Additional Inherited Members
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default

	~NonCopyableNonMovable ()=default

Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default

	~NonCopyable ()=default

Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default

	~NonMovable ()=default

Detailed Description

Encapsulates the ATT attribute server for the Pico W BLE stack.

This class parses the compiled ATT database into GATT Service/Characteristic objects and routes ATT read/write requests to the appropriate handlers. It also forwards HCI ATT events to characteristics for indications and flow-control callbacks.

Note: This implementation supports a single client connection at a time. If more than one client attempts to connect, the server will accept all of them but use only the last connection handle in its responses. So, it is not recommended for use cases requiring multiple concurrent connections.

Responsibilities

ATT DB parsing: Platform-specific code converts the ATT database blob into Attribute objects, then InitServices() builds Service and Characteristic objects in discovery order.
ATT routing: Dispatches ATT read/write requests to the correct Characteristic or service-level Attribute handlers.
HCI event fan-out: Forwards ATT-related HCI events (e.g. indication completion, can-send-now) to characteristics so they can drive notifications/indications.

Security Queries (Planning Before Connections)

The server now exposes aggregate security checks across all parsed services:

These helpers are intended to guide SecurityManager enablement and configuration before connections are established.

Connection Security State (Runtime)

The server caches the active connection handle and the security state associated with that connection:

SetConnectionHandle() updates the handle propagated to characteristics.
SetSecurityLevel() caches the GAP security level (used by CCCD/SCCD authorization checks).
SetAuthorizationGranted() caches per-connection authorization decisions.

Platform glue (e.g., BTstack packet handlers) should update these values when GAP/SM events are received so characteristic descriptor writes can be validated consistently.

BTstack Integration Details

BTstack exposes the ATT server through a C API:

att_server_init(att_db, read_cb, write_cb) registers the database and callbacks used when a client reads/writes an attribute.
Read callbacks return a byte count on success or an ATT error code.
Write callbacks return 0 on success or an ATT error code.

This class wraps that model as follows:

Read: ReadAttribute() locates the target Attribute/Characteristic, checks permissions, then calls Characteristic::HandleAttributeRead() or Attribute::InvokeReadCallback(). ATT error codes are mapped through BleError and returned to BTstack via the platform glue.
Write: WriteAttribute() routes writes to Characteristic::HandleAttributeWrite() or Attribute::InvokeWriteCallback(), enforcing ATT write permissions. Errors are mapped back to BTstack.
Events: DispatchBleHciPacket() fans out HCI events to all characteristics so indication completion and ATT_EVENT_CAN_SEND_NOW are handled in one place.

The class itself is platform-agnostic; the BTstack binding and ATT DB parsing live in the platform implementation (platform/rpi_pico/attribute_server.cpp).

RPi Pico W (BTstack) Implementation

On RP2040/Pico W, Init() treats the context pointer as the BTstack ATT DB blob (att_db.h/att_db.c) and:

Registers BTstack callbacks via att_server_init().
Parses the ATT DB into Attribute objects and calls InitServices().

The context pointer is cached the first time Init() is called. Subsequent calls reuse the stored context pointer so the ATT DB remains stable.

The ATT DB blob must remain valid for the lifetime of the server because parsed static attributes point directly into the DB memory.

Typical Usage

auto* server = c7222::AttributeServer::GetInstance();
server->Init(att_db);  // att_db from BTstack-generated files

// Route connection handle for notifications/indications
server->SetConnectionHandle(connection_handle);

// Look up a characteristic and install handlers
auto* ch = server->FindCharacteristicByUuid(c7222::Uuid(0x2A19));
if(ch != nullptr) {
    ch->AddEventHandler(my_handler);
}

Design Assumptions

The platform provides an immutable ATT database blob whose lifetime exceeds the AttributeServer instance lifetime.
Parsed static attributes point into the ATT DB memory and must not outlive it.
Services/characteristics are rebuilt from the ATT DB each time Init() runs.

Internal/Reserved APIs (do not call from application code)

The following methods exist to integrate with the BLE stack and platform glue. They are not part of the public application API and should be considered reserved for internal use:

InitServices() (parses service/characteristic structure)
ReadAttribute() / WriteAttribute() (ATT callbacks)
DispatchBleHciPacket() (HCI event fan-out)

Member Function Documentation

◆ begin() [1/2]

auto c7222::AttributeServer::begin ( )

inline

Get iterator to first service.

Returns: Iterator to begin of services list

◆ begin() [2/2]

auto c7222::AttributeServer::begin ( ) const

inline

Get const iterator to first service.

Returns: Const iterator to begin of services list

◆ cbegin()

auto c7222::AttributeServer::cbegin ( ) const

inline

Get const iterator to first service.

Returns: Const iterator to begin of services list

◆ cend()

auto c7222::AttributeServer::cend ( ) const

inline

Get const iterator to end of services.

Returns: Const iterator to end of services list

◆ DispatchBleHciPacket()

BleError c7222::AttributeServer::DispatchBleHciPacket	(	uint8_t	packet_type,
		const uint8_t *	packet_data,
		uint16_t	packet_data_size
	)

Dispatch HCI ATT events to all characteristics.

This should be called from the BLE packet handler so that ATT indication completion and can-send-now flow control are handled by characteristics.

◆ end() [1/2]

auto c7222::AttributeServer::end ( )

inline

Get iterator to end of services.

Returns: Iterator to end of services list

◆ end() [2/2]

auto c7222::AttributeServer::end ( ) const

inline

Get const iterator to end of services.

Returns: Const iterator to end of services list

◆ FindCharacteristicByHandle() [1/2]

Characteristic * c7222::AttributeServer::FindCharacteristicByHandle ( uint16_t handle )

Find a characteristic by attribute handle.

Parameters

handle ATT handle to search for (value, declaration, or descriptor).

Returns: Pointer to the characteristic, or nullptr if not found.

Here is the caller graph for this function:

◆ FindCharacteristicByHandle() [2/2]

const Characteristic * c7222::AttributeServer::FindCharacteristicByHandle ( uint16_t handle ) const

Find a characteristic by attribute handle (const version).

Parameters

handle ATT handle to search for (value, declaration, or descriptor).

Returns: Const pointer to the characteristic, or nullptr if not found.

◆ FindCharacteristicByUuid() [1/2]

std::list< Characteristic * > c7222::AttributeServer::FindCharacteristicByUuid ( const Uuid & uuid )

Find characteristics by UUID.

Multiple characteristics can share a UUID (e.g., replicated instances), so this returns all matches in discovery order.

Parameters

uuid	Characteristic UUID to search for.

Returns: List of matching characteristics (may be empty).

◆ FindCharacteristicByUuid() [2/2]

std::list< const Characteristic * > c7222::AttributeServer::FindCharacteristicByUuid ( const Uuid & uuid ) const

Find characteristics by UUID (const version).

Multiple characteristics can share a UUID (e.g., replicated instances), so this returns all matches in discovery order.

Parameters

uuid	Characteristic UUID to search for.

Returns: List of matching characteristics (may be empty).

◆ FindServiceByUuid() [1/2]

Service * c7222::AttributeServer::FindServiceByUuid ( const Uuid & uuid )

Find a service by UUID.

Parameters

uuid	Service UUID to search for.

Returns: Pointer to the service, or nullptr if not found.

Here is the caller graph for this function:

◆ FindServiceByUuid() [2/2]

const Service * c7222::AttributeServer::FindServiceByUuid ( const Uuid & uuid ) const

Find a service by UUID (const version).

Parameters

uuid	Service UUID to search for.

Returns: Const pointer to the service, or nullptr if not found.

◆ GetConnectionHandle()

uint16_t c7222::AttributeServer::GetConnectionHandle ( ) const

inline

Get the current connection handle.

Returns 0 when disconnected or not set.

◆ GetContext()

const void * c7222::AttributeServer::GetContext ( ) const

inline

Get the stored platform context pointer.

On Pico W this is the ATT DB blob pointer; other platforms may store different context data.

◆ GetInstance()

static AttributeServer * c7222::AttributeServer::GetInstance ( )

inlinestatic

Get the singleton instance.

The server is a process-wide singleton because BTstack exposes a single global ATT server for the device.

◆ GetSecurityLevel()

uint8_t c7222::AttributeServer::GetSecurityLevel ( uint16_t connection_handle ) const

Get cached security level for the active connection.

◆ GetService() [1/2]

Service & c7222::AttributeServer::GetService ( size_t index )

Get a service by index.

Parameters

index Service index in discovery order.

Returns: Reference to the service.

◆ GetService() [2/2]

const Service & c7222::AttributeServer::GetService ( size_t index ) const

Get a service by index (const version).

Parameters

index Service index in discovery order.

Returns: Const reference to the service.

◆ GetServiceCount()

size_t c7222::AttributeServer::GetServiceCount ( ) const

inline

Get the number of parsed services.

Returns the count of services parsed from the ATT DB in discovery order.

◆ GetServices() [1/2]

std::list< Service > & c7222::AttributeServer::GetServices ( )

inline

Get the list of services.

Returns: Reference to the service list.

◆ GetServices() [2/2]

const std::list< Service > & c7222::AttributeServer::GetServices ( ) const

inline

Get the list of services.

Returns: Const reference to the service list.

◆ HasConnectionHandle()

bool c7222::AttributeServer::HasConnectionHandle ( ) const

inline

Check whether a connection handle is set.

◆ HasContext()

bool c7222::AttributeServer::HasContext ( ) const

inline

Check whether a platform context has been stored.

◆ HasServicesRequiringAuthentication()

bool c7222::AttributeServer::HasServicesRequiringAuthentication ( ) const

Check whether any service contains characteristics requiring authentication.

This aggregates the per-service checks and is intended to guide SecurityManager configuration before connections are established.

◆ HasServicesRequiringAuthorization()

bool c7222::AttributeServer::HasServicesRequiringAuthorization ( ) const

Check whether any service contains characteristics requiring authorization.

Authorization implies authentication and typically requires application-level approval.

◆ HasServicesRequiringEncryption()

bool c7222::AttributeServer::HasServicesRequiringEncryption ( ) const

Check whether any service contains characteristics requiring encryption.

◆ Init()

BleError c7222::AttributeServer::Init ( const void * context )

Initialize the ATT server from a platform context.

On the Pico W BLE stack, the context is the BTstack ATT database blob (att_db.h). Other platforms may treat the context differently.

When called the first time, the context pointer is cached in the instance. The Pico W implementation parses the ATT DB and registers BTstack read/write callbacks. Subsequent calls reuse the cached context.

RPi Pico (BTstack) steps:

Cache the ATT DB pointer if not already stored.
Parse the ATT DB into Attribute objects.
Call InitServices() to build services/characteristics.
Register BTstack callbacks via att_server_init().
Mark the server initialized.

Parameters

context Platform-specific context pointer.

Returns: BleError::kSuccess on success.

◆ InitServices()

void c7222::AttributeServer::InitServices ( std::list< Attribute > & attributes )

Initialize services from a parsed attribute list.

This method consumes the ordered attribute list to construct services and characteristics in discovery order. The list is modified in place and may be emptied by the parsing process.

Parameters

attributes Parsed attributes in DB order.

◆ IsAuthorizationGranted()

bool c7222::AttributeServer::IsAuthorizationGranted ( uint16_t connection_handle ) const

Get cached authorization result for the active connection.

◆ IsConnected()

bool c7222::AttributeServer::IsConnected ( ) const

inline

Queries whether a client is connected to the server.

An attribute server is connected if it has a non-zero connection handle.

Here is the caller graph for this function:

◆ IsInitialized()

bool c7222::AttributeServer::IsInitialized ( ) const

inline

Check whether the server was initialized.

◆ ReadAttribute()

ReadResult c7222::AttributeServer::ReadAttribute	(	uint16_t	attribute_handle,
		uint16_t	offset,
		uint8_t *	buffer,
		uint16_t	buffer_size
	)

Handle an ATT read request (internal use).

Used by the platform binding to service BTstack read callbacks.

◆ SetAuthorizationGranted()

void c7222::AttributeServer::SetAuthorizationGranted	(	uint16_t	connection_handle,
		bool	granted
	)

Update cached authorization result for the active connection.

◆ SetConnectionHandle()

void c7222::AttributeServer::SetConnectionHandle ( uint16_t connection_handle )

Set the active connection handle for all characteristics.

This value is propagated into each service/characteristic so that notifications/indications can be sent from Characteristic::UpdateValue().

Here is the caller graph for this function:

◆ SetDisconnected()

void c7222::AttributeServer::SetDisconnected ( )

◆ SetSecurityLevel()

void c7222::AttributeServer::SetSecurityLevel	(	uint16_t	connection_handle,
		uint8_t	security_level
	)

Update cached security level for the active connection.

◆ WriteAttribute()

BleError c7222::AttributeServer::WriteAttribute	(	uint16_t	attribute_handle,
		uint16_t	offset,
		const uint8_t *	data,
		uint16_t	size
	)

Handle an ATT write request (internal use).

Used by the platform binding to service BTstack write callbacks.

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const AttributeServer &	server
	)

friend

Stream insertion operator for attribute server information.

Outputs summary details including:

Initialization state
Service count
Connection handle

The documentation for this class was generated from the following file:

libs/elec_c7222/ble/gatt/include/attribute_server.hpp

Classes

Public Member Functions

Static Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Responsibilities

Security Queries (Planning Before Connections)

Connection Security State (Runtime)

BTstack Integration Details

RPi Pico W (BTstack) Implementation

Typical Usage

Design Assumptions

Internal/Reserved APIs (do not call from application code)

Member Function Documentation

◆ begin() [1/2]

◆ begin() [2/2]

◆ cbegin()

◆ cend()

◆ DispatchBleHciPacket()

◆ end() [1/2]

◆ end() [2/2]

◆ FindCharacteristicByHandle() [1/2]

◆ FindCharacteristicByHandle() [2/2]

◆ FindCharacteristicByUuid() [1/2]

◆ FindCharacteristicByUuid() [2/2]

◆ FindServiceByUuid() [1/2]

◆ FindServiceByUuid() [2/2]

◆ GetConnectionHandle()

◆ GetContext()

◆ GetInstance()

◆ GetSecurityLevel()

◆ GetService() [1/2]

◆ GetService() [2/2]

◆ GetServiceCount()

◆ GetServices() [1/2]

◆ GetServices() [2/2]

◆ HasConnectionHandle()

◆ HasContext()

◆ HasServicesRequiringAuthentication()

◆ HasServicesRequiringAuthorization()

◆ HasServicesRequiringEncryption()

◆ Init()

◆ InitServices()

◆ IsAuthorizationGranted()

◆ IsConnected()

◆ IsInitialized()

◆ ReadAttribute()

◆ SetAuthorizationGranted()

◆ SetConnectionHandle()

◆ SetDisconnected()

◆ SetSecurityLevel()

◆ WriteAttribute()

Friends And Related Symbol Documentation

◆ operator<<
