c7222::PwmOut Class Reference

Output-only PWM wrapper with period and duty configuration. More...

#include <pwm.hpp>

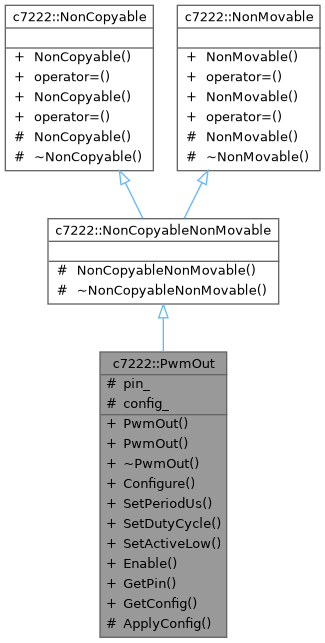

Inheritance diagram for c7222::PwmOut:

Collaboration diagram for c7222::PwmOut:

Classes
struct	Config
	Configuration structure for PWM output setup. More...

Public Member Functions
	PwmOut (uint32_t pin)
	Create a PWM output with default configuration.
	PwmOut (uint32_t pin, const Config &config)
	Create a PWM output with the given configuration.
virtual	~PwmOut ()
	Destructor.
void	Configure (const Config &config)
	Apply a new configuration.
void	SetPeriodUs (float period_us)
	Set PWM period in microseconds.
void	SetDutyCycle (float duty_cycle)
	Set PWM duty cycle fraction [0.0, 1.0].
void	SetActiveLow (bool active_low)
	Set PWM polarity (active-low when true).
void	Enable (bool on)
	Enable or disable the PWM output.
uint32_t	GetPin () const
	Return the GPIO number.
Config	GetConfig () const
	Return the cached configuration.
Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete

Protected Member Functions
void	ApplyConfig ()
	Apply internal configuration to the hardware.
Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default
	~NonCopyableNonMovable ()=default
Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Protected Attributes
uint32_t	pin_
	GPIO pin number managed by this instance.
Config	config_
	Cached configuration used to (re)apply platform settings.

Detailed Description

Output-only PWM wrapper with period and duty configuration.

This class provides a minimal PWM interface:

• Period in microseconds
• Duty cycle as a fraction [0.0, 1.0]

Platform backends map this to the underlying PWM hardware and enforce single ownership per GPIO pin.

Constructor & Destructor Documentation

PwmOut() [1/2]

c7222::PwmOut::PwmOut ( uint32_t  pin )

explicit

Create a PWM output with default configuration.

PwmOut() [2/2]

c7222::PwmOut::PwmOut ( uint32_t  pin, const Config &  config  )

explicit

Create a PWM output with the given configuration.

Parameters

pin	GPIO number.
config	Initial configuration.

~PwmOut()

virtual c7222::PwmOut::~PwmOut ( )

virtual

Destructor.

Platform backends may unregister pin ownership here.

Member Function Documentation

ApplyConfig()

void c7222::PwmOut::ApplyConfig ( )

protected

Apply internal configuration to the hardware.

Implemented by the platform backend.

Configure()

void c7222::PwmOut::Configure

(

const Config &

config

)

Apply a new configuration.

Parameters

config

New configuration.

Enable()

void c7222::PwmOut::Enable

(

bool

on

)

Enable or disable the PWM output.

GetConfig()

Config c7222::PwmOut::GetConfig ( ) const

inline

Return the cached configuration.

GetPin()

uint32_t c7222::PwmOut::GetPin ( ) const

inline

Return the GPIO number.

SetActiveLow()

void c7222::PwmOut::SetActiveLow

(

bool

active_low

)

Set PWM polarity (active-low when true).

SetDutyCycle()

void c7222::PwmOut::SetDutyCycle

(

float

duty_cycle

)

Set PWM duty cycle fraction [0.0, 1.0].

SetPeriodUs()

void c7222::PwmOut::SetPeriodUs

(

float

period_us

)

Set PWM period in microseconds.

Member Data Documentation

config_

Config c7222::PwmOut::config_

protected

Cached configuration used to (re)apply platform settings.

pin_

uint32_t c7222::PwmOut::pin_

protected

GPIO pin number managed by this instance.

---

The documentation for this class was generated from the following file:

• libs/elec_c7222/devices/include/pwm.hpp
