#include <gap.hpp>

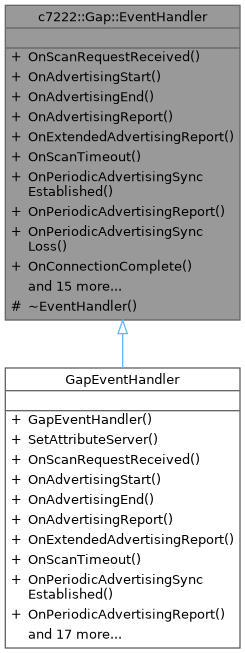

Inheritance diagram for c7222::Gap::EventHandler:

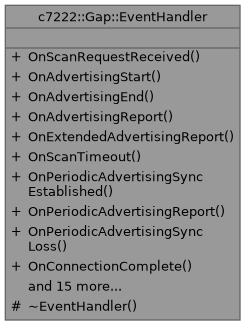

Collaboration diagram for c7222::Gap::EventHandler:

Public Member Functions
virtual void	OnScanRequestReceived (uint8_t advertising_handle, const BleAddress &scanner_address) const
	GAP event callback interface.

virtual void	OnAdvertisingStart (uint8_t status) const

virtual void	OnAdvertisingEnd (uint8_t status, ConnectionHandle connection_handle) const

virtual void	OnAdvertisingReport (const AdvertisingReport &report) const

virtual void	OnExtendedAdvertisingReport (const ExtendedAdvertisingReport &report) const

virtual void	OnScanTimeout (uint8_t status) const

virtual void	OnPeriodicAdvertisingSyncEstablished (uint8_t status, ConnectionHandle sync_handle) const

virtual void	OnPeriodicAdvertisingReport (ConnectionHandle sync_handle, int8_t tx_power, int8_t rssi, uint8_t data_status, const uint8_t *data, uint8_t data_length) const

virtual void	OnPeriodicAdvertisingSyncLoss (ConnectionHandle sync_handle) const

virtual void	OnConnectionComplete (uint8_t status, ConnectionHandle con_handle, const BleAddress &address, uint16_t conn_interval, uint16_t conn_latency, uint16_t supervision_timeout) const

virtual void	OnUpdateConnectionParametersRequest (ConnectionHandle con_handle, uint16_t min_interval, uint16_t max_interval, uint16_t latency, uint16_t supervision_timeout) const

virtual void	OnConnectionParametersUpdateComplete (uint8_t status, ConnectionHandle con_handle, uint16_t conn_interval, uint16_t conn_latency, uint16_t supervision_timeout) const

virtual void	OnDisconnectionComplete (uint8_t status, ConnectionHandle con_handle, uint8_t reason) const

virtual void	OnReadPhy (uint8_t status, ConnectionHandle con_handle, Phy tx_phy, Phy rx_phy) const

virtual void	OnPhyUpdateComplete (uint8_t status, ConnectionHandle con_handle, Phy tx_phy, Phy rx_phy) const

virtual void	OnDataLengthChange (ConnectionHandle con_handle, uint16_t tx_size, uint16_t rx_size) const

virtual void	OnPrivacyEnabled () const

virtual void	OnSecurityLevel (ConnectionHandle con_handle, uint8_t security_level) const

virtual void	OnDedicatedBondingCompleted (uint8_t status, const BleAddress &address) const

virtual void	OnInquiryResult (const InquiryResult &result) const

virtual void	OnInquiryComplete (uint8_t status) const

virtual void	OnRssiMeasurement (ConnectionHandle con_handle, int8_t rssi) const

virtual void	OnLocalOobData (bool oob_data_present, const uint8_t c_192, const uint8_t r_192, const uint8_t c_256, const uint8_t r_256) const

virtual void	OnPairingStarted (ConnectionHandle con_handle, const BleAddress &address, bool ssp, bool initiator) const

virtual void	OnPairingComplete (ConnectionHandle con_handle, const BleAddress &address, uint8_t status) const

Protected Member Functions
	~EventHandler ()=default

Constructor & Destructor Documentation

◆ ~EventHandler()

c7222::Gap::EventHandler::~EventHandler ( )

protecteddefault

Prevent polymorphic deletion and avoid unnecessary virtual destructor as the Gap class will never delete the instance it contains.

Member Function Documentation

◆ OnAdvertisingEnd()

virtual void c7222::Gap::EventHandler::OnAdvertisingEnd	(	uint8_t	status,
		ConnectionHandle	connection_handle
	)		const

inlinevirtual

Called when advertising is disabled or terminated by a connection.

Parameters

status	HCI status (0x00 for success).
connection_handle	Connection handle if ended due to connection, otherwise 0.

BTstack events:

HCI_EVENT_COMMAND_COMPLETE for HCI_LE_SET_ADVERTISING_ENABLE (disable).
HCI_EVENT_LE_META + HCI_SUBEVENT_LE_CONNECTION_COMPLETE / HCI_SUBEVENT_LE_ENHANCED_CONNECTION_COMPLETE when advertising ends due to connection.
HCI_EVENT_LE_META + HCI_SUBEVENT_LE_ADVERTISING_SET_TERMINATED for extended advertising.

Reimplemented in GapEventHandler.

◆ OnAdvertisingReport()

virtual void c7222::Gap::EventHandler::OnAdvertisingReport ( const AdvertisingReport & report ) const

inlinevirtual

Called when GAP_EVENT_ADVERTISING_REPORT is received.

Parameters

report Advertising report payload.

BTstack event: GAP_EVENT_ADVERTISING_REPORT.

Reimplemented in GapEventHandler.

◆ OnAdvertisingStart()

virtual void c7222::Gap::EventHandler::OnAdvertisingStart ( uint8_t status ) const

inlinevirtual

Called when advertising enable completes.

Parameters

status HCI status (0x00 for success).

BTstack event: HCI_EVENT_COMMAND_COMPLETE for HCI_LE_SET_ADVERTISING_ENABLE.

Reimplemented in GapEventHandler.

◆ OnConnectionComplete()

virtual void c7222::Gap::EventHandler::OnConnectionComplete	(	uint8_t	status,
		ConnectionHandle	con_handle,
		const BleAddress &	address,
		uint16_t	conn_interval,
		uint16_t	conn_latency,
		uint16_t	supervision_timeout
	)		const

inlinevirtual

Called when a LE connection completes.

Parameters

status	HCI status (0x00 for success).
con_handle	Connection handle.
address	Peer device address.
conn_interval	Connection interval (unit: 1.25 ms).
conn_latency	Peripheral latency (number of events to skip).
supervision_timeout	Supervision timeout (unit: 10 ms).

BTstack events:

HCI_EVENT_LE_META + HCI_SUBEVENT_LE_CONNECTION_COMPLETE
HCI_EVENT_LE_META + HCI_SUBEVENT_LE_ENHANCED_CONNECTION_COMPLETE

Reimplemented in GapEventHandler.

◆ OnConnectionParametersUpdateComplete()

virtual void c7222::Gap::EventHandler::OnConnectionParametersUpdateComplete	(	uint8_t	status,
		ConnectionHandle	con_handle,
		uint16_t	conn_interval,
		uint16_t	conn_latency,
		uint16_t	supervision_timeout
	)		const

inlinevirtual

Called when connection parameters have been updated.

Parameters

status	HCI status (0x00 for success).
con_handle	Connection handle.
conn_interval	Connection interval (unit: 1.25 ms).
conn_latency	Peripheral latency.
supervision_timeout	Supervision timeout (unit: 10 ms).

BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_CONNECTION_UPDATE_COMPLETE.

Reimplemented in GapEventHandler.

◆ OnDataLengthChange()

virtual void c7222::Gap::EventHandler::OnDataLengthChange	(	ConnectionHandle	con_handle,
		uint16_t	tx_size,
		uint16_t	rx_size
	)		const

inlinevirtual

Called when data length changes for a connection.

Parameters

con_handle	Connection handle.
tx_size	Max TX payload size (octets).
rx_size	Max RX payload size (octets).

BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_DATA_LENGTH_CHANGE.

Reimplemented in GapEventHandler.

◆ OnDedicatedBondingCompleted()

virtual void c7222::Gap::EventHandler::OnDedicatedBondingCompleted	(	uint8_t	status,
		const BleAddress &	address
	)		const

inlinevirtual

Called when GAP_EVENT_DEDICATED_BONDING_COMPLETED is received.

Parameters

status	Status of the bonding procedure.
address	Peer device address.

BTstack event: GAP_EVENT_DEDICATED_BONDING_COMPLETED.

Reimplemented in GapEventHandler.

◆ OnDisconnectionComplete()

virtual void c7222::Gap::EventHandler::OnDisconnectionComplete	(	uint8_t	status,
		ConnectionHandle	con_handle,
		uint8_t	reason
	)		const

inlinevirtual

Called when a connection is disconnected.

Parameters

status	HCI status (0x00 for success).
con_handle	Connection handle.
reason	HCI Disconnect reason.

BTstack event: HCI_EVENT_DISCONNECTION_COMPLETE.

Reimplemented in GapEventHandler.

◆ OnExtendedAdvertisingReport()

virtual void c7222::Gap::EventHandler::OnExtendedAdvertisingReport ( const ExtendedAdvertisingReport & report ) const

inlinevirtual

Called when GAP_EVENT_EXTENDED_ADVERTISING_REPORT is received.

Parameters

report Extended advertising report payload.

BTstack event: GAP_EVENT_EXTENDED_ADVERTISING_REPORT.

Reimplemented in GapEventHandler.

◆ OnInquiryComplete()

virtual void c7222::Gap::EventHandler::OnInquiryComplete ( uint8_t status ) const

inlinevirtual

Called when GAP_EVENT_INQUIRY_COMPLETE is received.

Parameters

status Status of the inquiry procedure.

BTstack event: GAP_EVENT_INQUIRY_COMPLETE.

Reimplemented in GapEventHandler.

◆ OnInquiryResult()

virtual void c7222::Gap::EventHandler::OnInquiryResult ( const InquiryResult & result ) const

inlinevirtual

Called when GAP_EVENT_INQUIRY_RESULT is received.

Parameters

result Inquiry result payload.

BTstack event: GAP_EVENT_INQUIRY_RESULT.

Reimplemented in GapEventHandler.

◆ OnLocalOobData()

virtual void c7222::Gap::EventHandler::OnLocalOobData	(	bool	oob_data_present,
		const uint8_t *	c_192,
		const uint8_t *	r_192,
		const uint8_t *	c_256,
		const uint8_t *	r_256
	)		const

inlinevirtual

Called when GAP_EVENT_LOCAL_OOB_DATA is received.

Parameters

oob_data_present	True if OOB data is available.
c_192	192-bit confirm value (16 bytes).
r_192	192-bit random value (16 bytes).
c_256	256-bit confirm value (16 bytes).
r_256	256-bit random value (16 bytes).

BTstack event: GAP_EVENT_LOCAL_OOB_DATA.

Reimplemented in GapEventHandler.

◆ OnPairingComplete()

virtual void c7222::Gap::EventHandler::OnPairingComplete	(	ConnectionHandle	con_handle,
		const BleAddress &	address,
		uint8_t	status
	)		const

inlinevirtual

Called when GAP_EVENT_PAIRING_COMPLETE is received.

Parameters

con_handle	Connection handle.
address	Peer address.
status	Status of the pairing procedure.

BTstack event: GAP_EVENT_PAIRING_COMPLETE.

Reimplemented in GapEventHandler.

◆ OnPairingStarted()

virtual void c7222::Gap::EventHandler::OnPairingStarted	(	ConnectionHandle	con_handle,
		const BleAddress &	address,
		bool	ssp,
		bool	initiator
	)		const

inlinevirtual

Called when GAP_EVENT_PAIRING_STARTED is received.

Parameters

con_handle	Connection handle.
address	Peer address.
ssp	True if SSP is used.
initiator	True if local device initiated pairing.

BTstack event: GAP_EVENT_PAIRING_STARTED.

Reimplemented in GapEventHandler.

◆ OnPeriodicAdvertisingReport()

virtual void c7222::Gap::EventHandler::OnPeriodicAdvertisingReport	(	ConnectionHandle	sync_handle,
		int8_t	tx_power,
		int8_t	rssi,
		uint8_t	data_status,
		const uint8_t *	data,
		uint8_t	data_length
	)		const

inlinevirtual

Called when a periodic advertising report is received.

Parameters

sync_handle	Sync handle for the periodic advertiser.
tx_power	Transmit power in dBm (signed).
rssi	RSSI in dBm (signed).
data_status	Data status flag from the controller.
data	Periodic advertising data (valid during callback only).
data_length	Number of bytes in the data payload.

BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_PERIODIC_ADVERTISING_REPORT.

Reimplemented in GapEventHandler.

◆ OnPeriodicAdvertisingSyncEstablished()

virtual void c7222::Gap::EventHandler::OnPeriodicAdvertisingSyncEstablished	(	uint8_t	status,
		ConnectionHandle	sync_handle
	)		const

inlinevirtual

Called when periodic advertising sync is established.

Parameters

status	HCI status (0x00 for success).
sync_handle	Sync handle assigned by controller.

BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_PERIODIC_ADVERTISING_SYNC_ESTABLISHMENT.

Reimplemented in GapEventHandler.

◆ OnPeriodicAdvertisingSyncLoss()

virtual void c7222::Gap::EventHandler::OnPeriodicAdvertisingSyncLoss ( ConnectionHandle sync_handle ) const

inlinevirtual

Called when periodic advertising sync is lost.

Parameters

sync_handle Sync handle that was lost.

BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_PERIODIC_ADVERTISING_SYNC_LOST.

Reimplemented in GapEventHandler.

◆ OnPhyUpdateComplete()

virtual void c7222::Gap::EventHandler::OnPhyUpdateComplete	(	uint8_t	status,
		ConnectionHandle	con_handle,
		Phy	tx_phy,
		Phy	rx_phy
	)		const

inlinevirtual

Called when the PHY update process completes.

Parameters

status	HCI status (0x00 for success).
con_handle	Connection handle.
tx_phy	Updated transmit PHY.
rx_phy	Updated receive PHY.

BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_PHY_UPDATE_COMPLETE.

Reimplemented in GapEventHandler.

◆ OnPrivacyEnabled()

virtual void c7222::Gap::EventHandler::OnPrivacyEnabled ( ) const

inlinevirtual

Called when privacy becomes enabled and ready.

BTstack: no dedicated event; call after successful privacy configuration.

Reimplemented in GapEventHandler.

◆ OnReadPhy()

virtual void c7222::Gap::EventHandler::OnReadPhy	(	uint8_t	status,
		ConnectionHandle	con_handle,
		Phy	tx_phy,
		Phy	rx_phy
	)		const

inlinevirtual

Called when LE PHYs have been read.

Parameters

status	HCI status (0x00 for success).
con_handle	Connection handle.
tx_phy	Transmit PHY.
rx_phy	Receive PHY.

BTstack event: HCI_EVENT_COMMAND_COMPLETE for HCI_LE_READ_PHY.

Reimplemented in GapEventHandler.

◆ OnRssiMeasurement()

virtual void c7222::Gap::EventHandler::OnRssiMeasurement	(	ConnectionHandle	con_handle,
		int8_t	rssi
	)		const

inlinevirtual

Called when GAP_EVENT_RSSI_MEASUREMENT is received.

Parameters

con_handle	Connection handle.
rssi	RSSI in dBm (signed).

BTstack event: GAP_EVENT_RSSI_MEASUREMENT.

Reimplemented in GapEventHandler.

◆ OnScanRequestReceived()

virtual void c7222::Gap::EventHandler::OnScanRequestReceived	(	uint8_t	advertising_handle,
		const BleAddress &	scanner_address
	)		const

inlinevirtual

GAP event callback interface.

Handlers are invoked from the BTstack event dispatch context. Event data references (pointers/arrays) are only valid during the callback; copy any data you need to retain beyond the call. Called when the controller reports a scan request to this advertiser.

Parameters

advertising_handle	Advertising set handle.
scanner_address	Address of the scanning device.

BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_SCAN_REQUEST_RECEIVED.

Reimplemented in GapEventHandler.

◆ OnScanTimeout()

virtual void c7222::Gap::EventHandler::OnScanTimeout ( uint8_t status ) const

inlinevirtual

Called when a scan timeout is reported.

Parameters

status HCI status (0x00 for success).

BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_SCAN_TIMEOUT.

Reimplemented in GapEventHandler.

◆ OnSecurityLevel()

virtual void c7222::Gap::EventHandler::OnSecurityLevel	(	ConnectionHandle	con_handle,
		uint8_t	security_level
	)		const

inlinevirtual

Called when GAP_EVENT_SECURITY_LEVEL is received.

Parameters

con_handle	Connection handle for the link.
security_level	Negotiated security level.

BTstack event: GAP_EVENT_SECURITY_LEVEL.

Reimplemented in GapEventHandler.

◆ OnUpdateConnectionParametersRequest()

virtual void c7222::Gap::EventHandler::OnUpdateConnectionParametersRequest	(	ConnectionHandle	con_handle,
		uint16_t	min_interval,
		uint16_t	max_interval,
		uint16_t	latency,
		uint16_t	supervision_timeout
	)		const

inlinevirtual

Called when the peer requests connection parameter updates.

Parameters

con_handle	Connection handle.
min_interval	Minimum requested interval (unit: 1.25 ms).
max_interval	Maximum requested interval (unit: 1.25 ms).
latency	Requested slave latency.
supervision_timeout	Requested supervision timeout (unit: 10 ms).

BTstack events:

HCI_EVENT_LE_META + HCI_SUBEVENT_LE_REMOTE_CONNECTION_PARAMETER_REQUEST
L2CAP_EVENT_CONNECTION_PARAMETER_UPDATE_REQUEST (if using L2CAP events).

Reimplemented in GapEventHandler.

The documentation for this struct was generated from the following file:

libs/elec_c7222/ble/gap/include/gap.hpp

Public Member Functions

Protected Member Functions

Constructor & Destructor Documentation

◆ ~EventHandler()

Member Function Documentation

◆ OnAdvertisingEnd()

◆ OnAdvertisingReport()

◆ OnAdvertisingStart()

◆ OnConnectionComplete()

◆ OnConnectionParametersUpdateComplete()

◆ OnDataLengthChange()

◆ OnDedicatedBondingCompleted()

◆ OnDisconnectionComplete()

◆ OnExtendedAdvertisingReport()

◆ OnInquiryComplete()

◆ OnInquiryResult()

◆ OnLocalOobData()

◆ OnPairingComplete()

◆ OnPairingStarted()

◆ OnPeriodicAdvertisingReport()

◆ OnPeriodicAdvertisingSyncEstablished()

◆ OnPeriodicAdvertisingSyncLoss()

◆ OnPhyUpdateComplete()

◆ OnPrivacyEnabled()

◆ OnReadPhy()

◆ OnRssiMeasurement()

◆ OnScanRequestReceived()

◆ OnScanTimeout()

◆ OnSecurityLevel()

◆ OnUpdateConnectionParametersRequest()
