Minimal GAP event handler for example applications. More...

#include <gap_event_handler.hpp>

Inheritance diagram for GapEventHandler:

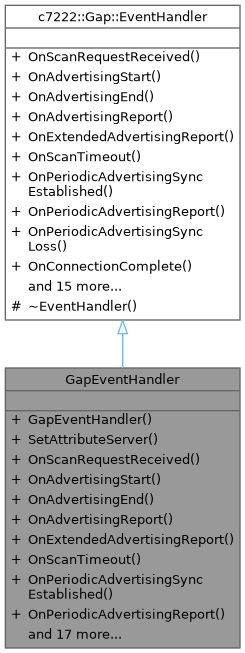

Collaboration diagram for GapEventHandler:

Public Member Functions
	GapEventHandler (c7222::Gap gap=c7222::Gap::GetInstance(), c7222::AttributeServer attribute_server=nullptr)
	Construct a handler with optional GAP and AttributeServer pointers.

void	SetAttributeServer (c7222::AttributeServer *attribute_server)
	Attach an attribute server after construction.

void	OnScanRequestReceived (uint8_t advertising_handle, const c7222::BleAddress &scanner_address) const override
	Logs scan requests received by the advertiser.

void	OnAdvertisingStart (uint8_t status) const override
	Logs the start of advertising.

void	OnAdvertisingEnd (uint8_t status, c7222::ConnectionHandle connection_handle) const override
	Logs the end of advertising.

void	OnAdvertisingReport (const c7222::Gap::AdvertisingReport &report) const override
	Logs legacy advertising reports.

void	OnExtendedAdvertisingReport (const c7222::Gap::ExtendedAdvertisingReport &report) const override
	Logs extended advertising reports.

void	OnScanTimeout (uint8_t status) const override
	Logs a scan timeout event.

void	OnPeriodicAdvertisingSyncEstablished (uint8_t status, c7222::ConnectionHandle sync_handle) const override
	Logs periodic advertising sync establishment.

void	OnPeriodicAdvertisingReport (c7222::ConnectionHandle sync_handle, int8_t tx_power, int8_t rssi, uint8_t data_status, const uint8_t *data, uint8_t data_length) const override
	Logs a periodic advertising report.

void	OnPeriodicAdvertisingSyncLoss (c7222::ConnectionHandle sync_handle) const override
	Logs loss of periodic advertising sync.

void	OnConnectionComplete (uint8_t status, c7222::ConnectionHandle con_handle, const c7222::BleAddress &address, uint16_t conn_interval, uint16_t conn_latency, uint16_t supervision_timeout) const override
	Logs new connections and updates the attribute server handle.

void	OnUpdateConnectionParametersRequest (c7222::ConnectionHandle con_handle, uint16_t min_interval, uint16_t max_interval, uint16_t latency, uint16_t supervision_timeout) const override
	Logs a request to update connection parameters.

void	OnConnectionParametersUpdateComplete (uint8_t status, c7222::ConnectionHandle con_handle, uint16_t conn_interval, uint16_t conn_latency, uint16_t supervision_timeout) const override
	Logs completion of connection parameter updates.

void	OnDisconnectionComplete (uint8_t status, c7222::ConnectionHandle con_handle, uint8_t reason) const override
	Logs disconnections and restarts advertising.

void	OnReadPhy (uint8_t status, c7222::ConnectionHandle con_handle, c7222::Gap::Phy tx_phy, c7222::Gap::Phy rx_phy) const override
	Logs PHY read results.

void	OnPhyUpdateComplete (uint8_t status, c7222::ConnectionHandle con_handle, c7222::Gap::Phy tx_phy, c7222::Gap::Phy rx_phy) const override
	Logs PHY update completion.

void	OnDataLengthChange (c7222::ConnectionHandle con_handle, uint16_t tx_size, uint16_t rx_size) const override
	Logs data length changes.

void	OnPrivacyEnabled () const override
	Logs that privacy mode has been enabled.

void	OnSecurityLevel (c7222::ConnectionHandle con_handle, uint8_t security_level) const override
	Logs the negotiated security level.

void	OnDedicatedBondingCompleted (uint8_t status, const c7222::BleAddress &address) const override
	Logs completion of dedicated bonding.

void	OnInquiryResult (const c7222::Gap::InquiryResult &result) const override
	Logs inquiry results.

void	OnInquiryComplete (uint8_t status) const override
	Logs completion of inquiry.

void	OnRssiMeasurement (c7222::ConnectionHandle con_handle, int8_t rssi) const override
	Logs RSSI measurements.

void	OnLocalOobData (bool oob_data_present, const uint8_t c_192, const uint8_t r_192, const uint8_t c_256, const uint8_t r_256) const override
	Logs presence of local OOB data.

void	OnPairingStarted (c7222::ConnectionHandle con_handle, const c7222::BleAddress &address, bool ssp, bool initiator) const override
	Logs the start of pairing.

void	OnPairingComplete (c7222::ConnectionHandle con_handle, const c7222::BleAddress &address, uint8_t status) const override
	Logs completion of pairing.

Additional Inherited Members
Protected Member Functions inherited from c7222::Gap::EventHandler
	~EventHandler ()=default

Detailed Description

Minimal GAP event handler for example applications.

Tracks and prints GAP events. Used in BLE examples as a lightweight way to observe advertising, scanning, and connection activity.

The stored Gap instance is used to restart advertising on disconnect. The optional AttributeServer instance is used to set the active connection handle when a connection completes, which is required for GATT operations.

Constructor & Destructor Documentation

◆ GapEventHandler()

GapEventHandler::GapEventHandler	(	c7222::Gap *	gap = `c7222::Gap::GetInstance()`,
		c7222::AttributeServer *	attribute_server = `nullptr`
	)

explicit

Construct a handler with optional GAP and AttributeServer pointers.

Parameters

gap	GAP singleton used for actions like restarting advertising.
attribute_server	Optional attribute server updated on connect.

Member Function Documentation

◆ OnAdvertisingEnd()

void GapEventHandler::OnAdvertisingEnd	(	uint8_t	status,
		c7222::ConnectionHandle	connection_handle
	)		const

overridevirtual

Logs the end of advertising.

Reimplemented from c7222::Gap::EventHandler.

◆ OnAdvertisingReport()

void GapEventHandler::OnAdvertisingReport ( const c7222::Gap::AdvertisingReport & report ) const

overridevirtual

Logs legacy advertising reports.

Reimplemented from c7222::Gap::EventHandler.

◆ OnAdvertisingStart()

void GapEventHandler::OnAdvertisingStart ( uint8_t status ) const

overridevirtual

Logs the start of advertising.

Reimplemented from c7222::Gap::EventHandler.

◆ OnConnectionComplete()

void GapEventHandler::OnConnectionComplete	(	uint8_t	status,
		c7222::ConnectionHandle	con_handle,
		const c7222::BleAddress &	address,
		uint16_t	conn_interval,
		uint16_t	conn_latency,
		uint16_t	supervision_timeout
	)		const

overridevirtual

Logs new connections and updates the attribute server handle.

Reimplemented from c7222::Gap::EventHandler.

Here is the call graph for this function:

◆ OnConnectionParametersUpdateComplete()

void GapEventHandler::OnConnectionParametersUpdateComplete	(	uint8_t	status,
		c7222::ConnectionHandle	con_handle,
		uint16_t	conn_interval,
		uint16_t	conn_latency,
		uint16_t	supervision_timeout
	)		const

overridevirtual

Logs completion of connection parameter updates.

Reimplemented from c7222::Gap::EventHandler.

◆ OnDataLengthChange()

void GapEventHandler::OnDataLengthChange	(	c7222::ConnectionHandle	con_handle,
		uint16_t	tx_size,
		uint16_t	rx_size
	)		const

overridevirtual

Logs data length changes.

Reimplemented from c7222::Gap::EventHandler.

◆ OnDedicatedBondingCompleted()

void GapEventHandler::OnDedicatedBondingCompleted	(	uint8_t	status,
		const c7222::BleAddress &	address
	)		const

overridevirtual

Logs completion of dedicated bonding.

Reimplemented from c7222::Gap::EventHandler.

◆ OnDisconnectionComplete()

void GapEventHandler::OnDisconnectionComplete	(	uint8_t	status,
		c7222::ConnectionHandle	con_handle,
		uint8_t	reason
	)		const

overridevirtual

Logs disconnections and restarts advertising.

Reimplemented from c7222::Gap::EventHandler.

Here is the call graph for this function:

◆ OnExtendedAdvertisingReport()

void GapEventHandler::OnExtendedAdvertisingReport ( const c7222::Gap::ExtendedAdvertisingReport & report ) const

overridevirtual

Logs extended advertising reports.

Reimplemented from c7222::Gap::EventHandler.

◆ OnInquiryComplete()

void GapEventHandler::OnInquiryComplete ( uint8_t status ) const

overridevirtual

Logs completion of inquiry.

Reimplemented from c7222::Gap::EventHandler.

◆ OnInquiryResult()

void GapEventHandler::OnInquiryResult ( const c7222::Gap::InquiryResult & result ) const

overridevirtual

Logs inquiry results.

Reimplemented from c7222::Gap::EventHandler.

◆ OnLocalOobData()

void GapEventHandler::OnLocalOobData	(	bool	oob_data_present,
		const uint8_t *	c_192,
		const uint8_t *	r_192,
		const uint8_t *	c_256,
		const uint8_t *	r_256
	)		const

overridevirtual

Logs presence of local OOB data.

Reimplemented from c7222::Gap::EventHandler.

◆ OnPairingComplete()

void GapEventHandler::OnPairingComplete	(	c7222::ConnectionHandle	con_handle,
		const c7222::BleAddress &	address,
		uint8_t	status
	)		const

overridevirtual

Logs completion of pairing.

Reimplemented from c7222::Gap::EventHandler.

◆ OnPairingStarted()

void GapEventHandler::OnPairingStarted	(	c7222::ConnectionHandle	con_handle,
		const c7222::BleAddress &	address,
		bool	ssp,
		bool	initiator
	)		const

overridevirtual

Logs the start of pairing.

Reimplemented from c7222::Gap::EventHandler.

◆ OnPeriodicAdvertisingReport()

void GapEventHandler::OnPeriodicAdvertisingReport	(	c7222::ConnectionHandle	sync_handle,
		int8_t	tx_power,
		int8_t	rssi,
		uint8_t	data_status,
		const uint8_t *	data,
		uint8_t	data_length
	)		const

overridevirtual

Logs a periodic advertising report.

Reimplemented from c7222::Gap::EventHandler.

◆ OnPeriodicAdvertisingSyncEstablished()

void GapEventHandler::OnPeriodicAdvertisingSyncEstablished	(	uint8_t	status,
		c7222::ConnectionHandle	sync_handle
	)		const

overridevirtual

Logs periodic advertising sync establishment.

Reimplemented from c7222::Gap::EventHandler.

◆ OnPeriodicAdvertisingSyncLoss()

void GapEventHandler::OnPeriodicAdvertisingSyncLoss ( c7222::ConnectionHandle sync_handle ) const

overridevirtual

Logs loss of periodic advertising sync.

Reimplemented from c7222::Gap::EventHandler.

◆ OnPhyUpdateComplete()

void GapEventHandler::OnPhyUpdateComplete	(	uint8_t	status,
		c7222::ConnectionHandle	con_handle,
		c7222::Gap::Phy	tx_phy,
		c7222::Gap::Phy	rx_phy
	)		const

overridevirtual

Logs PHY update completion.

Reimplemented from c7222::Gap::EventHandler.

◆ OnPrivacyEnabled()

void GapEventHandler::OnPrivacyEnabled ( ) const

overridevirtual

Logs that privacy mode has been enabled.

Reimplemented from c7222::Gap::EventHandler.

◆ OnReadPhy()

void GapEventHandler::OnReadPhy	(	uint8_t	status,
		c7222::ConnectionHandle	con_handle,
		c7222::Gap::Phy	tx_phy,
		c7222::Gap::Phy	rx_phy
	)		const

overridevirtual

Logs PHY read results.

Reimplemented from c7222::Gap::EventHandler.

◆ OnRssiMeasurement()

void GapEventHandler::OnRssiMeasurement	(	c7222::ConnectionHandle	con_handle,
		int8_t	rssi
	)		const

overridevirtual

Logs RSSI measurements.

Reimplemented from c7222::Gap::EventHandler.

◆ OnScanRequestReceived()

void GapEventHandler::OnScanRequestReceived	(	uint8_t	advertising_handle,
		const c7222::BleAddress &	scanner_address
	)		const

overridevirtual

Logs scan requests received by the advertiser.

Reimplemented from c7222::Gap::EventHandler.

◆ OnScanTimeout()

void GapEventHandler::OnScanTimeout ( uint8_t status ) const

overridevirtual

Logs a scan timeout event.

Reimplemented from c7222::Gap::EventHandler.

◆ OnSecurityLevel()

void GapEventHandler::OnSecurityLevel	(	c7222::ConnectionHandle	con_handle,
		uint8_t	security_level
	)		const

overridevirtual

Logs the negotiated security level.

Reimplemented from c7222::Gap::EventHandler.

◆ OnUpdateConnectionParametersRequest()

void GapEventHandler::OnUpdateConnectionParametersRequest	(	c7222::ConnectionHandle	con_handle,
		uint16_t	min_interval,
		uint16_t	max_interval,
		uint16_t	latency,
		uint16_t	supervision_timeout
	)		const

overridevirtual

Logs a request to update connection parameters.

Reimplemented from c7222::Gap::EventHandler.

◆ SetAttributeServer()

void GapEventHandler::SetAttributeServer ( c7222::AttributeServer * attribute_server )

Attach an attribute server after construction.

When a connection is established, the handler will call AttributeServer::SetConnectionHandle() with the active handle.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

libs/elec_c7222/examples/ble/common/gap_event_handler.hpp
libs/elec_c7222/examples/ble/common/gap_event_handler.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GapEventHandler()

Member Function Documentation

◆ OnAdvertisingEnd()

◆ OnAdvertisingReport()

◆ OnAdvertisingStart()

◆ OnConnectionComplete()

◆ OnConnectionParametersUpdateComplete()

◆ OnDataLengthChange()

◆ OnDedicatedBondingCompleted()

◆ OnDisconnectionComplete()

◆ OnExtendedAdvertisingReport()

◆ OnInquiryComplete()

◆ OnInquiryResult()

◆ OnLocalOobData()

◆ OnPairingComplete()

◆ OnPairingStarted()

◆ OnPeriodicAdvertisingReport()

◆ OnPeriodicAdvertisingSyncEstablished()

◆ OnPeriodicAdvertisingSyncLoss()

◆ OnPhyUpdateComplete()

◆ OnPrivacyEnabled()

◆ OnReadPhy()

◆ OnRssiMeasurement()

◆ OnScanRequestReceived()

◆ OnScanTimeout()

◆ OnSecurityLevel()

◆ OnUpdateConnectionParametersRequest()

◆ SetAttributeServer()
