Manages Generic Access Profile (GAP) functionality for BLE. More...

#include <gap.hpp>

Inheritance diagram for c7222::Gap:

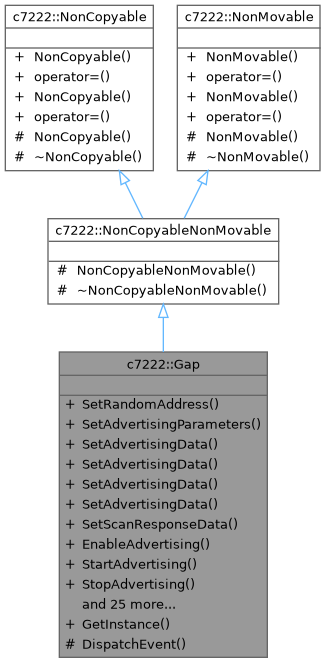

Collaboration diagram for c7222::Gap:

Classes
struct	AdvertisementParameters

struct	AdvertisingReport

struct	ConnectionParameters

struct	EventHandler

struct	ExtendedAdvertisingReport

struct	InquiryResult

struct	PreferredConnectionParameters

Public Types
enum class	EventId : uint8_t { kSecurityLevel , kDedicatedBondingCompleted , kAdvertisingReport , kExtendedAdvertisingReport , kInquiryResult , kInquiryComplete , kRssiMeasurement , kLocalOobData , kPairingStarted , kPairingComplete , kDisconnectionComplete , kCommandComplete , kLeScanRequestReceived , kLeScanTimeout , kLePeriodicAdvertisingSyncEstablished , kLePeriodicAdvertisingReport , kLePeriodicAdvertisingSyncLost , kLeConnectionComplete , kLeEnhancedConnectionComplete , kLeRemoteConnectionParameterRequest , kLeConnectionUpdateComplete , kLePhyUpdateComplete , kLeDataLengthChange , kLeAdvertisingSetTerminated , kL2capConnectionParameterUpdateRequest , kPrivacyEnabled }
	Event IDs used by Gap::EventHandler. More...

enum class	AdvertisingEventType : uint16_t { kConnectable = 0x0001 , kScannable = 0x0002 , kDirected = 0x0004 , kHighDutyCycle = 0x0008 , kLegacy = 0x0010 , kAnonymous = 0x0020 , kIncludeTxPower = 0x0040 }
	Extended advertising event properties (bitfield). More...

enum class	Phy : uint8_t { kNone = 0x00 , kLe1M = 0x01 , kLe2M = 0x02 , kLeCoded = 0x03 }
	LE PHY values reported in extended advertising reports. More...

enum class	AdvertisingType : uint8_t { kAdvInd = 0x00 , kAdvDirectInd = 0x01 , kAdvScanInd = 0x02 , kAdvNonConnInd = 0x03 }
	Legacy advertising types for LE advertising parameters. More...

enum class	DirectAddressType : uint8_t { kPublic = 0x00 , kRandom = 0x01 }
	Direct address type for directed advertising. More...

enum class	AdvertisingChannelMap : uint8_t { kChannel37 = 0x01 , kChannel38 = 0x02 , kChannel39 = 0x04 , kAll = 0x07 }
	Advertising channel map bitfield. More...

enum class	AdvertisingFilterPolicy : uint8_t { kScanAnyConnectAny = 0x00 , kScanWhitelistConnectAny = 0x01 , kScanAnyConnectWhitelist = 0x02 , kScanWhitelistConnectWhitelist = 0x03 }
	Advertising filter policy. More...

Public Member Functions
void	SetRandomAddress (const BleAddress &address)
	Set a fixed random address for advertising.

void	SetAdvertisingParameters (const AdvertisementParameters &params)
	Configure legacy advertising parameters.

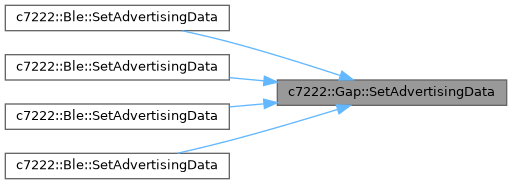

void	SetAdvertisingData (const uint8_t *data, size_t size)
	Set legacy advertising data payload.

void	SetAdvertisingData (const std::vector< uint8_t > &data)
	Set legacy advertising data payload from a vector.

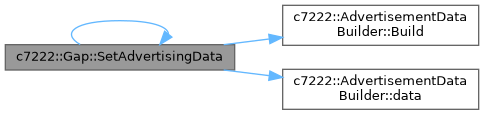

void	SetAdvertisingData (const AdvertisementDataBuilder &data_builder)
	Set legacy advertising data payload from an AdvertisementDataBuilder.

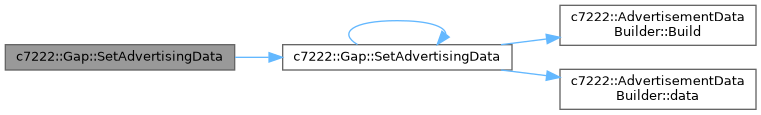

void	SetAdvertisingData ()
	Set legacy advertising data payload from the internal builder.

void	SetScanResponseData (uint8_t length, const uint8_t *data)
	Set scan response data payload (ADV_SCAN_IND).

void	EnableAdvertising (bool enabled)
	Enable or disable advertising.

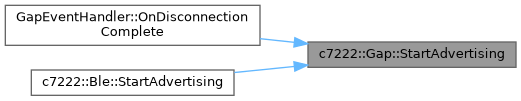

void	StartAdvertising ()
	Convenience helpers for starting/stopping advertising.

void	StopAdvertising ()

BleError	RequestConnectionParameterUpdate (ConnectionHandle con_handle, const PreferredConnectionParameters &params)
	Request a connection parameter update (peripheral role).

BleError	UpdateConnectionParameters (ConnectionHandle con_handle, const PreferredConnectionParameters &params)
	Update connection parameters (central role).

BleError	ReadRssi (ConnectionHandle con_handle)
	Read the RSSI for a connection.

BleError	Disconnect (ConnectionHandle con_handle)
	Disconnect a connection by handle.

void	SetLocalAddress (BleAddress &address)
	Read the local device address.

void	AddEventHandler (const EventHandler &handler)
	Register an event handler.

bool	RemoveEventHandler (const EventHandler &handler)
	Unregister an event handler.

void	ClearEventHandlers ()
	Clear all registered event handlers.

std::list< const EventHandler * >	GetEventHandlers () const
	Get the list of registered event handlers.

bool	GetConnectionParameters (ConnectionHandle con_handle, ConnectionParameters &out) const
	Get cached connection parameters for a handle.

bool	IsAdvertisingEnabled () const
	Check if advertising is currently enabled.

bool	IsAdvertising () const
	Check if advertising is currently running on the controller.

bool	IsAdvertisingParametersSet () const
	Check if advertising parameters have been set.

bool	IsConnected () const
	Check if a connection is active.

bool	GetRandomAddress (BleAddress &address) const
	Get the random address if set.

bool	IsRandomAddressSet () const
	Check if a random address has been set.

bool	GetAdvertisingParameters (AdvertisementParameters &params) const
	Get the current advertising parameters.

const std::vector< uint8_t > &	GetAdvertisingData () const
	Get the advertising data payload.

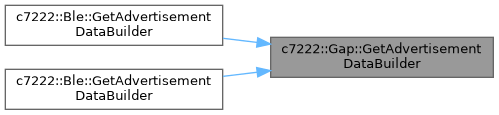

AdvertisementDataBuilder &	GetAdvertisementDataBuilder ()
	Access the internal advertisement data builder.

const AdvertisementDataBuilder &	GetAdvertisementDataBuilder () const
	Access the internal advertisement data builder (const).

bool	IsAdvertisingDataSet () const
	Check if advertising data has been set.

const std::vector< uint8_t > &	scan_response_data () const
	Get the scan response data payload.

bool	IsScanResponseDataSet () const
	Check if scan response data has been set.

const std::map< ConnectionHandle, ConnectionParameters > &	GetConnectionParameters () const
	Access the cached connection parameter map.

virtual BleError	DispatchBleHciPacket (uint8_t packet_type, const uint8_t *packet_data, uint16_t packet_data_size)
	Dispatch a raw HCI packet into the GAP event pipeline.

Public Member Functions inherited from c7222::NonCopyable
	NonCopyable (const NonCopyable &)=delete

NonCopyable &	operator= (const NonCopyable &)=delete

	NonCopyable (NonCopyable &&)=default

NonCopyable &	operator= (NonCopyable &&)=default

Public Member Functions inherited from c7222::NonMovable
	NonMovable (const NonMovable &)=default

NonMovable &	operator= (const NonMovable &)=default

	NonMovable (NonMovable &&)=delete

NonMovable &	operator= (NonMovable &&)=delete

Static Public Member Functions
static Gap *	GetInstance ()
	Get the singleton instance.

Protected Member Functions
virtual BleError	DispatchEvent (EventId event_id, const uint8_t *event_data, uint16_t event_data_size)
	Dispatch a mapped GAP event to registered handlers.

Protected Member Functions inherited from c7222::NonCopyableNonMovable
	NonCopyableNonMovable ()=default

	~NonCopyableNonMovable ()=default

Protected Member Functions inherited from c7222::NonCopyable
	NonCopyable ()=default

	~NonCopyable ()=default

Protected Member Functions inherited from c7222::NonMovable
	NonMovable ()=default

	~NonMovable ()=default

Detailed Description

Manages Generic Access Profile (GAP) functionality for BLE.

This class provides a high-level, object-oriented interface for managing the BLE GAP layer, acting as a C++ wrapper around the underlying C-based BTstack API. It simplifies common GAP operations such as advertising and connection management by maintaining state and handling HCI event dispatching. Scanning is currently exposed only via events, not via public start/stop APIs.

The Gap class is implemented as a singleton, accessible via GetInstance(), ensuring a single point of control for the device's GAP layer.

Design Logic

The class abstracts away the low-level details of the BTstack. It works by:

Configuration Caching: Storing advertising parameters, data, and other settings within the class.
State Management: Tracking the advertising state (IsAdvertisingEnabled()) and connection status (IsConnected()).
Event-Driven Callbacks: Using the EventHandler interface, which users can implement to react to BLE events (e.g., connection, disconnection, advertising reports) in a clean, C++ idiomatic way.
HCI Event Dispatching: The DispatchBleHciPacket method is the entry point for raw HCI events from the BTstack, which are then parsed and forwarded to the appropriate EventHandler methods. Your application must call this for events to reach the handlers.

Advertising Configuration (Legacy)

To start advertising, you must configure three main components:

Advertising Parameters: Define the "how" of advertising.
- Type: Connectable, scannable, non-connectable, etc.
- Interval: The frequency of advertising packets.
- Channels: Which BLE channels to advertise on. This is configured using SetAdvertisingParameters().
Advertising Data: The main payload (up to 31 bytes) that is broadcast to all listening devices. This typically includes flags and the device name. This is configured using SetAdvertisingData().
Scan Response Data (Optional): An additional 31-byte payload that a central device can request after seeing the initial advertisement. This is often used for supplementary information that doesn't fit in the main payload. This is configured using SetScanResponseData().

Applying Configurations and Utilities

**SetAdvertisingParameters(const AdvertisementParameters& params):** Takes a struct that defines the advertising behavior. A default-constructed AdvertisementParameters provides standard connectable, undirected advertising settings.
**SetAdvertisingData(...) / SetScanResponseData(...):** These methods accept a raw pointer and length. For convenience, SetAdvertisingData is overloaded to accept a std::vector<uint8_t> or an AdvertisementDataBuilder instance, which is the recommended utility for safely constructing valid advertising payloads.
**StartAdvertising() / StopAdvertising():** Simple methods to enable or disable advertising.

Dynamic Data Updates

You can update advertising or scan response data at any time, even while advertising is active. The SetAdvertisingData and SetScanResponseData methods will automatically handle the underlying requirements of the RPi Pico BLE stack: they temporarily stop advertising, apply the new data, and restart advertising if it was previously enabled. This ensures a seamless update without manual intervention.

Limitations / Future Work

Extended advertising: not implemented in this wrapper yet. The API only supports legacy advertising (31-byte payloads, ADV_* types).
Scanning control: scan start/stop configuration is not exposed yet. Only scan-related events are surfaced via EventHandler.

Complete Code Example (Peripheral / Advertising)

Below is a complete example of setting up and starting a connectable BLE advertisement with a device name. It also shows a minimal event dispatch hook that forwards BTstack HCI events into the Gap instance.

#include "gap.hpp"
#include "advertisement_data.hpp"
#include <iostream>

// --- 1. Implement an event handler ---
class MyGapEventHandler : public c7222::Gap::EventHandler {
public:
    void OnAdvertisingStart(uint8_t status) const override {
        if (status == 0) {
            std::cout << "Advertising started successfully." << std::endl;
        } else {
            std::cout << "Failed to start advertising, status: " << (int)status << std::endl;
        }
    }

    void OnConnectionComplete(uint8_t status, c7222::ConnectionHandle handle,
                              const c7222::BleAddress& address,
                              uint16_t, uint16_t, uint16_t) const override {
        if (status == 0) {
            std::cout << "Device connected: " << address << std::endl;
        }
    }

    void OnDisconnectionComplete(uint8_t status, c7222::ConnectionHandle handle,
                                 uint8_t reason) const override {
        std::cout << "Device disconnected, reason: " << (int)reason << std::endl;
        // After disconnection, we can restart advertising.
        c7222::Gap::GetInstance().StartAdvertising();
        std::cout << "Advertising restarted." << std::endl;
    }
};

// --- Main application logic ---
void setup_ble_advertising() {
    // Get the singleton instance of the Gap class.
    auto& gap = c7222::Gap::GetInstance();

    // --- 2. Register the event handler ---
    // Note: The handler instance must exist for the lifetime of the application.
    static MyGapEventHandler my_handler;
    gap.AddEventHandler(my_handler);

    // --- 3. Configure advertising parameters ---
    // We can use the default parameters for standard connectable advertising.
    c7222::Gap::AdvertisementParameters params;
    // Set a custom interval: 200ms to 250ms
    // Interval is in units of 0.625 ms, so 320 * 0.625 = 200ms, 400 * 0.625 = 250ms
    params.min_interval = 320;
    params.max_interval = 400;
    gap.SetAdvertisingParameters(params);

    // --- 4. Build and set advertising data ---
    c7222::AdvertisementDataBuilder ad_builder;
    ad_builder.add(c7222::AdvertisementDataType::kFlags,
                   c7222::AdvertisementData::Flags::kLeGeneralDiscoverableMode |
                   c7222::AdvertisementData::Flags::kBrEdrNotSupported);
    ad_builder.add(c7222::AdvertisementDataType::kCompleteLocalName, "PicoW-BLE");
    gap.SetAdvertisingData(ad_builder);

    // --- 5. Start advertising ---
    gap.StartAdvertising();
}

// Forward BTstack HCI events to Gap. Call this from your BTstack callback.
void on_btstack_event(uint8_t packet_type, const uint8_t* packet, uint16_t size) {
    c7222::Gap::GetInstance().DispatchBleHciPacket(packet_type, packet, size);
}

// In your main function, call setup_ble_advertising() and then
// process BLE events in your main loop (e.g., ble_stack_process()).

Minimal Event-Only Example (e.g., central role)

If another component configures scanning or connections, you can still use Gap for event handling by registering a handler and dispatching HCI events.

#include "gap.hpp"

class MyGapEventHandler : public c7222::Gap::EventHandler {
public:
    void OnConnectionComplete(uint8_t status, c7222::ConnectionHandle handle,
                              const c7222::BleAddress&, uint16_t, uint16_t, uint16_t) const
override { if (status == 0) { (void)handle;
        }
    }
};

void init_gap_events() {
    static MyGapEventHandler handler;
    c7222::Gap::GetInstance().AddEventHandler(handler);
}

Member Enumeration Documentation

◆ AdvertisingChannelMap

enum class c7222::Gap::AdvertisingChannelMap : uint8_t

strong

Advertising channel map bitfield.

Enumerator
kChannel37	Channel 37 enabled.
kChannel38	Channel 38 enabled.
kChannel39	Channel 39 enabled.
kAll	All advertising channels enabled (37, 38, 39).

◆ AdvertisingEventType

enum class c7222::Gap::AdvertisingEventType : uint16_t

strong

Extended advertising event properties (bitfield).

Enumerator
kConnectable	Advertising is connectable.
kScannable	Advertising is scannable.
kDirected	Advertising is directed to a specific peer.
kHighDutyCycle	High duty cycle directed advertising.
kLegacy	Legacy advertising PDUs.
kAnonymous	Advertiser address is omitted from the report.
kIncludeTxPower	Include the TX power in the report.

◆ AdvertisingFilterPolicy

enum class c7222::Gap::AdvertisingFilterPolicy : uint8_t

strong

Advertising filter policy.

Enumerator
kScanAnyConnectAny	Allow any scan and any connect request.
kScanWhitelistConnectAny	Allow scan from whitelist, connect from any.
kScanAnyConnectWhitelist	Allow scan from any, connect from whitelist.
kScanWhitelistConnectWhitelist	Allow scan and connect from whitelist only.

◆ AdvertisingType

enum class c7222::Gap::AdvertisingType : uint8_t

strong

Legacy advertising types for LE advertising parameters.

Enumerator
kAdvInd	Connectable undirected advertising (ADV_IND).
kAdvDirectInd	Connectable directed advertising (ADV_DIRECT_IND).
kAdvScanInd	Scannable undirected advertising (ADV_SCAN_IND).
kAdvNonConnInd	Non-connectable undirected advertising (ADV_NONCONN_IND).

◆ DirectAddressType

enum class c7222::Gap::DirectAddressType : uint8_t

strong

Direct address type for directed advertising.

Enumerator
kPublic	Public device address.
kRandom	Random device address.

◆ EventId

enum class c7222::Gap::EventId : uint8_t

strong

Event IDs used by Gap::EventHandler.

Enumerator
kSecurityLevel	Security level update for an active connection. BTstack event: GAP_EVENT_SECURITY_LEVEL.
kDedicatedBondingCompleted	Dedicated bonding procedure finished with status and peer address. BTstack event: GAP_EVENT_DEDICATED_BONDING_COMPLETED.
kAdvertisingReport	Legacy advertising report while scanning. BTstack event: GAP_EVENT_ADVERTISING_REPORT.
kExtendedAdvertisingReport	Extended advertising report while scanning. BTstack event: GAP_EVENT_EXTENDED_ADVERTISING_REPORT.
kInquiryResult	Classic inquiry result payload received. BTstack event: GAP_EVENT_INQUIRY_RESULT.
kInquiryComplete	Inquiry procedure completed. BTstack event: GAP_EVENT_INQUIRY_COMPLETE.
kRssiMeasurement	RSSI measurement result for a connection. BTstack event: GAP_EVENT_RSSI_MEASUREMENT.
kLocalOobData	Local out-of-band data generated or available. BTstack event: GAP_EVENT_LOCAL_OOB_DATA.
kPairingStarted	Pairing procedure has started. BTstack event: GAP_EVENT_PAIRING_STARTED.
kPairingComplete	Pairing procedure has completed with status. BTstack event: GAP_EVENT_PAIRING_COMPLETE.
kDisconnectionComplete	A connection was terminated with a reason code. BTstack event: HCI_EVENT_DISCONNECTION_COMPLETE.
kCommandComplete	Generic HCI command completion event (check opcode for details). BTstack event: HCI_EVENT_COMMAND_COMPLETE.
kLeScanRequestReceived	Scan request received by an advertiser. BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_SCAN_REQUEST_RECEIVED.
kLeScanTimeout	LE scan procedure timed out. BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_SCAN_TIMEOUT.
kLePeriodicAdvertisingSyncEstablished	Periodic advertising sync established. BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_PERIODIC_ADVERTISING_SYNC_ESTABLISHMENT.
kLePeriodicAdvertisingReport	Periodic advertising report received. BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_PERIODIC_ADVERTISING_REPORT.
kLePeriodicAdvertisingSyncLost	Periodic advertising sync lost. BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_PERIODIC_ADVERTISING_SYNC_LOST.
kLeConnectionComplete	LE connection complete (legacy subevent). BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_CONNECTION_COMPLETE.
kLeEnhancedConnectionComplete	LE enhanced connection complete (addresses included). BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_ENHANCED_CONNECTION_COMPLETE.
kLeRemoteConnectionParameterRequest	Remote device requests connection parameter updates. BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_REMOTE_CONNECTION_PARAMETER_REQUEST.
kLeConnectionUpdateComplete	Connection parameters update completed. BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_CONNECTION_UPDATE_COMPLETE.
kLePhyUpdateComplete	LE PHY update procedure completed. BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_PHY_UPDATE_COMPLETE.
kLeDataLengthChange	LE data length update reported for a connection. BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_DATA_LENGTH_CHANGE.
kLeAdvertisingSetTerminated	Extended advertising set terminated (timeout or connection). BTstack event: HCI_EVENT_LE_META + HCI_SUBEVENT_LE_ADVERTISING_SET_TERMINATED.
kL2capConnectionParameterUpdateRequest	L2CAP connection parameter update request event. BTstack event: L2CAP_EVENT_CONNECTION_PARAMETER_UPDATE_REQUEST.
kPrivacyEnabled	Privacy enabled and ready; raised after successful configuration. BTstack: no dedicated event.

◆ Phy

enum class c7222::Gap::Phy : uint8_t

strong

LE PHY values reported in extended advertising reports.

Enumerator
kNone	No PHY specified / not available.
kLe1M	LE 1M PHY.
kLe2M	LE 2M PHY.
kLeCoded	LE Coded PHY.

Member Function Documentation

◆ AddEventHandler()

void c7222::Gap::AddEventHandler ( const EventHandler & handler )

Register an event handler.

The handler is stored as a pointer; it must outlive the Gap instance.

Here is the caller graph for this function:

◆ ClearEventHandlers()

void c7222::Gap::ClearEventHandlers ( )

Clear all registered event handlers.

Note: The handler instances are not deleted by this method. Therefore, the caller must delete the objects if they were dynamically allocated.

Here is the caller graph for this function:

◆ Disconnect()

BleError c7222::Gap::Disconnect ( ConnectionHandle con_handle )

Disconnect a connection by handle.

Here is the caller graph for this function:

◆ DispatchBleHciPacket()

virtual BleError c7222::Gap::DispatchBleHciPacket	(	uint8_t	packet_type,
		const uint8_t *	packet_data,
		uint16_t	packet_data_size
	)

virtual

Dispatch a raw HCI packet into the GAP event pipeline.

Parameters

packet_type	HCI packet type (expected HCI_EVENT_PACKET).
packet_data	Pointer to packet bytes.
packet_data_size	Packet length in bytes.

Returns: BLE error status.

◆ DispatchEvent()

virtual BleError c7222::Gap::DispatchEvent	(	EventId	event_id,
		const uint8_t *	event_data,
		uint16_t	event_data_size
	)

protectedvirtual

Dispatch a mapped GAP event to registered handlers.

Parameters

event_id	Mapped GAP event ID.
event_data	Pointer to event data bytes.
event_data_size	Event length in bytes.

Returns: BLE error status.

◆ EnableAdvertising()

void c7222::Gap::EnableAdvertising ( bool enabled )

Enable or disable advertising.

Here is the caller graph for this function:

◆ GetAdvertisementDataBuilder() [1/2]

AdvertisementDataBuilder & c7222::Gap::GetAdvertisementDataBuilder ( )

inline

Access the internal advertisement data builder.

Use this to assemble the legacy advertising payload before applying it with SetAdvertisingData().

Here is the caller graph for this function:

◆ GetAdvertisementDataBuilder() [2/2]

const AdvertisementDataBuilder & c7222::Gap::GetAdvertisementDataBuilder ( ) const

inline

Access the internal advertisement data builder (const).

◆ GetAdvertisingData()

const std::vector< uint8_t > & c7222::Gap::GetAdvertisingData ( ) const

inline

Get the advertising data payload.

Returns: Pointer to advertising data, or nullptr if not set.

Here is the call graph for this function:

◆ GetAdvertisingParameters()

bool c7222::Gap::GetAdvertisingParameters ( AdvertisementParameters & params ) const

Get the current advertising parameters.

Parameters

params Output parameters.

Returns: true if advertising parameters have been set.

◆ GetConnectionParameters() [1/2]

const std::map< ConnectionHandle, ConnectionParameters > & c7222::Gap::GetConnectionParameters ( ) const

inline

Access the cached connection parameter map.

The map is populated from connection-related events.

◆ GetConnectionParameters() [2/2]

bool c7222::Gap::GetConnectionParameters	(	ConnectionHandle	con_handle,
		ConnectionParameters &	out
	)		const

Get cached connection parameters for a handle.

Parameters

con_handle	Connection handle.
out	Parameters output.

Returns: true if parameters are known for the handle.

◆ GetEventHandlers()

std::list< const EventHandler * > c7222::Gap::GetEventHandlers ( ) const

inline

Get the list of registered event handlers.

◆ GetInstance()

static Gap * c7222::Gap::GetInstance ( )

static

Get the singleton instance.

◆ GetRandomAddress()

bool c7222::Gap::GetRandomAddress ( BleAddress & address ) const

Get the random address if set.

Parameters

address Output address.

Returns: true if a random address has been set.

◆ IsAdvertising()

bool c7222::Gap::IsAdvertising ( ) const

inline

Check if advertising is currently running on the controller.

This follows stack events and is set true after a successful OnAdvertisingStart callback, and set false before an OnAdvertisingEnd callback.

◆ IsAdvertisingDataSet()

bool c7222::Gap::IsAdvertisingDataSet ( ) const

inline

Check if advertising data has been set.

◆ IsAdvertisingEnabled()

bool c7222::Gap::IsAdvertisingEnabled ( ) const

inline

Check if advertising is currently enabled.

Here is the caller graph for this function:

◆ IsAdvertisingParametersSet()

bool c7222::Gap::IsAdvertisingParametersSet ( ) const

inline

Check if advertising parameters have been set.

◆ IsConnected()

bool c7222::Gap::IsConnected ( ) const

inline

Check if a connection is active.

Here is the caller graph for this function:

◆ IsRandomAddressSet()

bool c7222::Gap::IsRandomAddressSet ( ) const

inline

Check if a random address has been set.

◆ IsScanResponseDataSet()

bool c7222::Gap::IsScanResponseDataSet ( ) const

inline

Check if scan response data has been set.

◆ ReadRssi()

BleError c7222::Gap::ReadRssi ( ConnectionHandle con_handle )

Read the RSSI for a connection.

Here is the caller graph for this function:

◆ RemoveEventHandler()

bool c7222::Gap::RemoveEventHandler ( const EventHandler & handler )

Unregister an event handler.

Returns: true if the handler was found and removed.

Note: Handlers are compared by pointer address. If multiple identical handlers were added, only the first is removed.; Removing a handler that was not registered has no effect.; Do not remove handlers while iterating through the handler list (e.g. during event dispatch). It is NOT safe to remove handlers from within event callbacks.; The handler instance is not deleted by this method. Therefore, the caller must delete the object if it was dynamically allocated.

Here is the caller graph for this function:

◆ RequestConnectionParameterUpdate()

BleError c7222::Gap::RequestConnectionParameterUpdate	(	ConnectionHandle	con_handle,
		const PreferredConnectionParameters &	params
	)

Request a connection parameter update (peripheral role).

Here is the caller graph for this function:

◆ scan_response_data()

const std::vector< uint8_t > & c7222::Gap::scan_response_data ( ) const

inline

Get the scan response data payload.

Returns: Pointer to scan response data, or nullptr if not set.

◆ SetAdvertisingData() [1/4]

void c7222::Gap::SetAdvertisingData ( )

inline

Set legacy advertising data payload from the internal builder.

Asserts that the builder contains at least one AD structure and validates.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAdvertisingData() [2/4]

void c7222::Gap::SetAdvertisingData ( const AdvertisementDataBuilder & data_builder )

Set legacy advertising data payload from an AdvertisementDataBuilder.

Parameters

data_builder AdvertisementDataBuilder instance containing the payload.

Note: The data from the builder is copied.

◆ SetAdvertisingData() [3/4]

void c7222::Gap::SetAdvertisingData ( const std::vector< uint8_t > & data )

inline

Set legacy advertising data payload from a vector.

Parameters

data	Advertising data payload.

Here is the call graph for this function:

◆ SetAdvertisingData() [4/4]

void c7222::Gap::SetAdvertisingData	(	const uint8_t *	data,
		size_t	size
	)

Set legacy advertising data payload.

The payload is copied into the internal advertisement data builder and then applied to BTstack immediately.

Here is the caller graph for this function:

◆ SetAdvertisingParameters()

void c7222::Gap::SetAdvertisingParameters ( const AdvertisementParameters & params )

Configure legacy advertising parameters.

Here is the caller graph for this function:

◆ SetLocalAddress()

void c7222::Gap::SetLocalAddress ( BleAddress & address )

Read the local device address.

◆ SetRandomAddress()

void c7222::Gap::SetRandomAddress ( const BleAddress & address )

Set a fixed random address for advertising.

Here is the caller graph for this function:

◆ SetScanResponseData()

void c7222::Gap::SetScanResponseData	(	uint8_t	length,
		const uint8_t *	data
	)

Set scan response data payload (ADV_SCAN_IND).

Here is the caller graph for this function:

◆ StartAdvertising()

void c7222::Gap::StartAdvertising ( )

Convenience helpers for starting/stopping advertising.

Here is the caller graph for this function:

◆ StopAdvertising()

void c7222::Gap::StopAdvertising ( )

Here is the caller graph for this function:

◆ UpdateConnectionParameters()

BleError c7222::Gap::UpdateConnectionParameters	(	ConnectionHandle	con_handle,
		const PreferredConnectionParameters &	params
	)

Update connection parameters (central role).

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

libs/elec_c7222/ble/gap/include/gap.hpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Design Logic

Advertising Configuration (Legacy)

Applying Configurations and Utilities

Dynamic Data Updates

Limitations / Future Work

Complete Code Example (Peripheral / Advertising)

Minimal Event-Only Example (e.g., central role)

Member Enumeration Documentation

◆ AdvertisingChannelMap

◆ AdvertisingEventType

◆ AdvertisingFilterPolicy

◆ AdvertisingType

◆ DirectAddressType

◆ EventId

◆ Phy

Member Function Documentation

◆ AddEventHandler()

◆ ClearEventHandlers()

◆ Disconnect()

◆ DispatchBleHciPacket()

◆ DispatchEvent()

◆ EnableAdvertising()

◆ GetAdvertisementDataBuilder() [1/2]

◆ GetAdvertisementDataBuilder() [2/2]

◆ GetAdvertisingData()

◆ GetAdvertisingParameters()

◆ GetConnectionParameters() [1/2]

◆ GetConnectionParameters() [2/2]

◆ GetEventHandlers()

◆ GetInstance()

◆ GetRandomAddress()

◆ IsAdvertising()

◆ IsAdvertisingDataSet()

◆ IsAdvertisingEnabled()

◆ IsAdvertisingParametersSet()

◆ IsConnected()

◆ IsRandomAddressSet()

◆ IsScanResponseDataSet()

◆ ReadRssi()

◆ RemoveEventHandler()

◆ RequestConnectionParameterUpdate()

◆ scan_response_data()

◆ SetAdvertisingData() [1/4]

◆ SetAdvertisingData() [2/4]

◆ SetAdvertisingData() [3/4]

◆ SetAdvertisingData() [4/4]

◆ SetAdvertisingParameters()

◆ SetLocalAddress()

◆ SetRandomAddress()

◆ SetScanResponseData()

◆ StartAdvertising()

◆ StopAdvertising()

◆ UpdateConnectionParameters()
