main_ble_gap.cpp File Reference

Minimal BLE GAP example (FreeRTOS). More...

#include <cassert>
#include <cstdint>
#include <cstdio>
#include "advertisement_data.hpp"
#include "../common/gap_event_handler.hpp"
#include "ble.hpp"
#include "freertos_task.hpp"
#include "gap.hpp"
#include "onboard_led.hpp"
#include "pico/stdlib.h"
#include "platform.hpp"

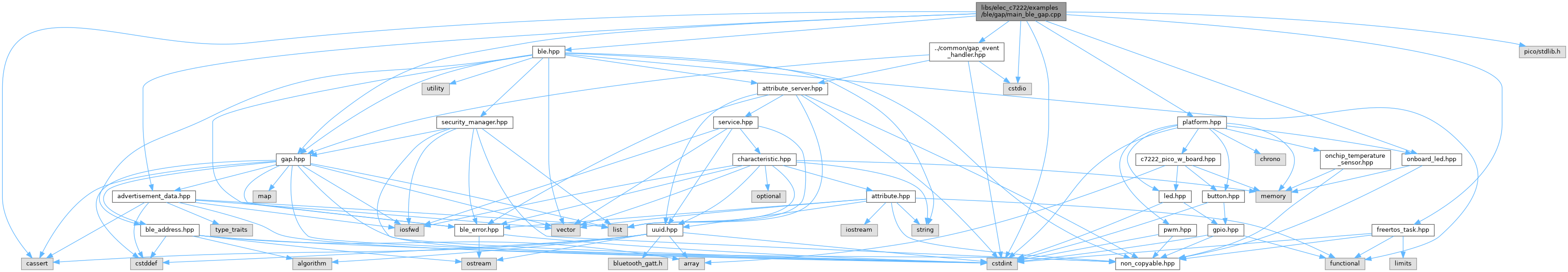

Include dependency graph for main_ble_gap.cpp:

Functions
static void	on_turn_on ()
	Callback executed when the BLE stack is fully initialized.
void	ble_app_task (void *params)
	FreeRTOS task that owns BLE initialization and periodic updates.
int	main ()
	Program entry point.

Variables
static c7222::OnBoardLED *	onboard_led = nullptr
	On-board LED used as a heartbeat while advertising.
static c7222::Platform *	platform = nullptr
	Platform abstraction (initializes CYW43/BTstack).
static GapEventHandler	gap_event_handler
	Common GAP event handler used for logging.

Detailed Description

Minimal BLE GAP example (FreeRTOS).

This example focuses purely on GAP functionality: setting up advertising, registering a GAP event handler, and periodically updating manufacturer data.

Dependencies:

• GapEventHandler from examples/ble/common/gap_event_handler.hpp is used to log GAP events (advertising, scanning, connections). It provides a lightweight, reusable handler for examples.
• c7222::Ble and c7222::Gap encapsulate BTstack and provide the APIs for advertising and data updates.
• c7222::OnBoardLED provides a visible heartbeat while advertising.
• c7222::FreeRtosTask wrapper is used for task lifecycle and delay/tick helpers.

Function Documentation

ble_app_task()

void ble_app_task

(

void *

params

)

FreeRTOS task that owns BLE initialization and periodic updates.

Initializes the BLE stack, registers the stack-on callback, then periodically refreshes manufacturer data while advertising is enabled. The LED toggles as a heartbeat to confirm the task is running.

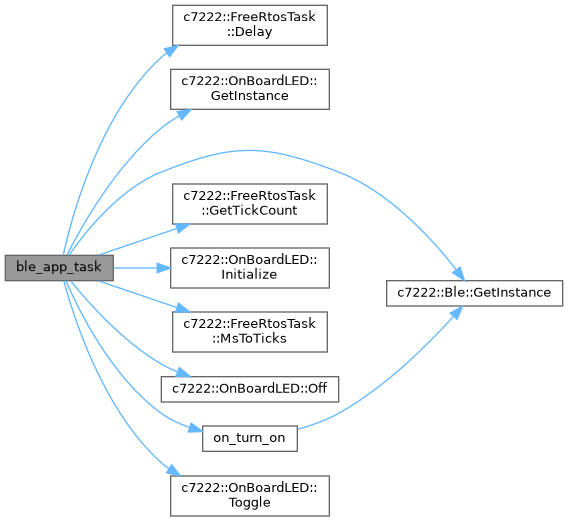

Here is the call graph for this function:

Here is the caller graph for this function:

main()

int main

(

void

)

Program entry point.

Here is the call graph for this function:

on_turn_on()

static void on_turn_on ( )

static

Callback executed when the BLE stack is fully initialized.

Steps:

• Attach a GAP event handler for logging.
• Configure flags and device name.
• Add a manufacturer-specific payload.
• Start advertising with a fixed interval range.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

gap_event_handler

GapEventHandler gap_event_handler

static

Common GAP event handler used for logging.

onboard_led

c7222::OnBoardLED* onboard_led = nullptr

static

On-board LED used as a heartbeat while advertising.

platform

c7222::Platform* platform = nullptr

static

Platform abstraction (initializes CYW43/BTstack).
